The BalancedHome® Elite Energy Recovery Ventilator (ERV) keeps your home fresh and comfortable by bringing in fresh air while exhausting stale air. Independent supply and exhaust settings ranging from 30 to 120 CFM provide balanced ventilation while recovering energy from the exchanged air. Add an optional manual boost switch/timer to achieve up to 120 CFM on demand. This ERV is engineered for use in any temperate North American climate zone.

• ENERGY STAR® Certified

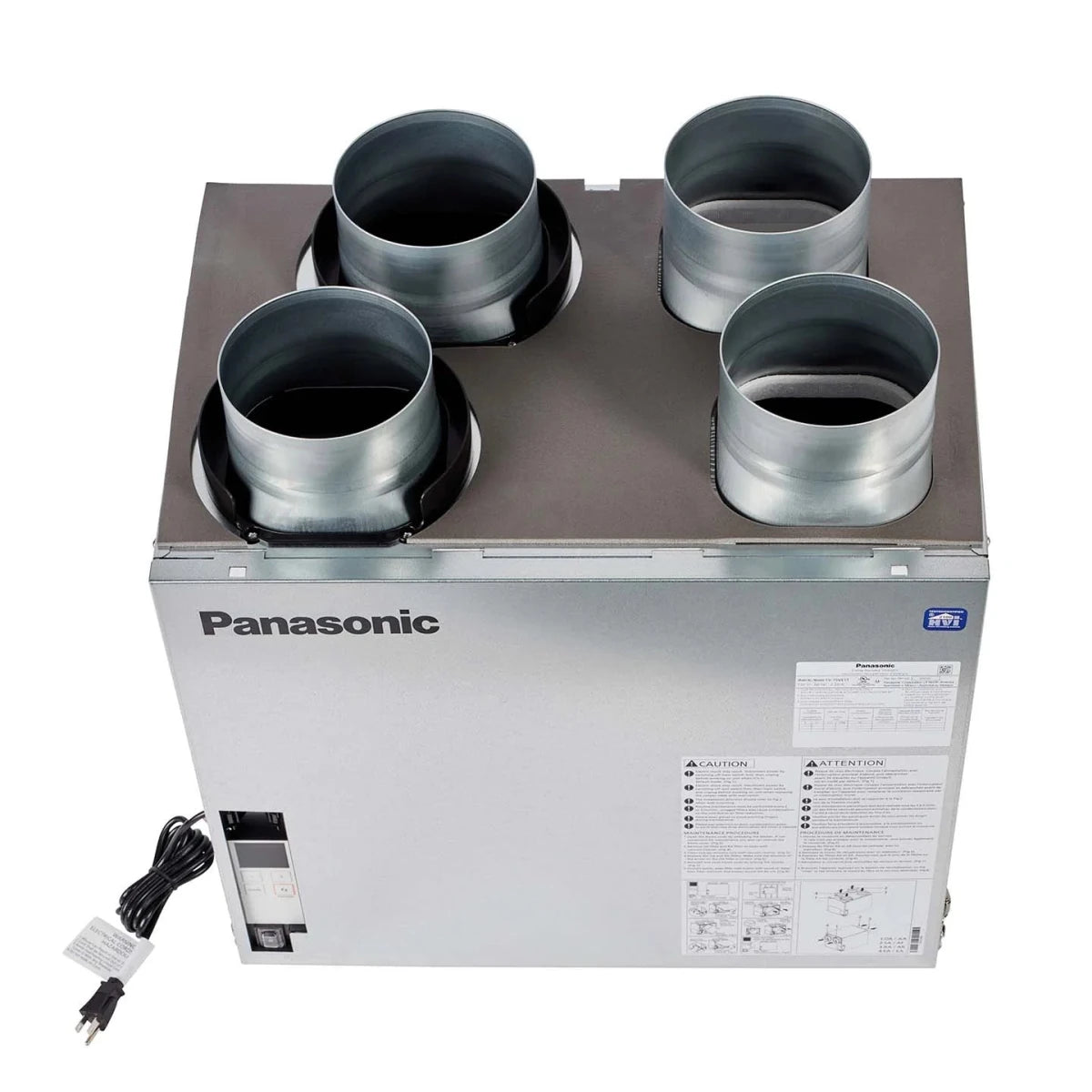

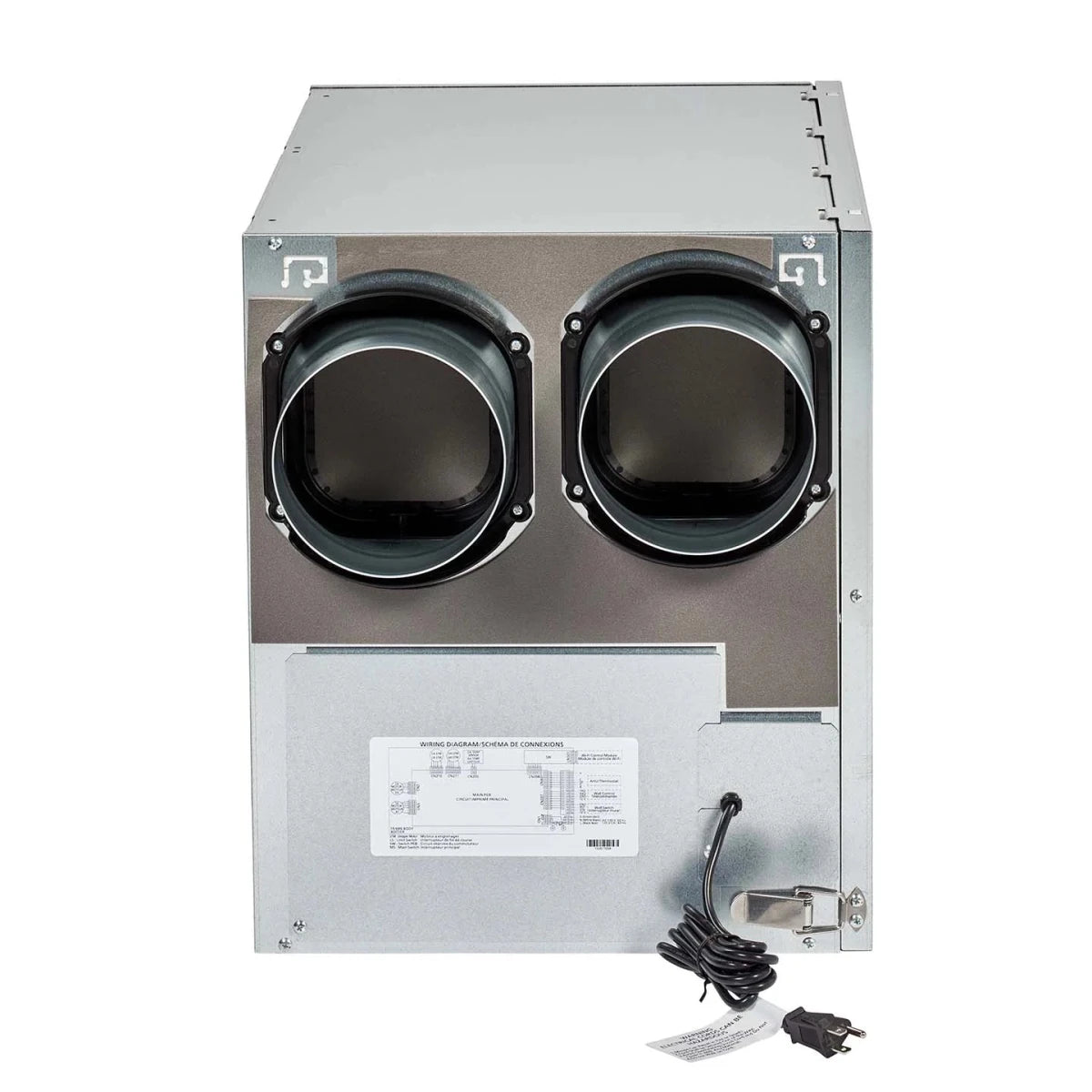

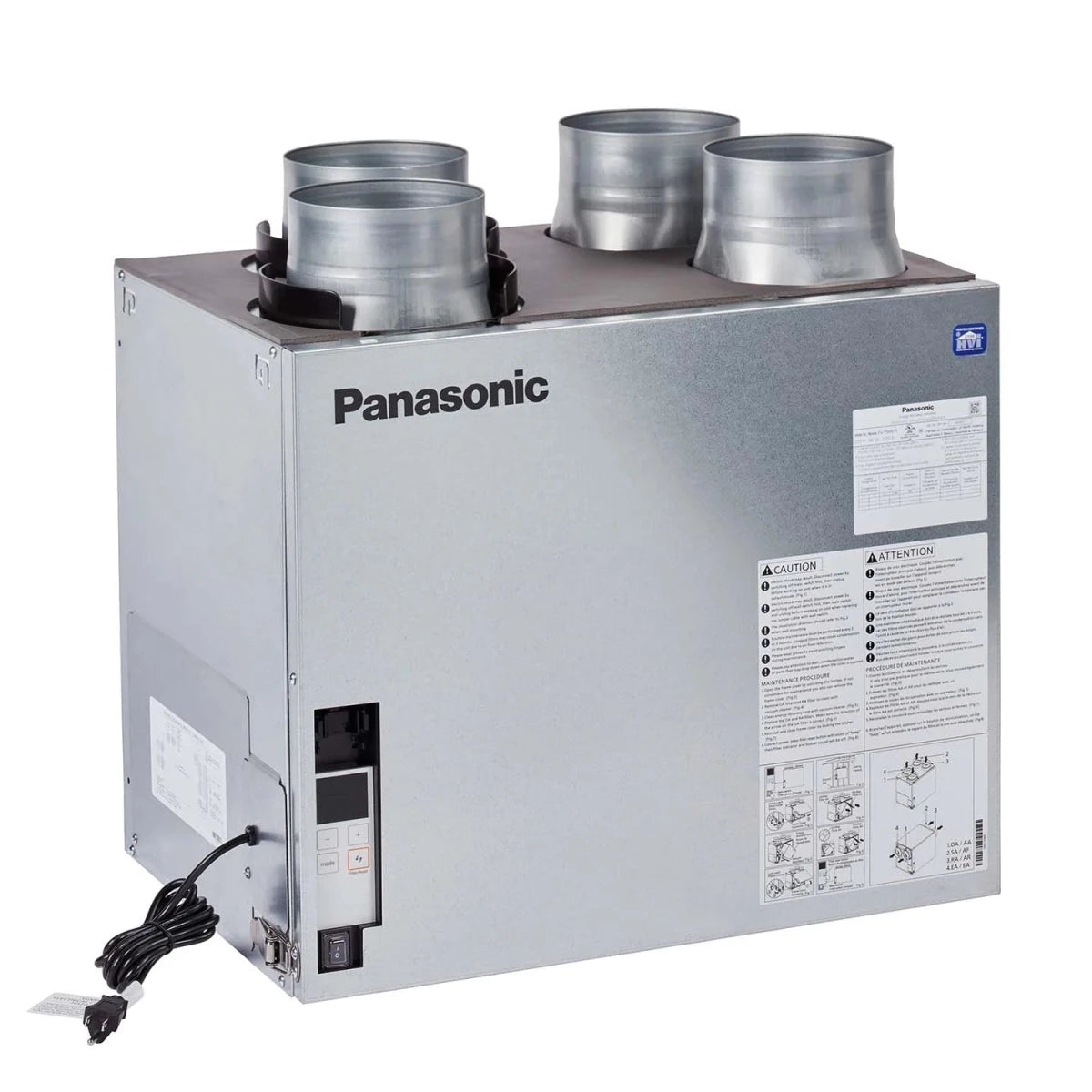

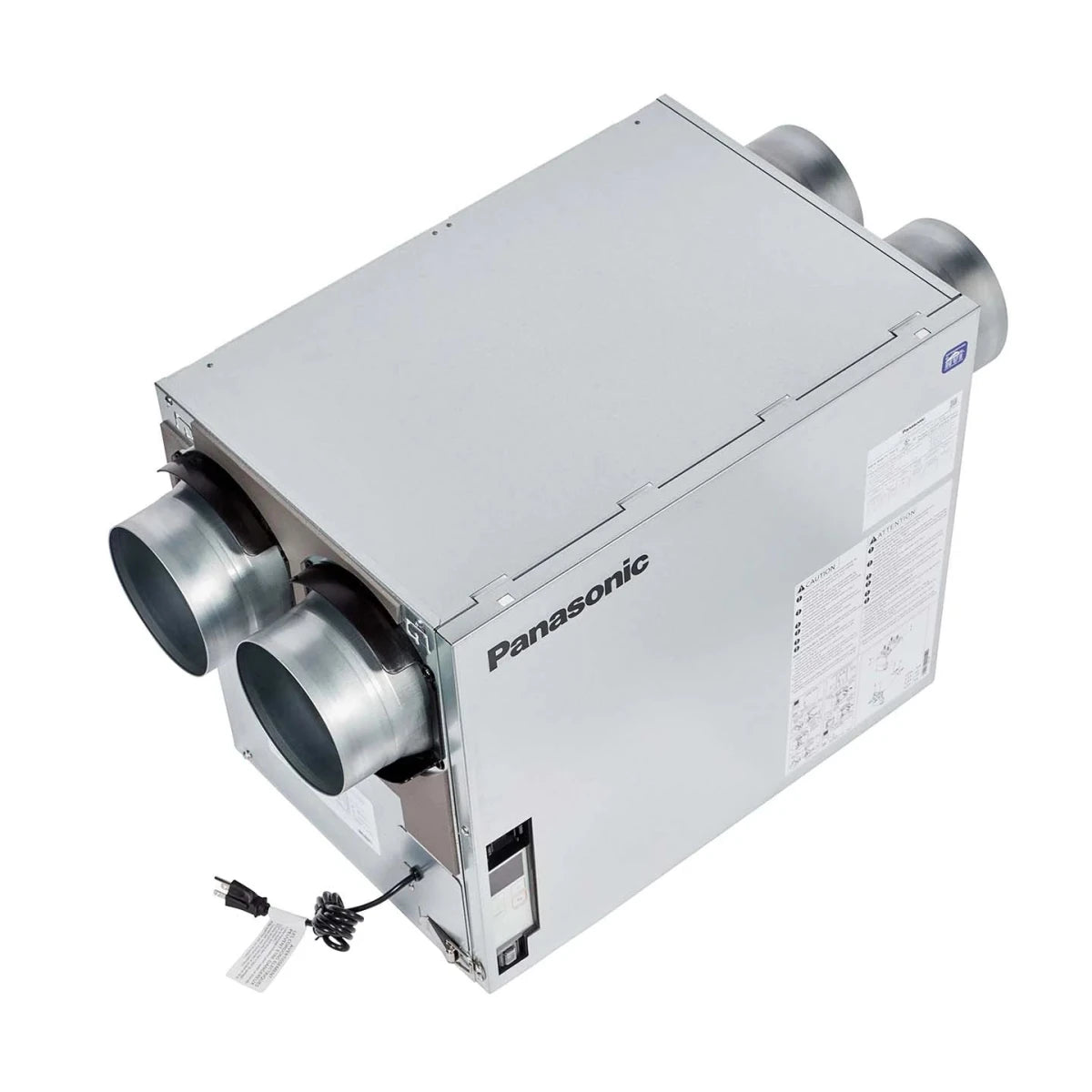

• Side Port: FV-12VE1S / Top Port: FV-12VE1T
• Max fan speed of 120 CFM
• Smart Flow® technology ensures consistent airflow
• SRE up to 76% (FV-12VE1T, FV-12VE1S) complies with IECC Code requirements, temperate climates
• Two (2) DC-enclosed ECM brushless motors rated for continuous run.
• Power rating 120V/60hz, 2.4 amps

• Four 6" horizontal oriented ducts for supply, exhaust, room air, and room return air
• MERV 8 filter (FV-FL0815VE1) included
• Replacement MERV 13 (FV-FL1316VE1) and washable MERV 6 (FV-FL0616VE1) available
• Panasonic’s hygroscopic core balances humidity between indoor/outdoor airflows
• Filter maintenance indicator on the ERV notifies user when filter maintenance is required
• All models are equipped with a standard power cord and include a hardwire conversion kit
• Wall Control/Fault Indicator Display (FID) FV-SC16VEC1 (sold separately).

Warranty:  6 years on ECM motors and 3 years on all other parts from the original purchase date

Documents:
Installation & Operating Manual - ERV - BalancedHome® Series
Spec Sheet - ERV - BalancedHome® - FV-12VE1S
Spec Sheet - ERV - BalancedHome® - FV-12VE1
