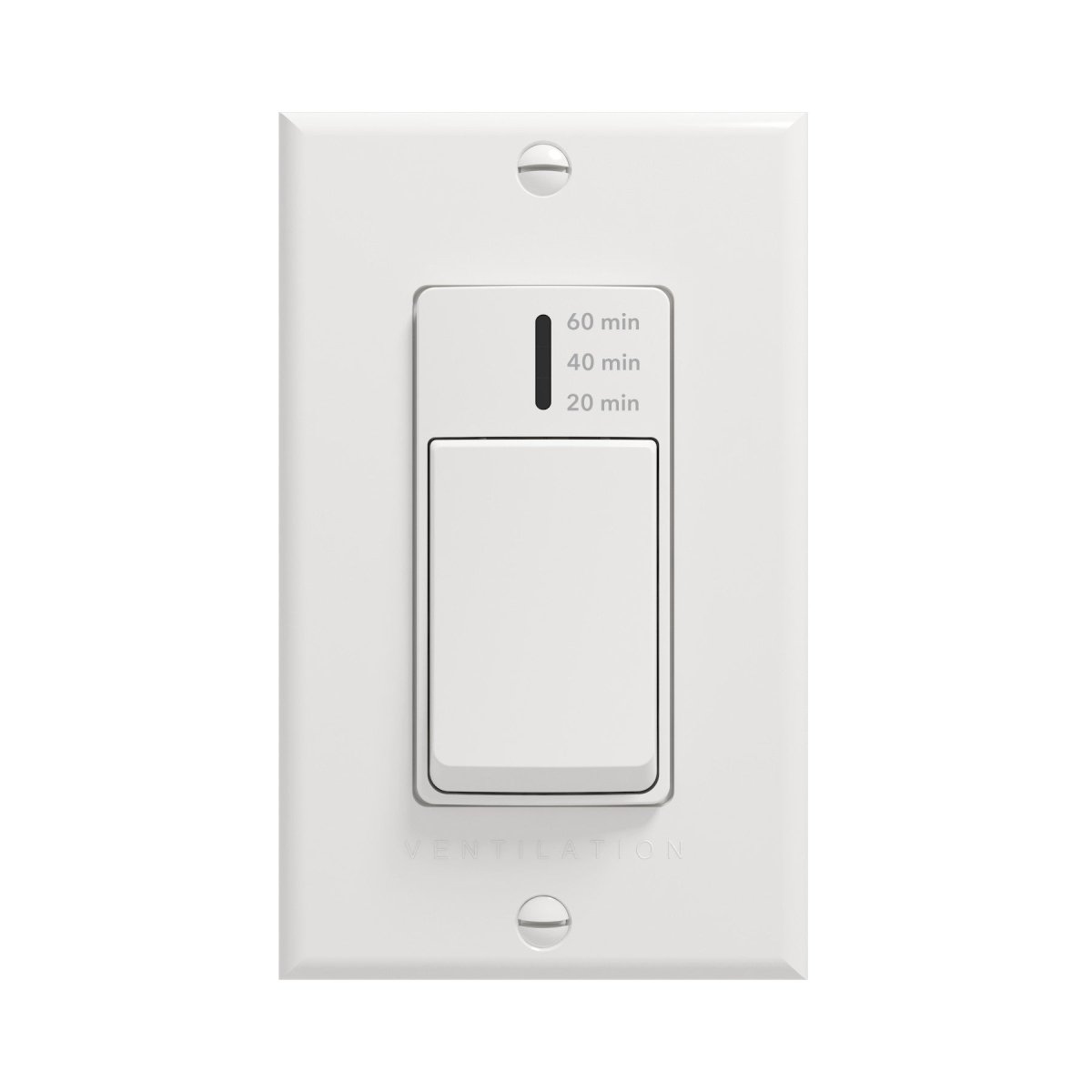

Broan 20-40-60 Minute Timer 41100

Broan 20-40-60 Minute Timer 41100

$52.00 CAD
$54.00 CAD $52.00 CAD
Sale Request a Quote
Shipping calculated at checkout.

The 20-40-60 Control is for installation in a bathroom, a laundry room or a workshop. This auxiliary wall control can be installed with any main control of the N and AI series.

  • Manufacturer: Venmar Ventilation ULC
  • Model Series: vanEE AI Series
  • Model Description: 20-40-60 min. Bathroom timer (4-Wire)
  • Manufacturers’ NEW Part Number: 41100
  • Manufacturers’ OLD Part Number: 41300
  • Compatibilty: Broan AI Series

Features:

  • MAX speed exchange ventilation for 20, 40 or 60 minutes.
  • New modern design that blends with the most contemporary decors.
  • It is possible to install up to 7 auxiliary controls 41100 with an N or AI Series main control
Note these new 41100 timers are not compatible with the old style 1806110 or 03701 (3-WIRES) timers.
  • You cannot mix and match the timers on the same unit.
  • They either all must be the old style, or all must be 41100
NOTE If you have the older Venmar terminal block,  wiring is as follows:
  • B >>> GND
  • OL >>> OVR
  • OC >>> 12V

The new timers can be hooked up with 3 or 4 wires. The lighting will work differently if using only 3 wires. On the terminal block of the air exchanger, remove the wire plugged into 'I' and move it to 'B'. If there is already something plugged into 'B', you will have to splice that wire with the wire you just removed from 'I'. Once that is done, you will plug in as follow: B= GRND, OL= OVR, OC = 12V.
