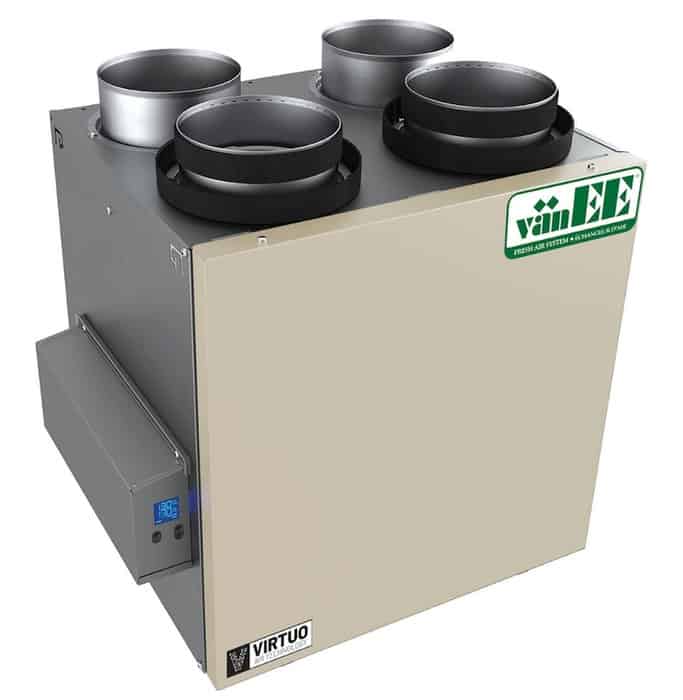

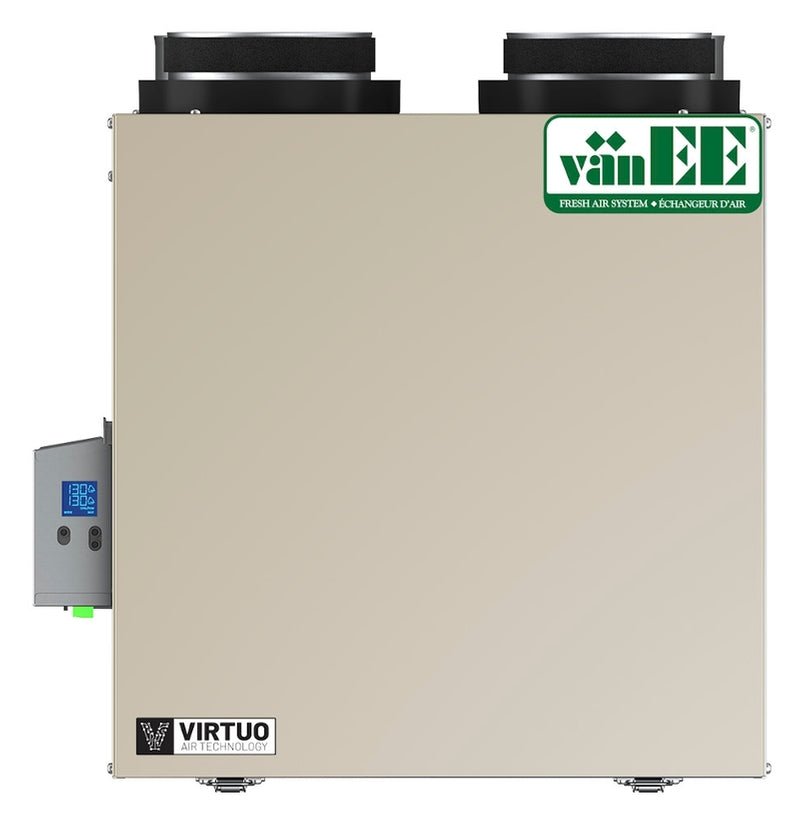

vanEE AI Series V160H75RT HRV (Top Ports) - 160 CFM

A NEW ERA FOR AIR EXCHANGERS, DRIVEN BY VIRTUO AIR TECHNOLOGY Introducing VANEE AI SERIES V160H75RT, the industry’s most advanced residential air exchanger, created to offer you much more than a standard Heat Recovery Ventilator (HRV) or Energy Recovery Ventilator (ERV). The AI Series features a universal platform that works with every conceivable type of dwelling, simplifying the installation while delivering superior air quality, and comes standard with Virtuo Air Technology.

VIRTUO AIR TECHNOLOGY Introducing Virtuo Air Technology^TM, the first air exchanger artificial intelligence that allows airflow verification, auto-balancing, and self-adjusting to changing indoor and outdoor conditions. With Virtuo, you can rely on a smart algorithm to ensure optimal indoor air quality. When a pressure change occurs, Virtuo detects it and instantly adjusts the air exchanger’s operation to consistently deliver the proper amount of fresh air with minimal energy consumption. Staying 100% balanced. Always!

HIGH STANDARD DESIGN The AI Series is equipped with ECM PMSM motors, the most efficient & reliable motor on the market. It comes with standard MERV 8 filtration or optional MERV 13 filtration. It includes the new universal brackets and chains for a flexible and faster installation.

• Thanks to the Virtuo Air TechnologyTM, the airflow calibration and auto-balancing are achieved quickly and maintained throughout the life of the product
• Select the desired CFM (from 35 to 159 CFM) using the very first integrated LCD screen, The airflow is then set up automatically

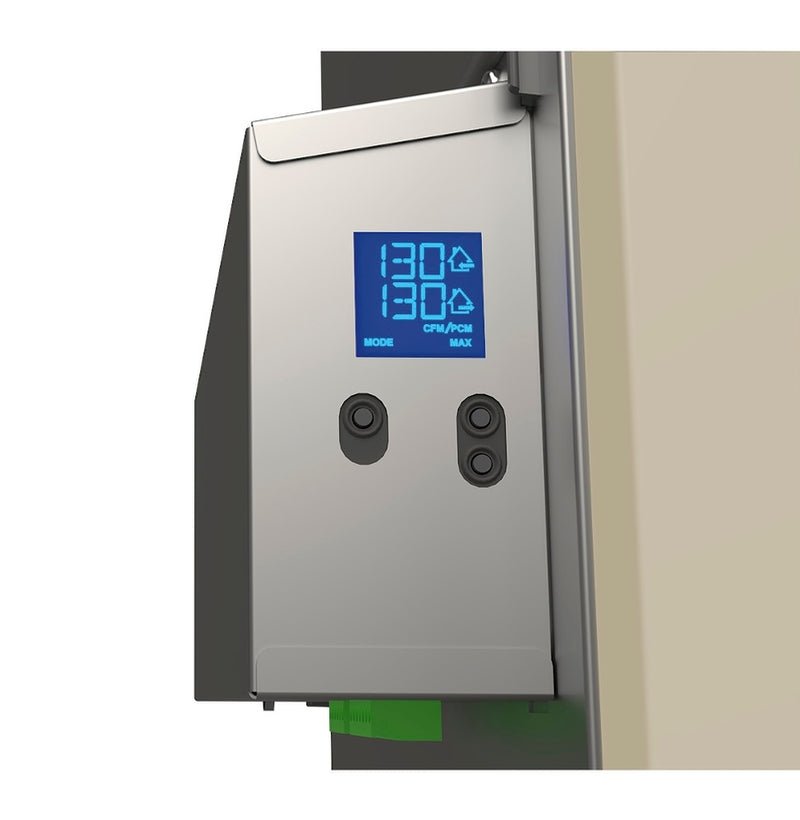

• Integrated electronic airflow measurement device with real time LCD
• Integrated diagnostic tool
• Come with PMSM ECM motors for a very low power consumption
• Suspended installation (chains included) or Wall-mount installation with 2 brackets or 4 brackets installation (universal brackets included)

Specs Sheet

Installation Guide
