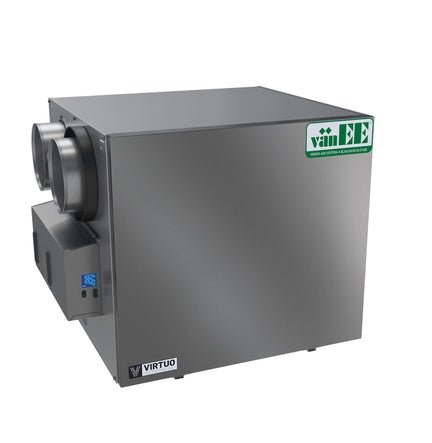

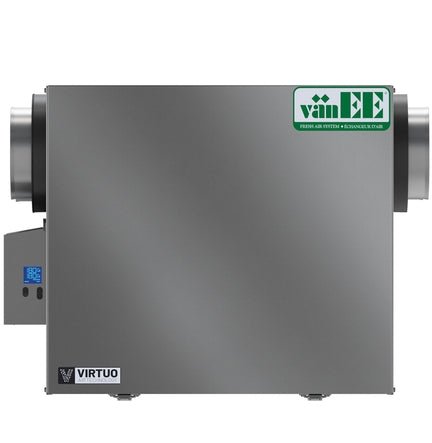

Broan AI Series V230H75RS HRV is the leader in residential indoor air quality, this Broan HRV features VIRTUO™ technology providing the easiest installation on the market. This fresh air system has the quickest installation in its category saving the installer up to 20 minutes, thanks to auto-balancing and self-adjusting technology.  The built-in LCD screen provides real-time airflows, and power consumption and acts as a diagnostic error tool.

Delivering 230 CFM the powerful, efficient, and proprietary blower fan motors make it the ideal solution for larger homes. Installing a Heat Recovery Ventilator (HRV) improves the indoor air quality of your home by providing a supply of tempered, filtered outdoor fresh air while exhausting the stale polluted air from your home, leaving the air healthier and more comfortable. The standard MERV 8 filter offers a more effective design than units in the market with a larger capture area and will save the homeowner money with the reusable, easy-to-wash design.

Broan AI Series V230H75RS HRV Features

• Quick setup with VIRTUO™ technology, which does the airflow verification and balancing for you, eliminating a complex part of the installation process. Set it and forget it
• Consistent results with airflow verification, auto-balancing, and self-adjustment technology maintain the quality of initial configuration in all dwelling types
• Installing a Heat Recovery Ventilator (HRV) improves the indoor air quality of your home by providing a supply of tempered, filtered outdoor fresh air while exhausting the stale polluted air from your home, leaving the air healthier and more comfortable
• Equipped with powerful and energy-efficient ECM PMSM motors delivering up to 231 CFM. Our proprietary design is the most reliable on the market
• Superior HRV core performance and durability reaching up to 78% SRE 0°C at 66 CFM and Certified at 67% SRE -25°C at 81 CFM
• Delivers superior air quality with an included MERV 8 filter and optional high filtration available

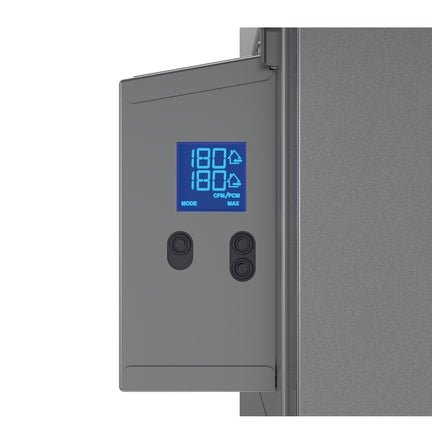

• Integrated LCD screen to easily set the desired CFM. Display real-time airflows, and power consumption and act as a diagnostic error tool
• Universal platform offers both top & side port configurations to accommodate different installation locations (180 CFM models only available in top ports)
• Suspended installation (chains included) or Wall-mount installation with 2 or 4 brackets (universal brackets included)
• Compatible with a wide range of modern and user-friendly controls to meet specific needs and different applications
• Certified ENERGY STAR®
• Ports size: 6"
• Recirculation defrost
• Corrosion resistant galvanized steel door and cabinet
• One-piece molded insulation shell, no air leakage (expanded polystyrene; UL 94 HF-1 certified)
• Virtuo constant airflow and auto-balancing device (patent pending)
• Motorized dampers (no additional backdraft dampers required)
• Integrated "snap-in" drain system installed in seconds with no additional parts (drain hose included)
• Recirculate air within the dwelling with recirculation mode using a main wall control
• 6’ power cord
• Unit electrical characteristics:120 volts, 60 Hz, 3.6 A, 270 W
• Light Commercial applications possible (refer to installation manual)
