Broan ONE Energy Recovery Ventilator (ERV) - 155 CFM
Broan ONE Energy Recovery Ventilator (ERV) - 155 CFM

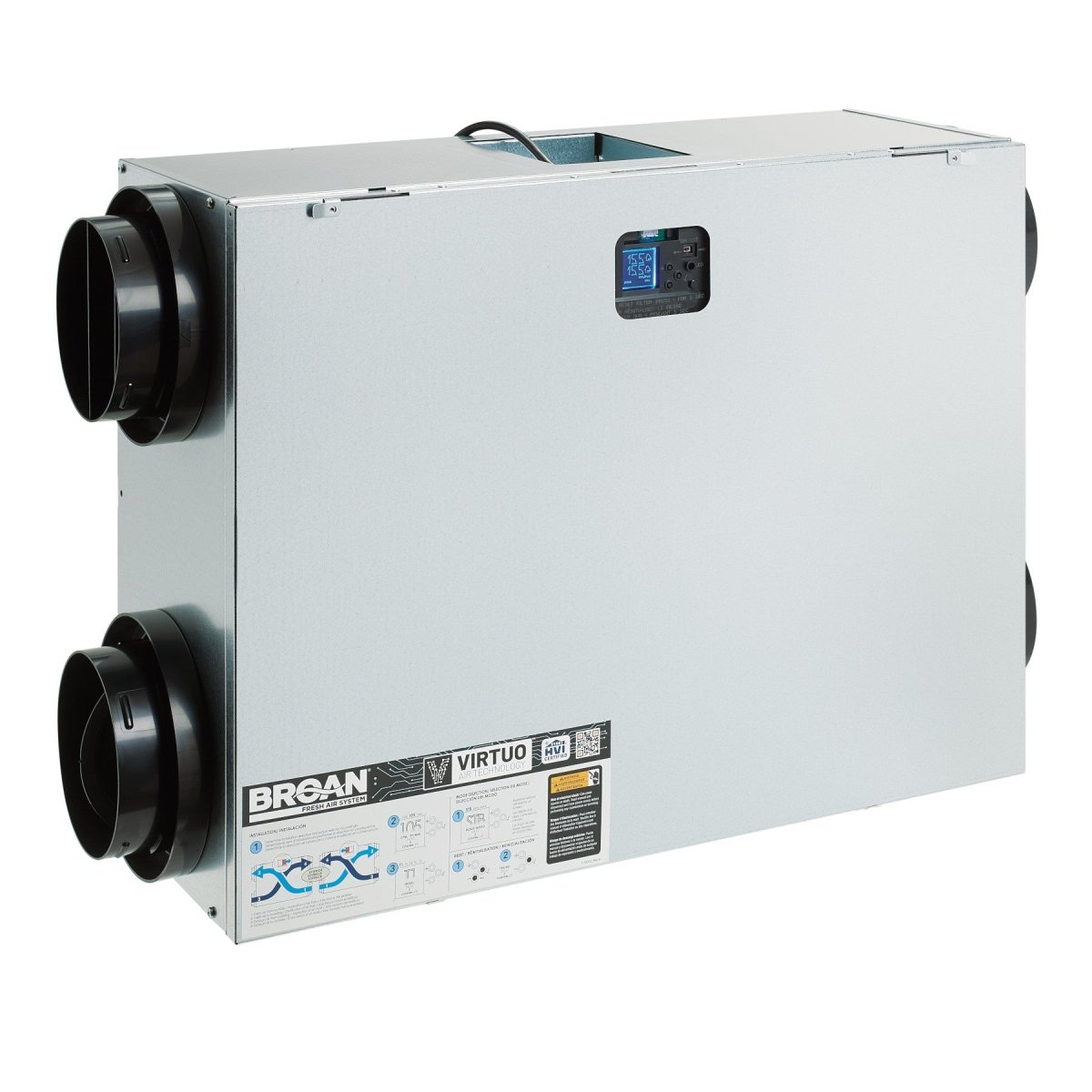

Broan ONE Energy Recovery Ventilator (ERV) - BLP150E75NS-PC

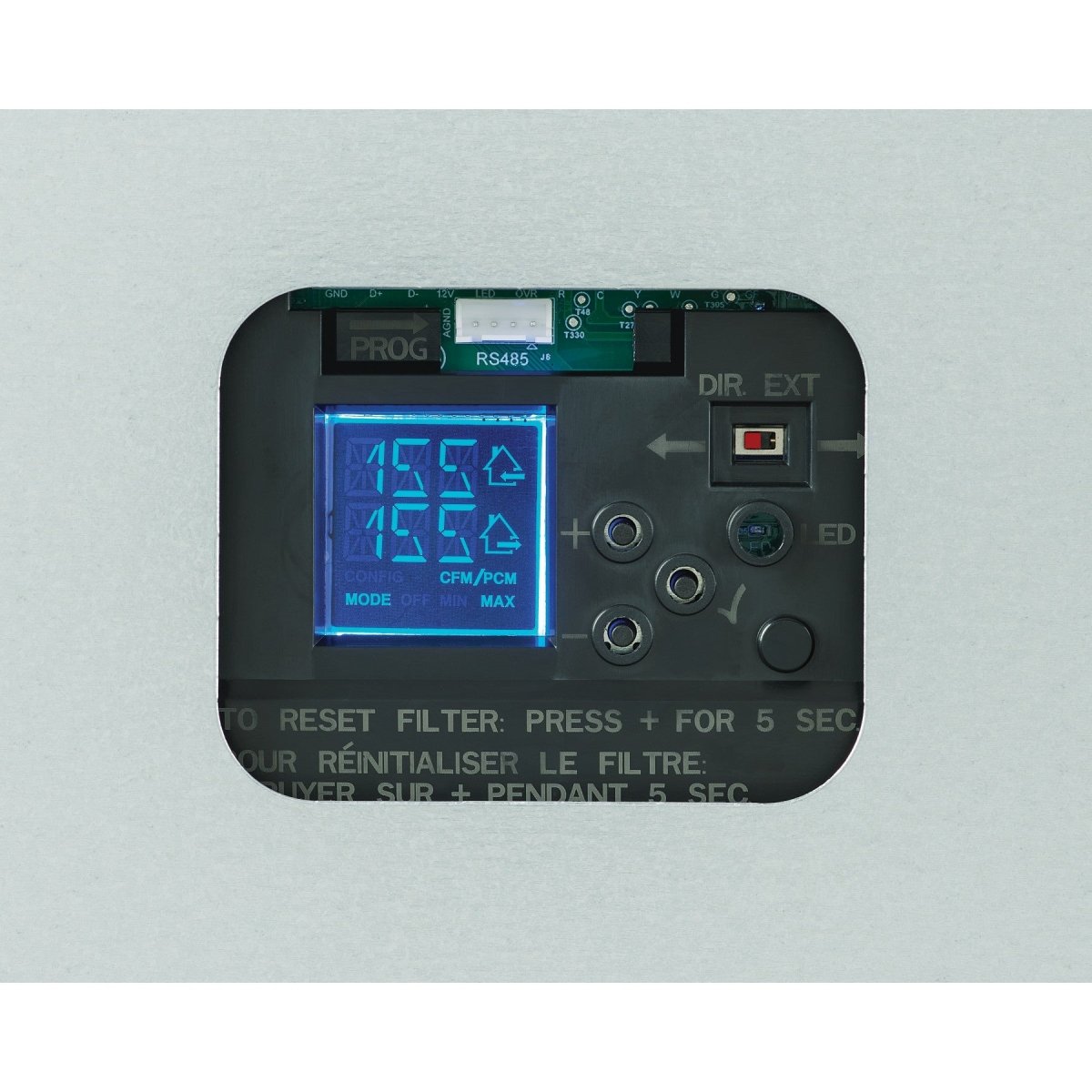

The industry’s most versatile and advanced fresh air system, created to simplify the design, specification, and installation process while delivering superior air quality in a low-profile design. Featuring the quickest installation in its category, saving the installer up to 20 minutes per unit, thanks to the auto-balancing and self-adjusting VIRTUO™ Technology. The airflow configuration can be swapped with the flip of an integrated selection switch, eliminating the need to specify different models to accommodate mirrored floor plans and providing simplicity throughout the design and installation processes. The integrated LCD screen provides intuitive CFM selection in 1 CFM increments throughout the airflow range, providing real-time CFM and watt usage values. Horizontal and wall mount options provide location flexibility to accommodate various application needs.
Hardwired model is also available -- Model BLP150E75NS-HW Available only in the US.
Specifications:
| Voltage | 120 |
|---|---|
| Min/max continuous airflow (CFM at 0.2 in. w.g.) | 35 - 155 CFM |
| Sensible recovery efficiency at 32°F | 84% (36 CFM) |
| Apparent sensible efficiency at 32°F | 87% |
| Product Height | 9.97 |
| Product Width | 20.94 |
| Product Length | 32 |
| Product Weight (Lbs) | 39 |

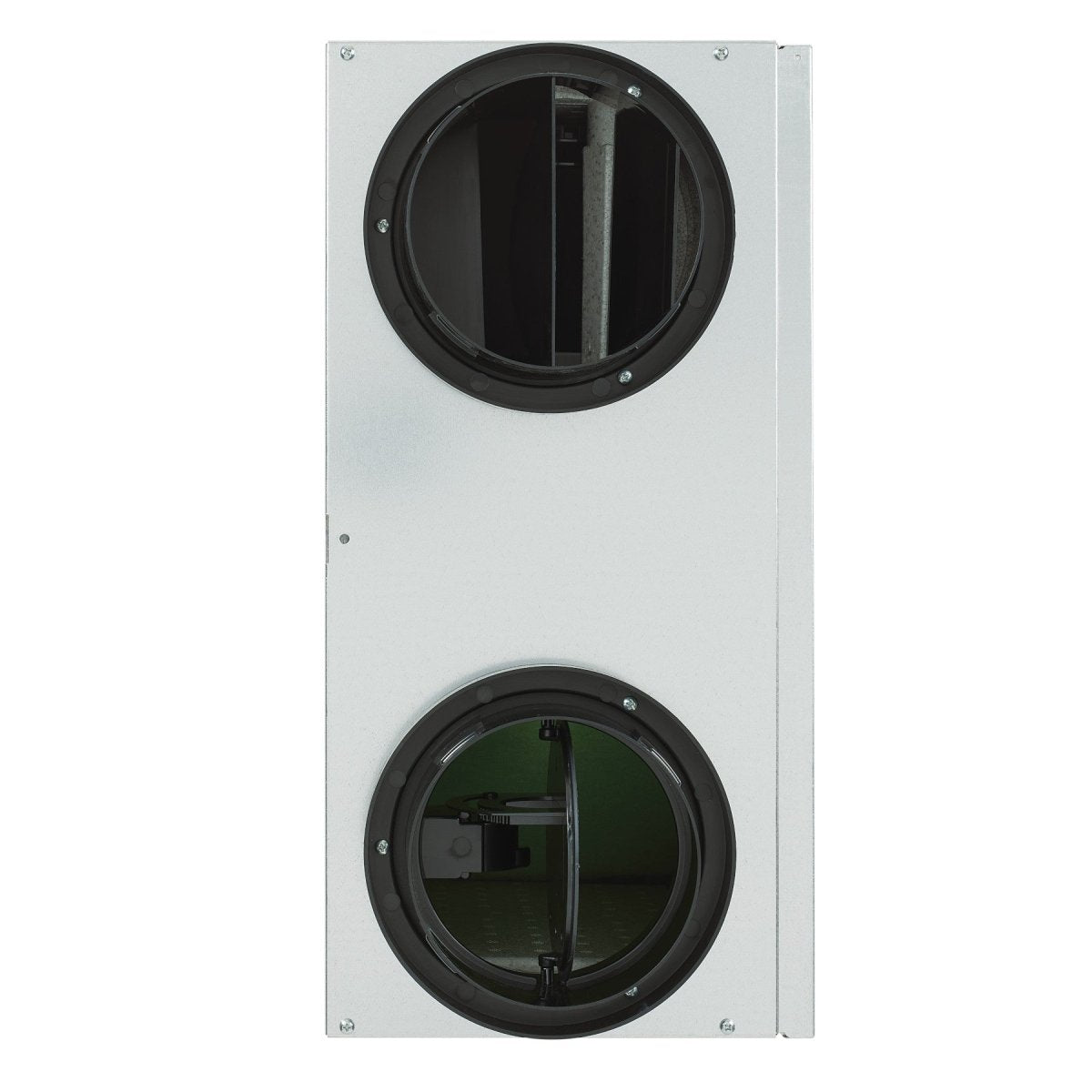

| Ports Location | Side |
| Ports Size | 6" |
| Core Type | ERV |
| Defrost Type | Exhaust |
| Filtration Level | MERV 8 |
| ENERGY STAR® certified | No |
| HVI Certified | Yes |
| cUL Listed | Yes |
| UL Listed | No |
| Core Warranty | 5 years |
| Parts Warranty | 5 years |
| Power Type | Power Cord |
