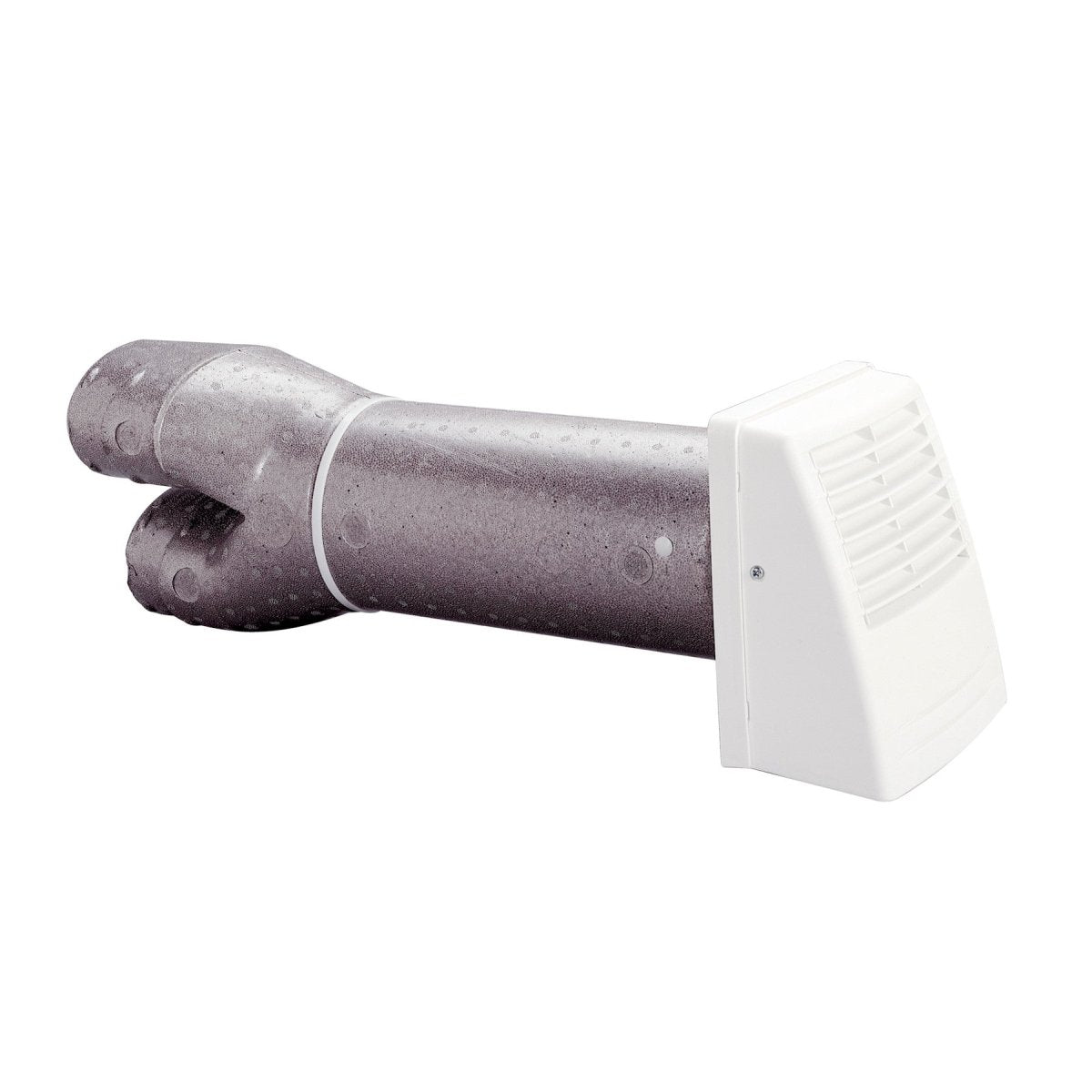

Broan Tandem Transition Kit VTYIK1

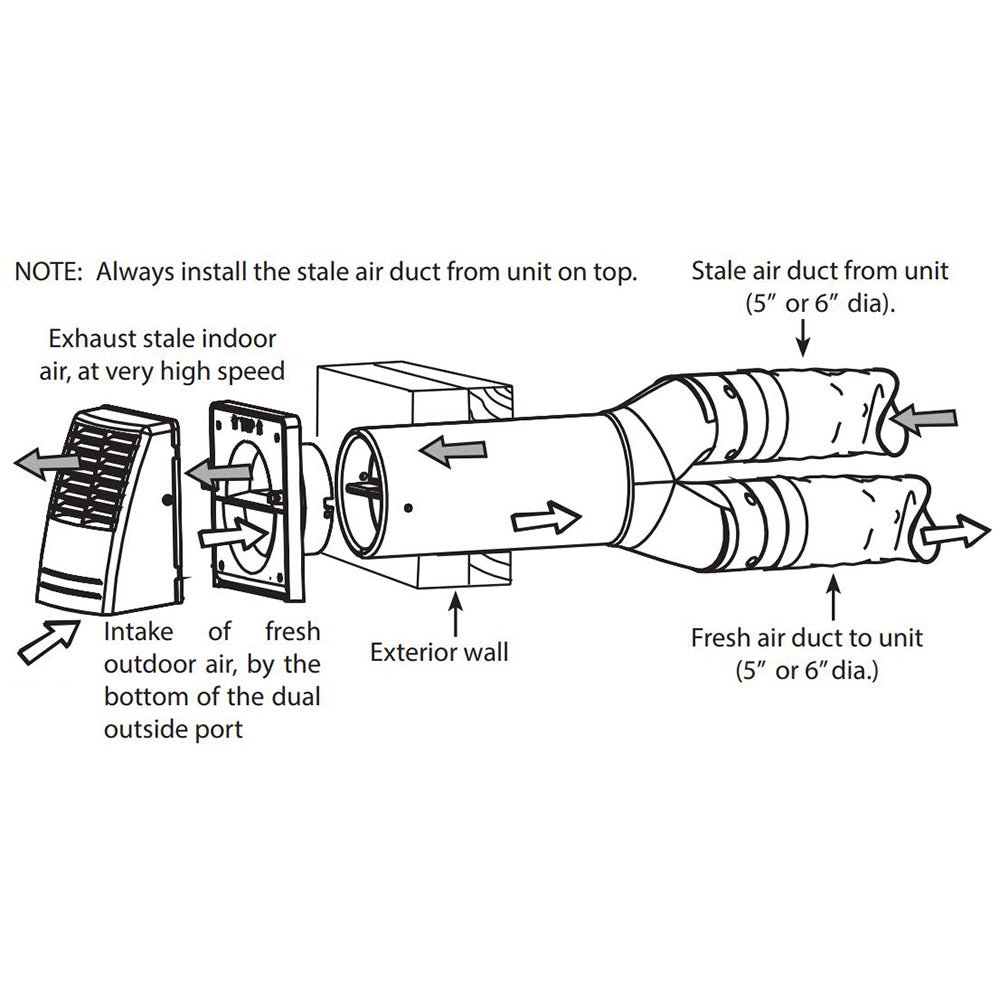

The revolutionary design of the Dual Exterior Hood Kit simplifies the installation because there is only one hole to cut in the exterior wall. In fact, every installer knows that locating efficiently one outside port is easier (and faster) than locating two. And moreover, there is almost no cross-contamination between the exhaust and intake airflows.

Features

•  High-Capacity Performance: Compatible with H/ERV units delivering up to 160 CFM at 0.4 in. w.g. For optimal sound performance during override boost operation, select the DIS option for OVR on AI Series and VIRTUO-equipped H/ERV models.

•  Simple Installation: Requires only one 6” diameter hole in the exterior wall.

•  Lightweight & Compact: Handy design using lightweight materials.

•  Fast Setup: Completes outside connection in half the time.

•  Sleek Design: Aesthetic white polypropylene dual outside port.

•  Certified Compliance: Meets CSA F326, ASHRAE 62.2-2016/2019 Section 6.8 Exception 4, and 2022 revision Section 6.6 Exception 4.

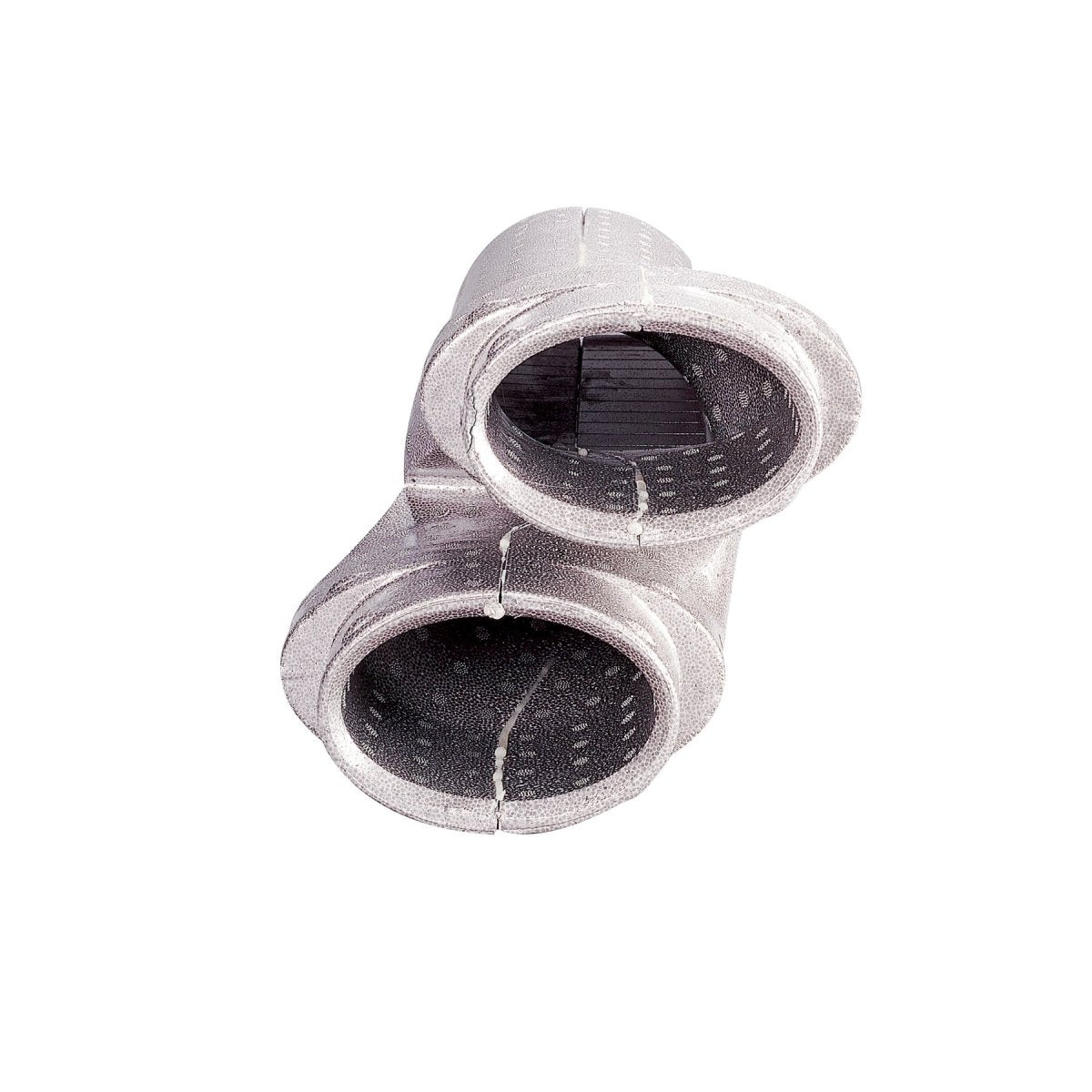

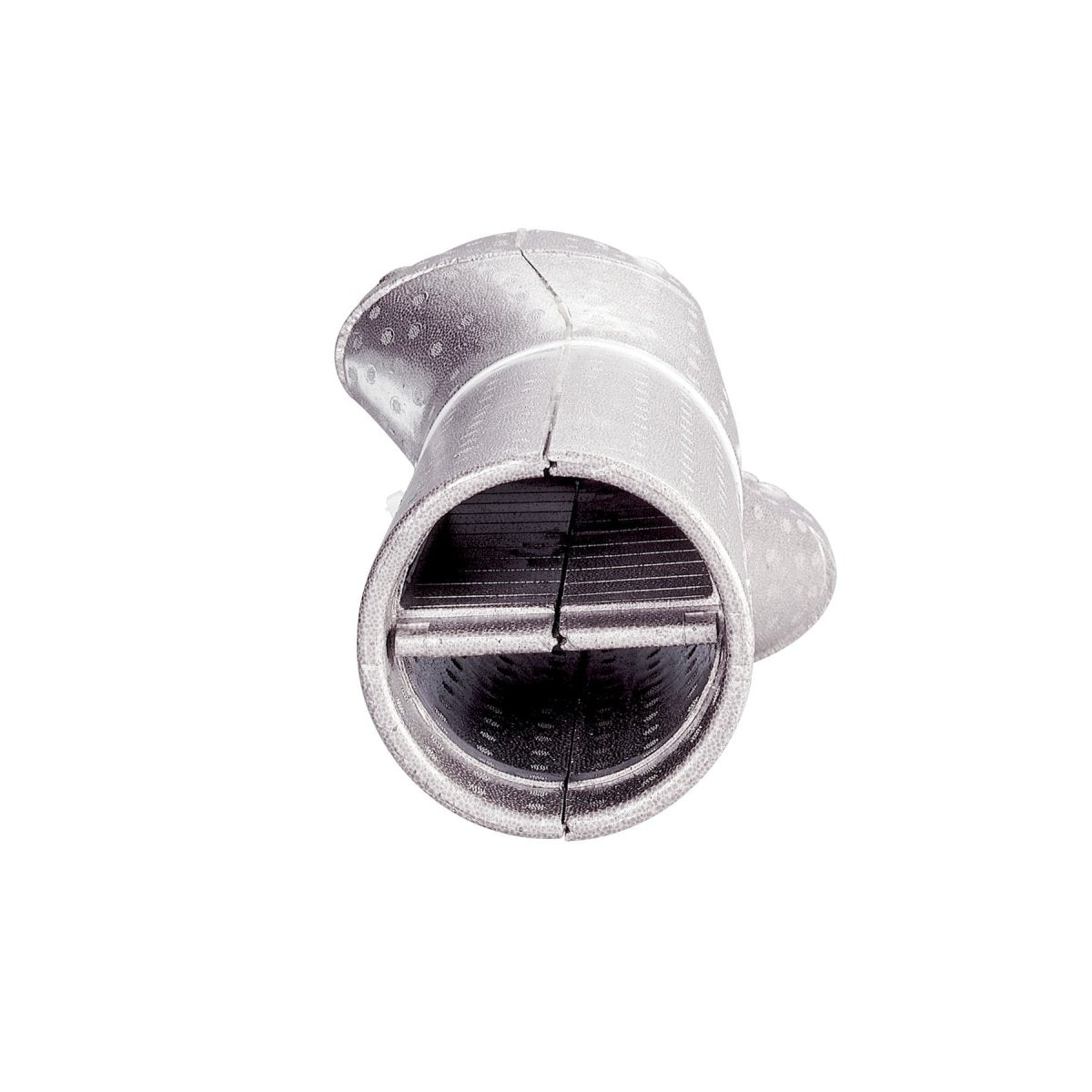

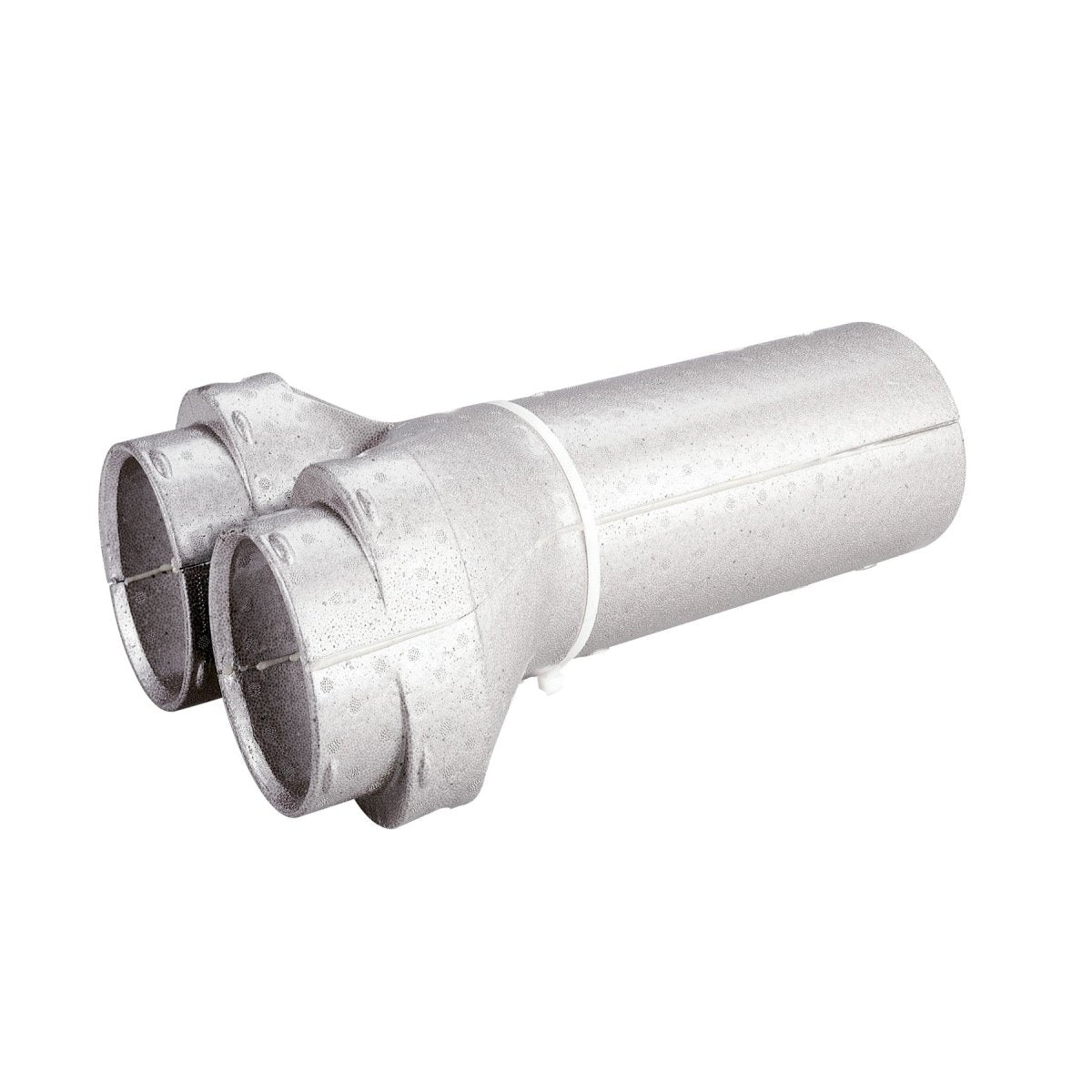

•  Versatile Fit: Exclusive Tandem® transition accommodates both 5” and 6” diameter insulated flexible ducts.

•  Superior Air Quality: Unique design limits cross-contamination to less than 5%.

Downloads

Specification Sheet
