BROAN AI Series 20-40-60 min. Timer – VBATHW (4-WIRE)

Name: BROAN AI Series 20-40-60 min. Timer – VBATHW (4-WIRE)
Brand: Broan
Price: 54.0 CAD
Availability: InStock

$54.00 CAD

Sale Request a Quote

Shipping calculated at checkout.

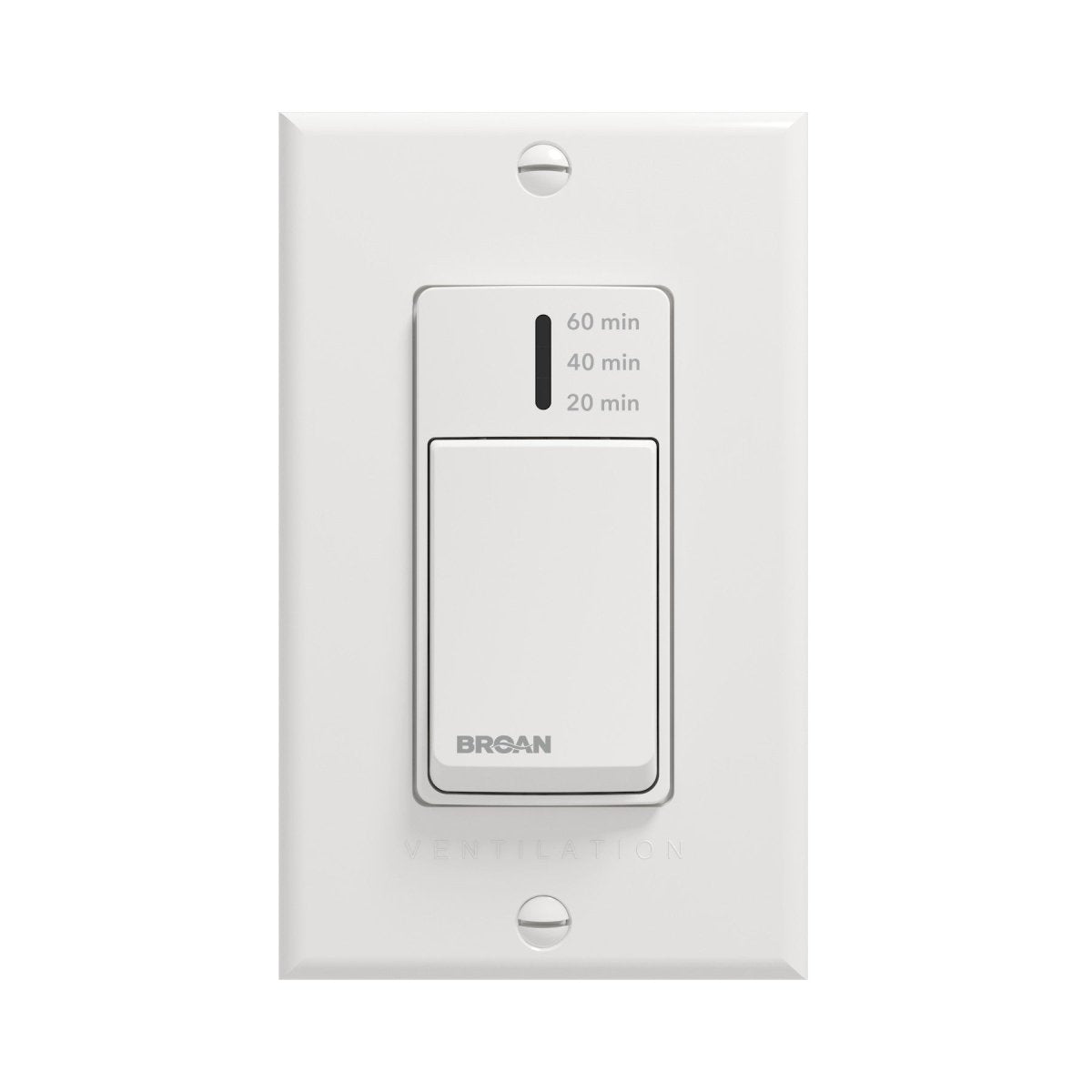

The 20-40-60 Control is for installation in a bathroom, a laundry room or a workshop. This auxiliary wall control can be installed with any main control of the AI series.

Manufacturer: Broan-NuTone, LLC.
Model Series: Broan AI Series
Model Description: 4-Wire 20-40-60 Control
Manufacturer's Part Number: VBATHW
Manufacturer's OLD Part Number: 41300, 41100
Compatibility: vanEE, Venmar, Broan AI Series

Features:

Manual override boost function by pushing of switch in 20, 40, and 60 minute durations
Powered by low-voltage source from home's HRV or ERV system
Modern design with settings behind concealed door to easily blend into the interior space
Fits in single-gang box with faceplate included
Fully compatible with AI Series HRV or ERV systems and ONE Series ERV systems
Multiple VBATHW controls can be connected to a single HRV or ERV system

Compatible Models (vanEE, Venmar, Broan AI Series)

V,A,B110H65RS
V,A,B110H65RT
V,A,B130H65RS
V,A,B130H65RT
V,A,B130E65RS
V,A,B130E65RT
V,A,B160H65RS
V,A,B160H65RT
V,A,B160E65RS
V,A,B160E65RT
V,A,B150H75NS
V,A,B150H75NT
V,A,B150E75NS
V,A,B150E75NT
V,A,B160H75RS
V,A,B160H75RT
V,A,B160H80RT
V,A,B160E75RS
V,A,B160E75RT
V,A,B210E75RT
V,A,B210E75RS
V,A,B230H75RS
V,A,B230H75RT

Note these new 41300 / 4100 / VBATHW timers are not compatible with the old style 1806110 or 03701 timers.

You cannot mix and match the timers on the same unit.

They either all must be the old style, or all must be VBATHW

NOTE If you have the older Venmar terminal block, wiring is as follows:

B >>> GND

OL >>> OVR

OC >>> 12V

The new timers can be hooked up with 3 or 4 wires. The lighting will work differently if using only 3 wires. On the terminal block of the air exchanger, remove the wire plugged into 'I' and move it to 'B'. If there is already something plugged into 'B', you will have to splice that wire with the wire you just removed from 'I'. Once that is done, you will plug in as follow: B= GRND, OL= OVR, OC = 12V.
