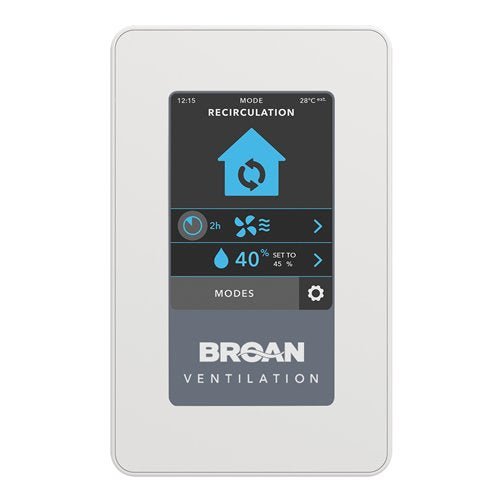

It is the most advanced wall control thanks to Virtuo Air Technology™. It features intuitive, fully configurable modes via the touch screen. It is the perfect wall control for those who love technology. It offers bidirectional communication between the unit and the wall control to get detailed maintenance information. All unit settings are easy to program. The pairing with auxiliary control(s) is simple. The installer can also save a program to reuse it for a similar dwelling.

• Manufacturer: Broan-NuTone, LLC.
• Model Series: Broan AI Series
• Model Description: Advanced Touchscreen 4-Wire Control
• Manufacturer's Part Number: VTTOUCHW
• Manufacturer's OLD Part Number: 41303
• Compatibility: vanEE AI Series

Features:

• SMART: The system will operate according to outdoor temperature and indoor temperature/humidity.
• CONT: MIN, MED or MAX speed continuous exchange ventilation.
• INT: Alternate between continuous exchange mode and standby or recirculation modes as per selected configuration. Speed and time are adjustable.
• RECIRC: Recirculate air inside the house at the selected speed.
• TURBO: 4-hour MAX speed exchange ventilation then comes back to its previous mode.
• DEHUM: The wall control includes a programmable dehumidistat.
• SCHEDULING: It is possible to schedule the ventilation system operating modes for a week.

• The indicator lights up when filter maintenance is required and there is a detailed system error log for easier maintenance.
• This wall control also features extra modes such as away and discretion.

Compatible Models

• B110H65RS
• B110H65RT
• B130H65RS
• B130H65RT
• B130E65RS
• B130E65RT
• B160H65RS
• B160H65RT
• B160E65RS
• B160E65RT
• B150H75NS
• B150H75NT
• B150E75NS
• B150E75NT
• B160H75RS
• B160H75RT
• B160E75RS
• B160E75RT
• B210E75RT
• B230H75RS
• B230H75RT

Downloads:

Installation Guide & User Guide
