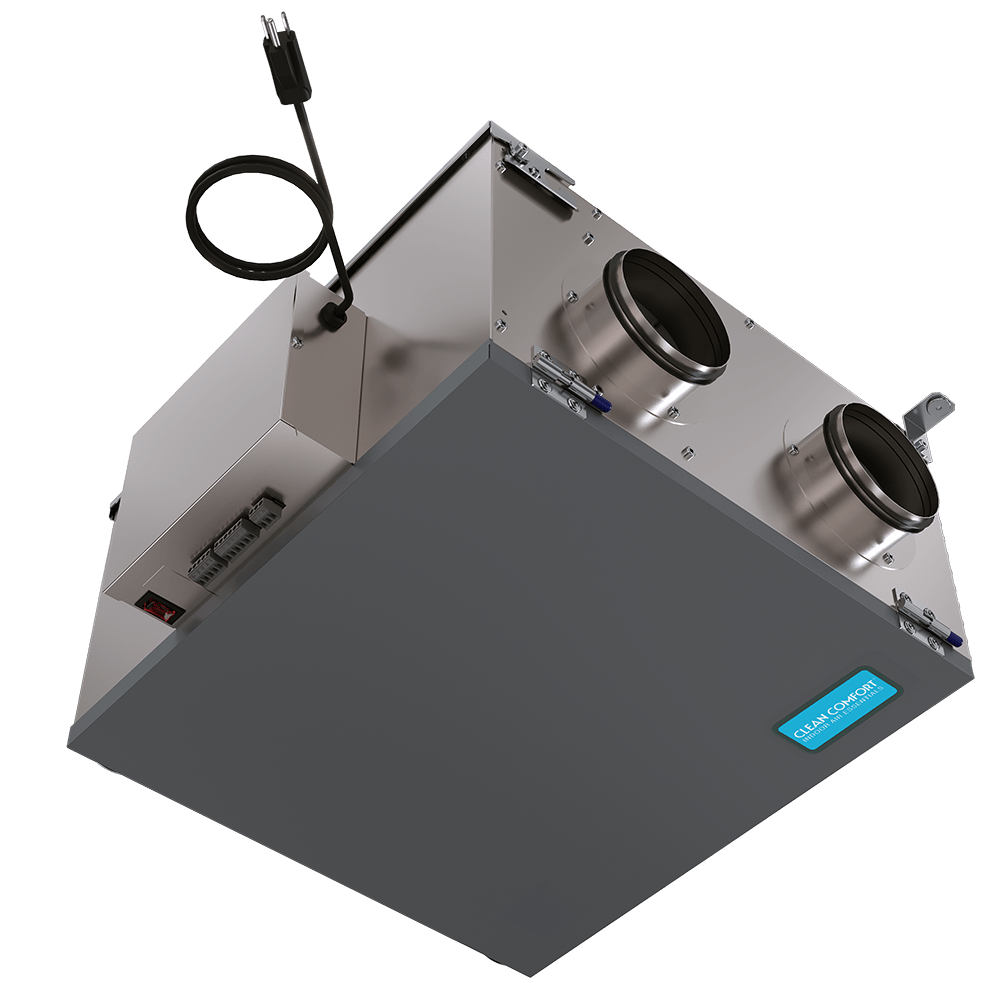

Clean Comfort VE40120SFS is an Energy Recovery Ventilator designed for multi-family applications, brings a continuous supply of fresh air into the premises while exhausting an equal amount of contaminated air out. As such, the energy recovery core transfers both heat and moisture from the outgoing exhaust air to the incoming fresh air, reducing the energy required to condition it.



Features
• Compact design (10" Depth)
• No drain required
• Mechanical shutoff damper
• Easy ceiling or wall installation with included mounting bracket
• Energy recovery core
• Electrostatic filters (washable)
• Removable screw terminal for easy connection with external access
• Multiple speed operation
• Lightweight design

Optional Controls
• STS 2.0 programmable touch screen wall control
• VHP-DC15P electronic multi-function dehumidistat
• VHP-TC10P multi-function controller
• VHP-T3P push-button timer (20/40/60 minutes)
• VHP-RD1 dehumidistat

Specifications
• Duct size: 5 in. (125 mm) round
• Voltage/Phase: 120/1
• Rated power: 120 W
• Running amperage: 1.0 A
• CSA rated amperage: 1.4 A
• Average airflow: 127 cfm (60 L/s) @ 0.4 in. wg (100 Pa)
• Weight: 35 lbs (16 kg), including core

Downloads:

Spec Sheet
