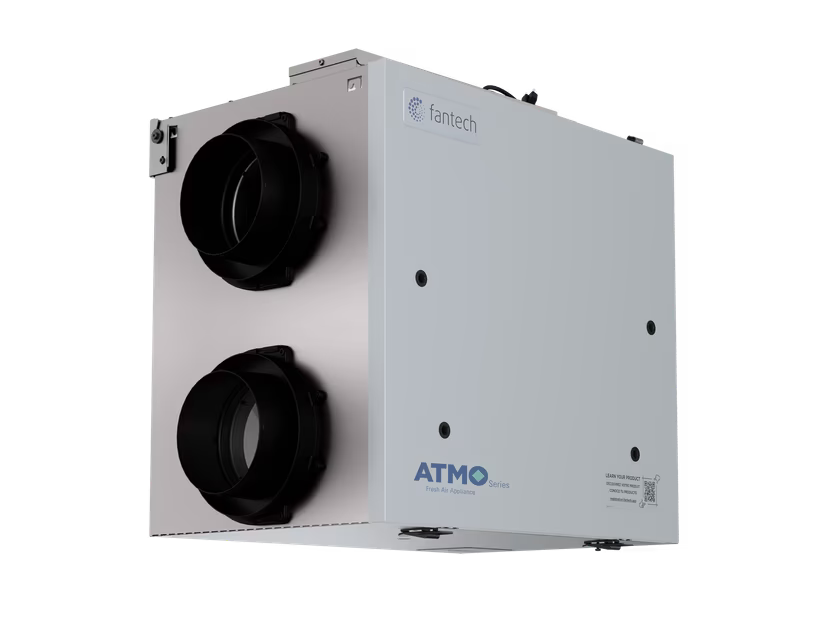

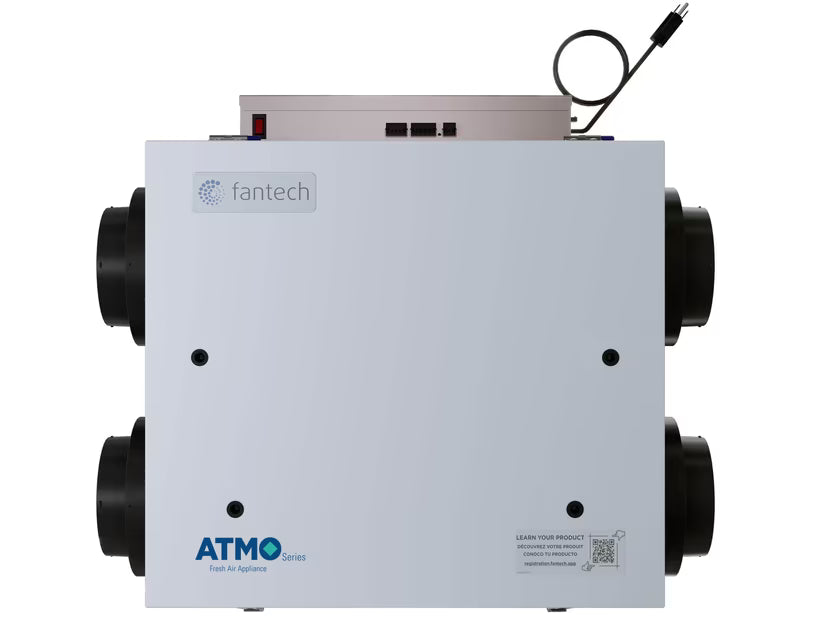

Fantech ATMO Series 300E-EC Energy Recovery Ventilator (ERV)

Powered by EC motors, the ENERGY STAR® and HVI certified ATMO™. 300E-EC fresh air appliance with energy recovery (ERV) uses a water vapor transport, durable, polymer membrane that transfers heat and moisture to the incoming air. This process helps to temper the incoming air and to maintain comfortable humidity levels.

Features:

• Heat & Energy Recovery Ventilators (HRVs/ERVs)
• Airflows up to 300* cfm at 0.4" w.g.
• 6" duct connection (all models)
• Plastic duct collars
• Optional MERV8 or MERV13 filters
• Integrated balancing taps for commissioning
• Unobstructed front access for fast & easy maintenance

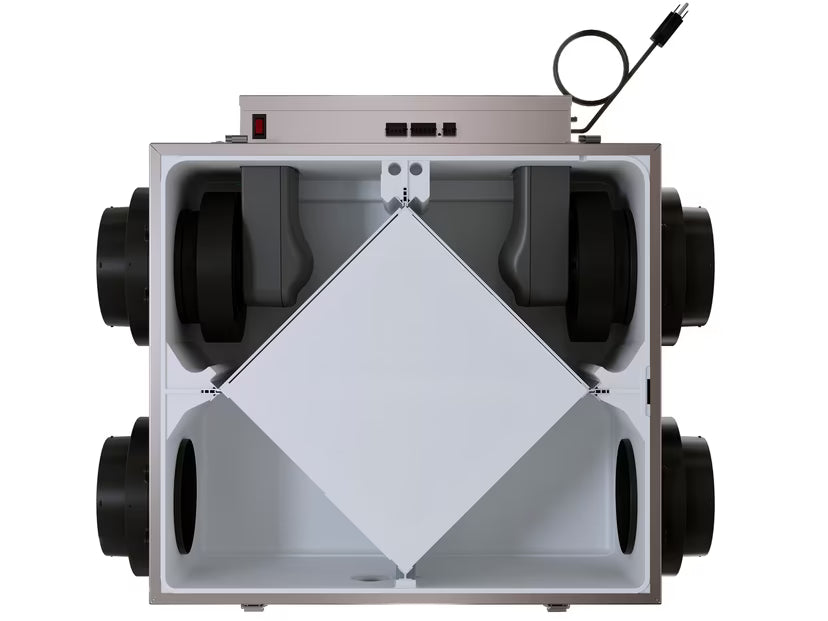

• Energy-efficient cross-flow core with SRE up to 77% (0C/32F)
• Helps improve the home's HERS score towards a NetZero status and lowers energy costs
• Mounting bracket (p/n 463942) is sold separately
• May be installed for drainless applications (ATMO-E)
• Certifications: CSA, HVI, ENERGY STAR (except for ATMO 150H)
  Limited warranty (limited lifetime on crossflow core, 7 years on motors, and 5 years on parts)
• *For airflow details on specific models, see the Diagram section on this page

Optional Controls:

• ECO-Touch® AUTO IAQ – Programmable Touch Screen Wall Control
• ECO-Feel® AUTO IAQ – Automatic IAQ Control
• RTS-W – Wireless 20/40/60 minute timer
• RTS2 – 20 minute timer over-ride
• RTS5 – 20/40/60 minute timer
• RTS4 – 20/40/60 minute timer

Downloads:

Spec Sheet

300E-EC Brochure
