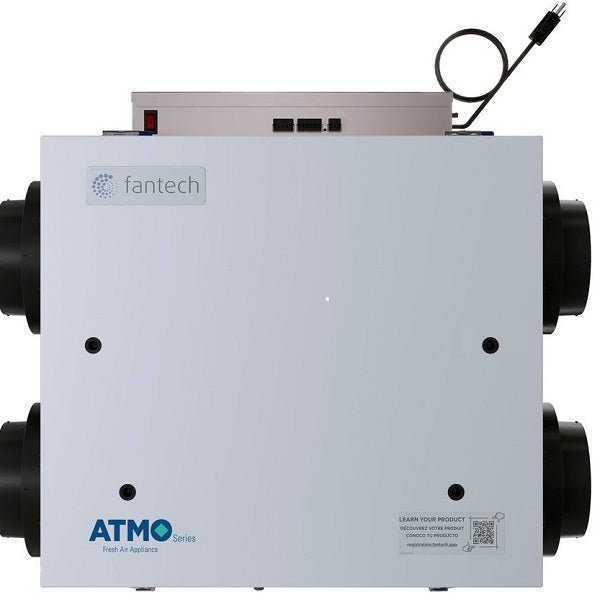

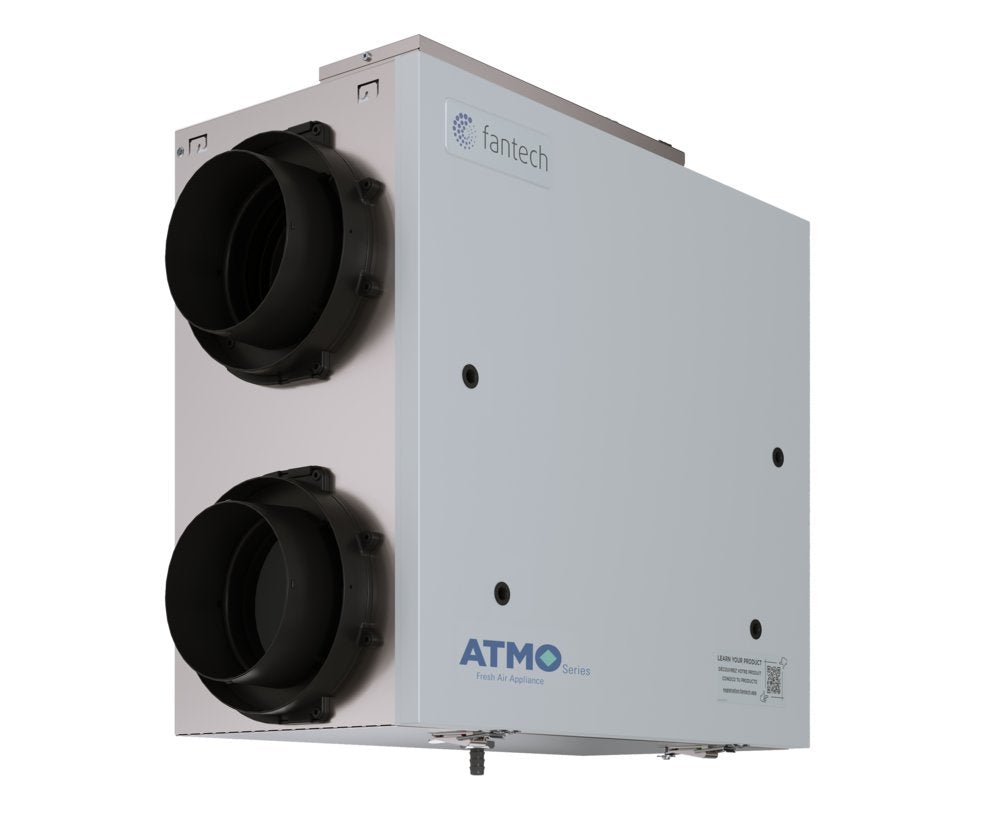

Fantech ATMO Series 150E Energy Recovery Ventilator (ERV)

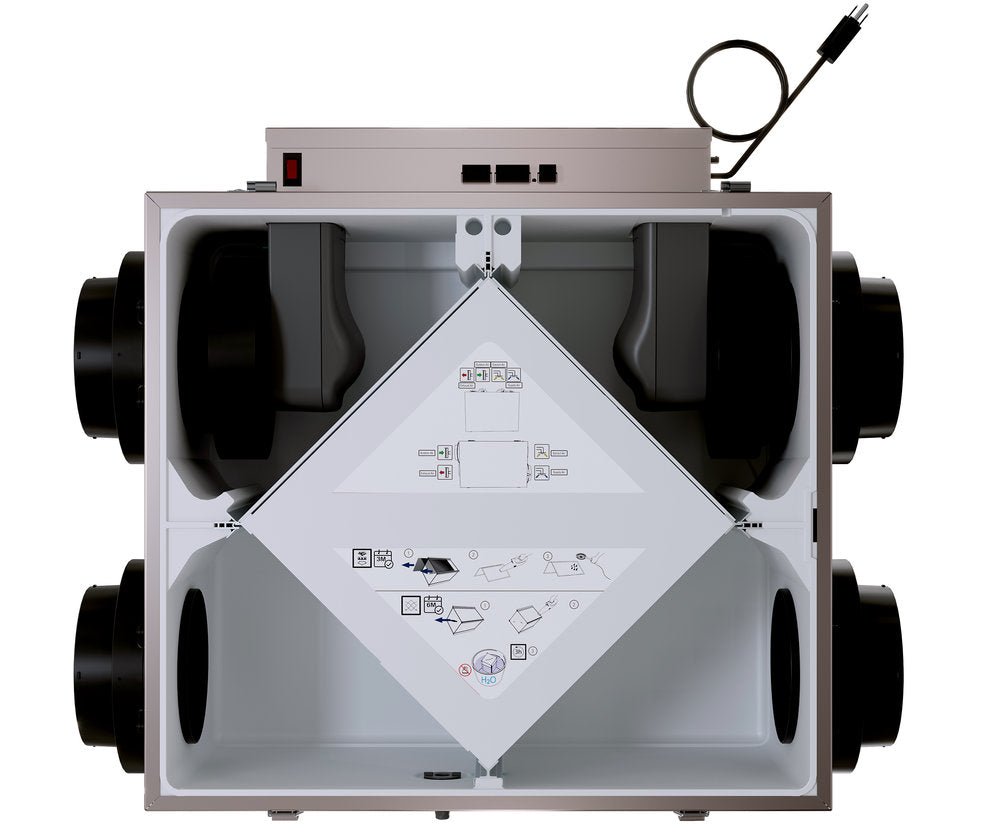

Fantech's, ATMO 150E is an Energy Recovery Ventilator designed for higher static pressure applications. The unit brings a continuous supply of fresh air into a home while exhausting an equal amount of contaminated air. The energy recovery core at the center of the unit
transfers heat and moisture from incoming air to the outgoing air that was cooled and dried by the building's air conditioner.

Features:

• Average airflow – 161 cfm (76 L/s) @ 0.4 in. wg (100Pa)
• 6" (152 mm) Side Duct connections, ENERGY STAR®
• Compact design
• Fans with backward curved blade
• Electrostatic filters (washable)
• ERV core transfers both heat and humidity
• Anti-microbial material, Withstands freezing
• AHRI certified
• Removable screw terminal for easy connection with external access
• Lighweight 46 lbs (21Kg)
• Multiple speed operation

• Defrost Type: FAN Defrost
• Motor Type: PSC (Standard)
• Heat Recovery Rate (SRE) : 75%
• Moisture Transfer rate: 60%
• Greentek Equivalent Model: Premier PRS 1.5E  463922

Optional Controls:

• ECO-Touch® AUTO IAQ – Programmable Touch Screen Wall Control
• ECO-Feel® AUTO IAQ – Automatic IAQ Control
• EDF8 – Electronic multi-function dehumidistat
• EDF3 – Multi-function dehumidistat
• RTS-W – Wireless 20/40/60 minute timer
• RTS2 – 20 minute timer over-ride
• RTS5 – 20/40/60 minute timer
• RTS4 – 20/40/60 minute timer
• MDEH1 – Dehumidistat

Downloads:

Spec Sheet
