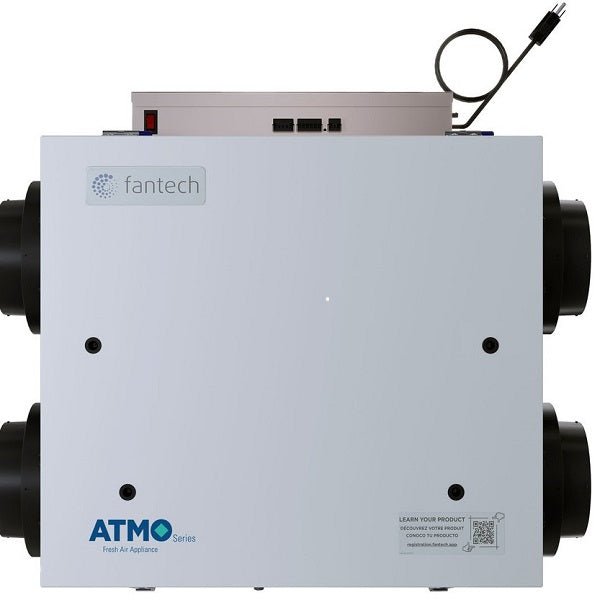

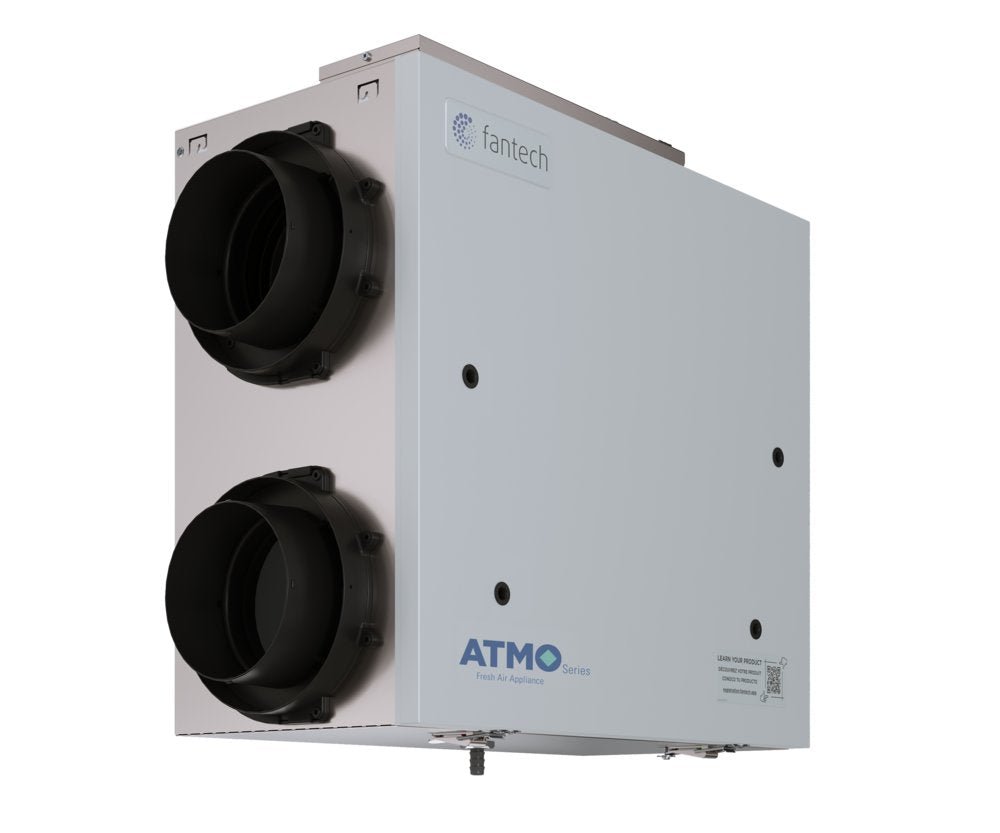

Fantech ATMO Series 150H HRV

Fantech's side port connection HRV for budget conscious house projects, the ATMO 150H unit brings a continuous supply of fresh air into a home while exhausting an equal amount of contaminated air. During winter, fresh incoming air is tempered by the heat that is transferred from the outgoing air so you save on energy costs, while during summer, the
incoming air is pre-cooled if the house is equipped with an air cooling system. The ATMO 150H is equipped with automatic defrost mechanisms so you can use your HRV all year long.

Features:

• Average airflow – 161 cfm (76 L/s) @ 0.4 in. wg (100Pa)
• 6" (152 mm) Side Duct connections
• Compact design
• Fans with backward curved blade
• Electrostatic filters (washable)

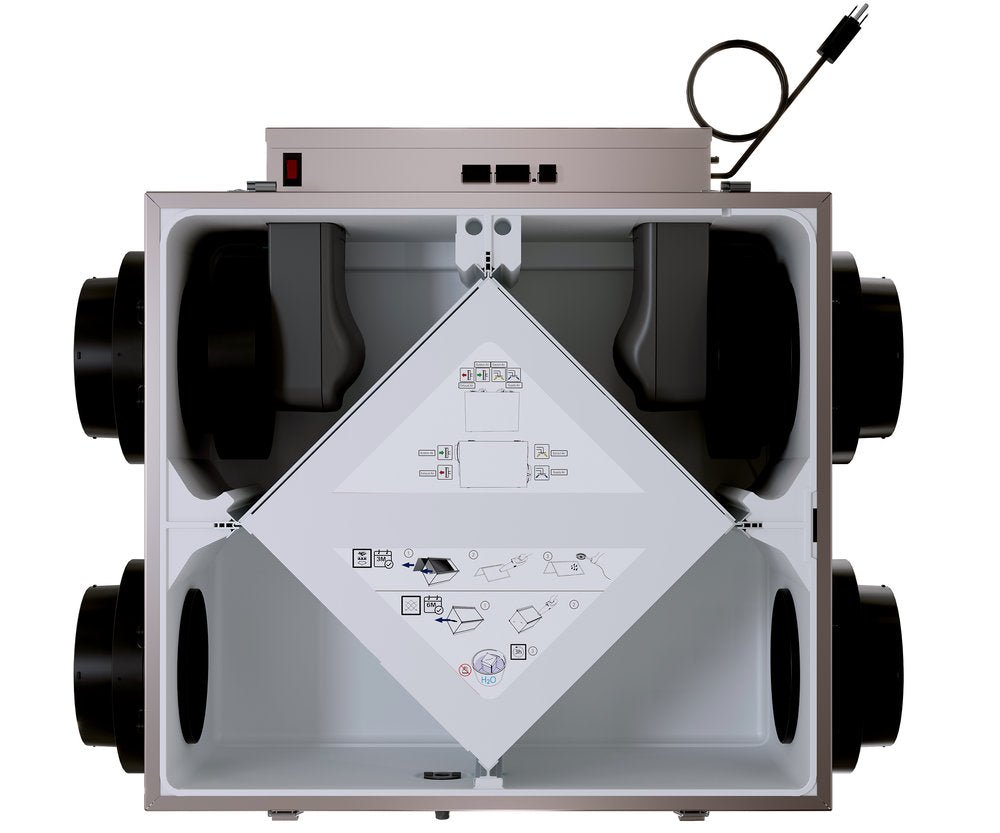

• Polypropylene heat recovery core
• Removable screw terminal for easy connection with external access
• Lighweight 42 lbs (19Kg)
• Multiple speed operation

• Defrost Type: FAN Defrost
• Motor Type: PSC (Standard)
• Heat Recovery Rate (SRE) : 75%
• Moisture Transfer rate: 0%
• Greentek Equivalent Model: Premier PRS 1.5H  463920

Optional Controls:

• ECO-Touch® AUTO IAQ – Programmable Touch Screen Wall Control
• ECO-Feel® AUTO IAQ – Automatic IAQ Control
• EDF8 – Electronic multi-function dehumidistat
• EDF3 – Multi-function dehumidistat
• RTS-W – Wireless 20/40/60 minute timer
• RTS2 – 20 minute timer over-ride
• RTS5 – 20/40/60 minute timer
• RTS4 – 20/40/60 minute timer
• MDEH1 – Dehumidistat

Downloads:

Spec Sheet
