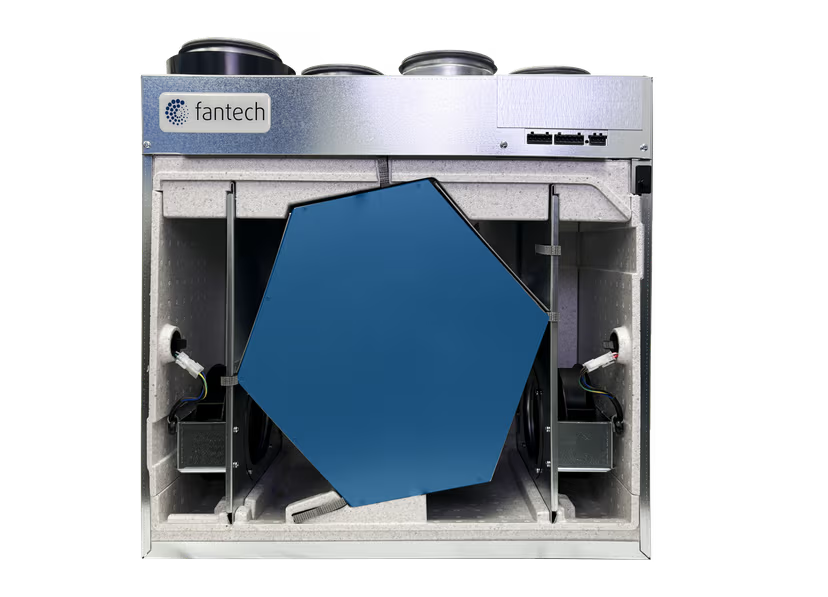

oThe HERO 120E-EC is a high-performance energy recovery ventilator (ERV) designed for single-family and multi-family residential applications, including condominiums and apartments. Its cunterflow enthalpy core achieves over 85% sensible recovery efficiency (SRE), transferring both heat and moisture. The top-port configuration supports stringent design requirements, while the drainless design simplifies installation and maintenance. An integrated internal damper enables recirculation for efficient defrosting. EC motors use intelligent technology with integral electronic controls to ensure energy savings no matter what the airflow demands. Reduced energy usage results in lower operating costs. The motors develop less heat so significantly less maintenance is needed and the lifetime of the motor is increased.

Features

• Electronically commutated motors (ECM)
• 5 in. (125 mm) round metal duct connections with rubberized duct seals
• Top-port, drainless design
• Counterflow energy recovery core
• Multiple speed operation
• Internal recirculation defrost
• Removable screw terminal for easy connection with external access
• Includes wall mounting speed bracket

• Compatible with all Fantech controls

Limited Warranty
7 years on motor, 5 years on electrical components and core.

Compatible Controls
Compatible with all Fantech controls

Specifications

Documents:
Fantech HERO120E-EC ERV Manual
Fantech HERO120E-EC ERV Spec Sheet
