Fantech HERO 140E ERV - 140 CFM
Fantech HERO 140E ERV - 140 CFM

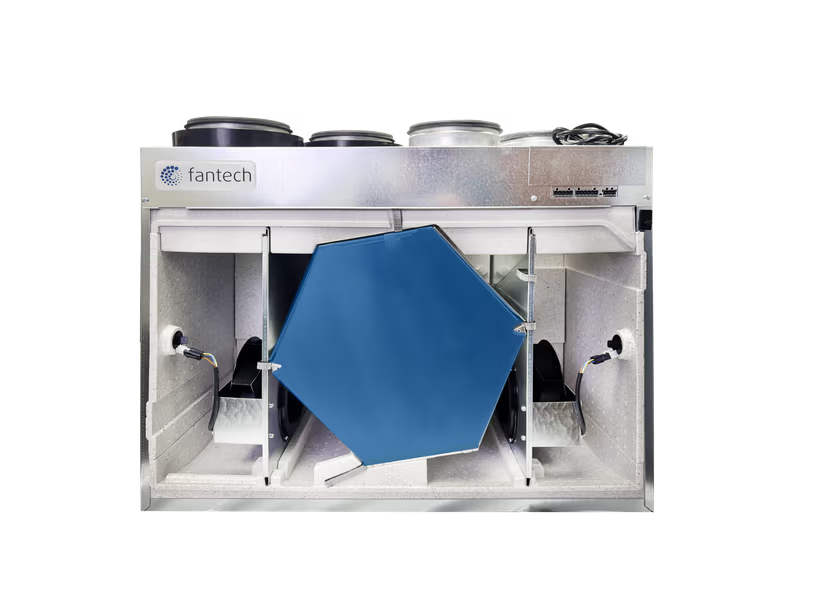

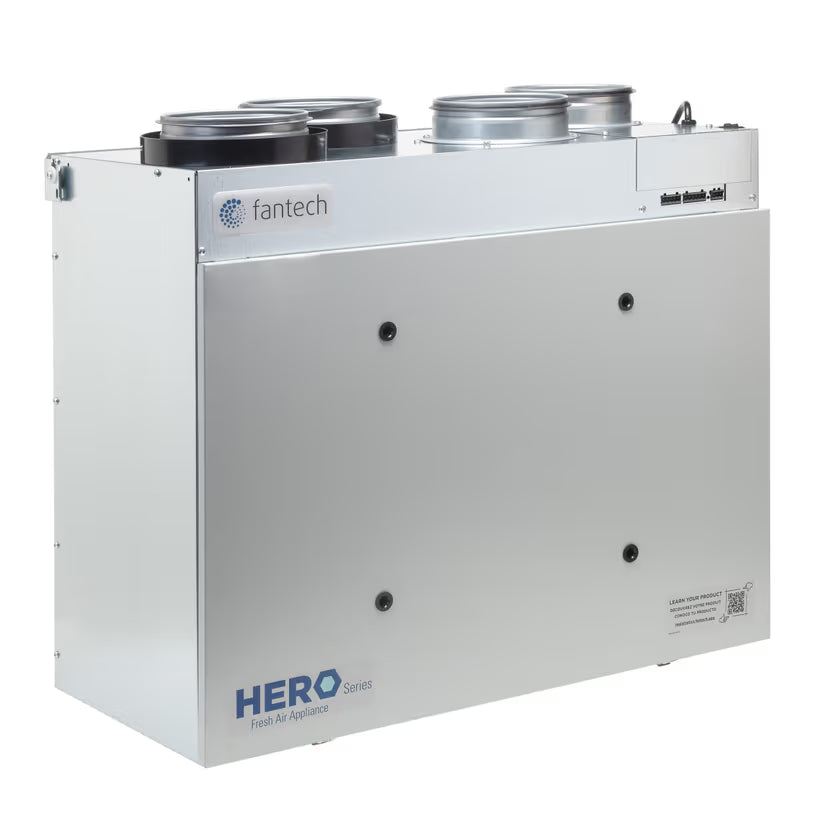

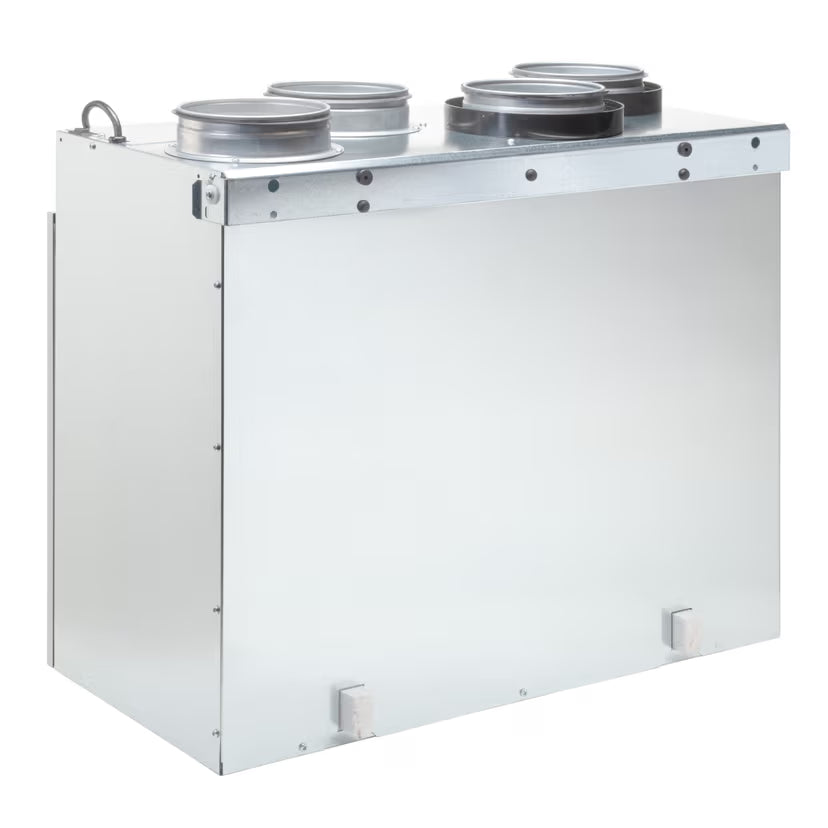

The HERO 140E is a high-performance energy recovery ventilator (ERV) designed for single-family and multi-family residential applications, including condominiums and apartments. Its counterflow enthalpy core achieves over 79% sensible recovery efficiency (SRE), transferring both heat and moisture. The top-port configuration supports stringent design requirements, while the drainless design simplifies installation and maintenance. An integrated internal damper enables recirculation for efficient defrosting.
Features
- 6 in. (152 mm.) round metal duct connections with rubberized duct
seals - Top-port, drainless design
- Counterflow energy recovery core
- Multiple speed operation
- Internal recirculation defrost
- Removable screw terminal for easy connection with external access
- Includes wall mounting speed bracket
- Compatible with all Fantech controls.
Limited Warranty
7 years on motor, 5 years on electrical components and core.
Compatible Controls
Compatible with all Fantech controls.
Specifications
| Duct size | 6 in. (152 mm.) round |
| Voltage/Phase | 120/1 |
| Power rated | 167 W |
| Amp | 1.4 A |
| Average airflow | 142 CFM (67 L/s) @ 0.4 in. w.g. (100 Pa) |
| Weight | 58.5 lbs (26.5 kg) including core |
Documents:
Fantech HERO140E ERV - Manual
Fantech HERO140E ERV - Spec Sheet
