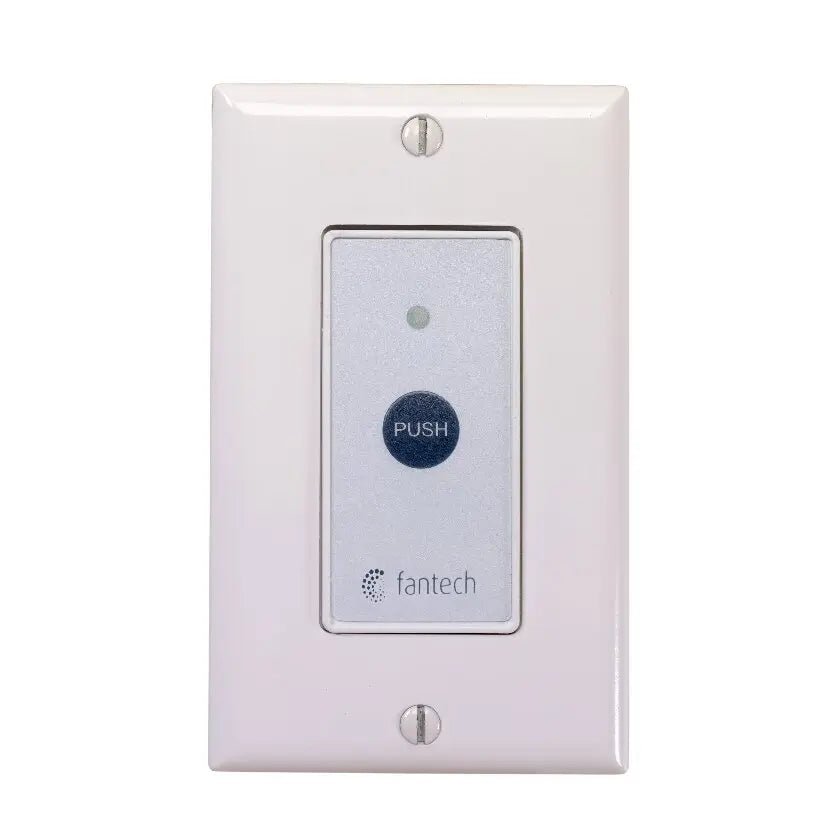

FANTECH RTS2 PUSHBUTTON TIMER – 20 MINUTES

• Manufacturer: fantech
• Description: RTS2 Pushbutton Timer – 20 minutes ( 2-wire )
• Compatibility: Please see Documents folder.
• Manufacturers’ Part Number: 40164

The RTS2 Pushbutton Timer is ONLY compatible with Fantech SHR, VHR and SER series models. The button activates the system to run in continuous mode for 20 minutes, it then returns to the predetermined setting. To cancel this operation, simply press the button a second time.

Features:

• The RTS2 is compatible with Fantech® SHR, VHR and SER series models
• The button activates the system to run in continuous mode for 20 min, it then returns to the predetermined setting
• To cancel this operation, simply press the button a second time

Specifications:

BRAND	Fantech
CONSTRUCTION	Plastic
FINISH	White
HEIGHT INCHES	4-1/2 (11.43 cm)
LAMP	NO
LENGTH INCHES	2-3/4 (6.99 cm)
LIMITED WARRANTY YEARS	2
MANUFACTURERS PART NUMBER	RTS2
MOUNTING LOCATION	Wall
SPEED CONTROLLABLE	NO
TYPE	Wall mounted
VOLTAGE	2
WEIGHT LBS	0.1 (.05 kg)
WIDTH INCHES	5/8 (1.59 cm)

Downloads:

401285 RTS2 IOM EN FR.PDF
