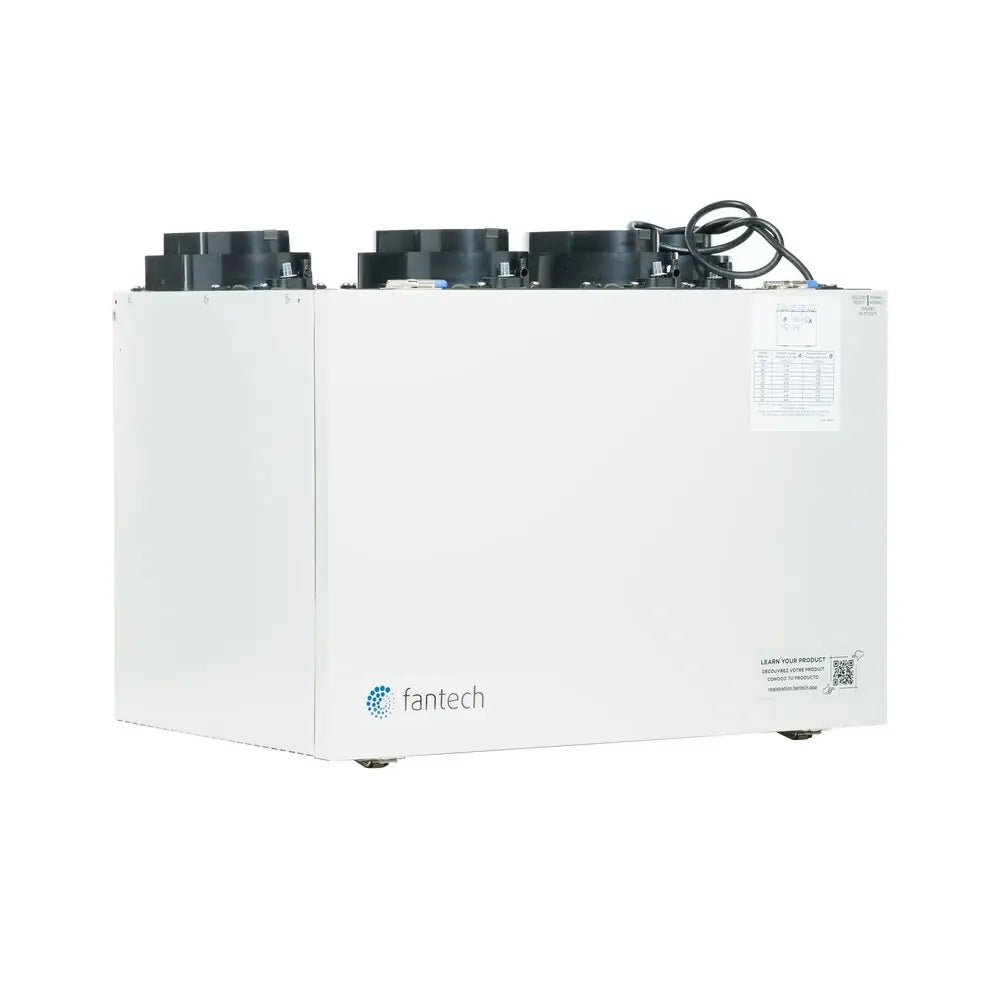

Fantech VHR Series VHR-150 HRV (Heat Recovery Ventilator)

One of Fantech's most popular HRV for home projects, the VHR 150 is designed for higher static pressure applications. The unit brings a continuous supply of fresh air into a home while exhausting an equal amount of contaminated air. During winter, fresh incoming air is
tempered by the heat that is transferred from the outgoing air so you save on energy costs, while during summer, the incoming air is precooled if the house is equipped with an air cooling system. The VHR 150 is equipped with automatic defrost mechanisms so you can use your HRV all year long.

Features

• Airflow up to 159 CFM (75 L/s) @ 0,4"Ps (100 Pa)
• 6" (152mm) oval duct connections with integrated airflow measurement
• Compact design, only 23.75" (603 mm) wide
• Fans with backward curved RadiCAL blade
• Electrostatic filters (washable)
• Aluminum heat recovery core
• Removable screw terminal for easy connection
• Easy Core Guide Channels For Removing Core
• Only weighs 45 lbs (20Kg)

Optional Controls

• ECO-Touch™ (#44929) – Programmable Touch Screen Wall Control
• EDF7 (#44883) – Electronic multi-function dehumidistat
• EDF1 (#40375) – Multi-function control
• RTS5 (#44794) – 20/40/60 minute over-ride
• RTS2 (#40164) – 20 minute over-ride
• MDEH1 (#40172) – Dehumidistat

Downloads:

Spec Sheet
