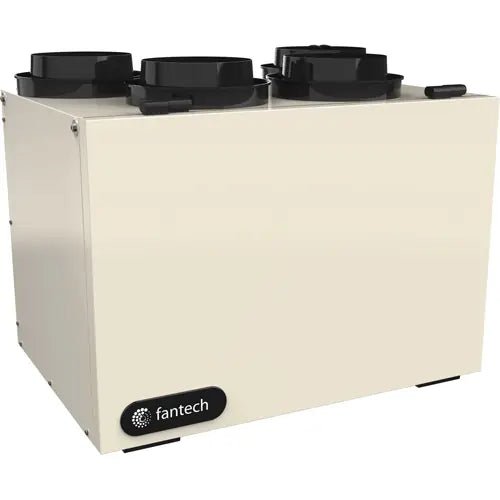

Fantech VHR Series VHR-2004 HRV

• Manufacturer: fantech
• Model Series: VHR Series
• Model Description: VHR 2004
• Ventilation Performance: 60 – 201 cfm @0.4 in. wg
• Manufacturers’ Part Number: 40061
• Wall Controller Included: none
• Core Type: Heat Recovery Ventilator (HRV)
• Heat Recovery Rate: 62%
• Moisture Transfer rate: 0%

Specifications:

• Core Material: Aluminum
• Core Filters: (Qty. 2) washable foam filters
• Defrost Type: Exhaust
• Port Location: vertical
• Port Sizes: 6 inch round collars
• Motor Type: PSC
• Power Consumption (Low Speed): 108 watts

• Balancing Method (if required):  please see below
• Air Flow Measured Via:  fresh & stale air ducts connected to furnace
• Air Flow Adjusted Via:   integrated balancing dampers

• Unit Dimensions: Ht: 20.5″  / W: 17.5″ /  D: 28.0″
• Unit Weight: 55 lbs / 25 kg
• Parts Warranty: 5 Years
• Core Warranty: Lifetime limited

Documents:

• Service Manual
