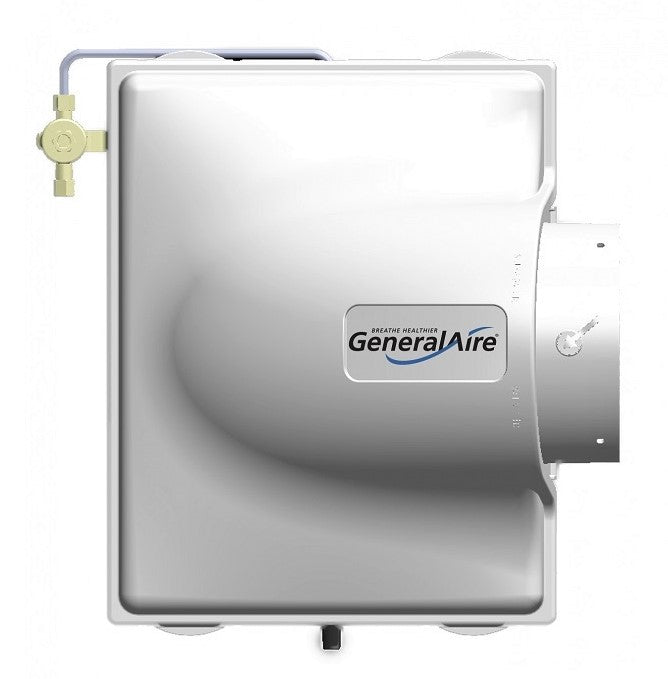

GeneralAire 4200 WSC Humidifier, Large Bypass, Mechanical & Watersavor Control :

Model# 4200, GeneralAire WSC Humidifier:

GF-4200 Specs

• Type:  bypass evaporative
• Gallons per day:  17 (based on 120° F plenum temperature)
• Dimensions (inches):  15 1/4 H x 12 W x 8 1/2 D
• Weight (pounds):  3.5
• Vapor Pad® replacement:  GA35 (GFI #7902)
• Replace 1-2 times per season
• For home sizes up to 4,200 square feet
• Plenum opening (inches):  9 1/8 W x 12 H
• Bypass opening (inches):  6
• Installation:  warm air / return air plenum / right of left side
• Control:  MHX3C manual-control duct-or-wall mount humidistat
• Power (volts):  24
• Warranty (years):  5

Features

• Maximum Humidity Output Through:
  • Low-Profile Cover That Forces Air Directly Through the Vapor Pad® at its Warmest Point
  • Stainless steel distributor tube for cold or hot water supply
  • Redesigned cover and chassis to direct hot furnace air directly through the Vapor Pad®
  • Reduced Vapor Pad® frame for maximum pad exposure
• Left or right bypass installation option
• Left or right solenoid valve installation option
• Easy Maintenance Through:
  • Snap-in-Place, Easy Lift-Off Cover
  • Sturdy Two-Piece Vapor Pad® Frame That Easily Pulls Apart to Release & Replace the Vapor Pad®

Your furnace sends warm air through the humidifier and a water-soaked Vapor Pad®, evaporating water within the Vapor Pad®. Newly-moistened air is then delivered throughout your home via your home’s duct system. Breathe healthier with a GeneralAire® 4200 Evaporative Humidifier.
