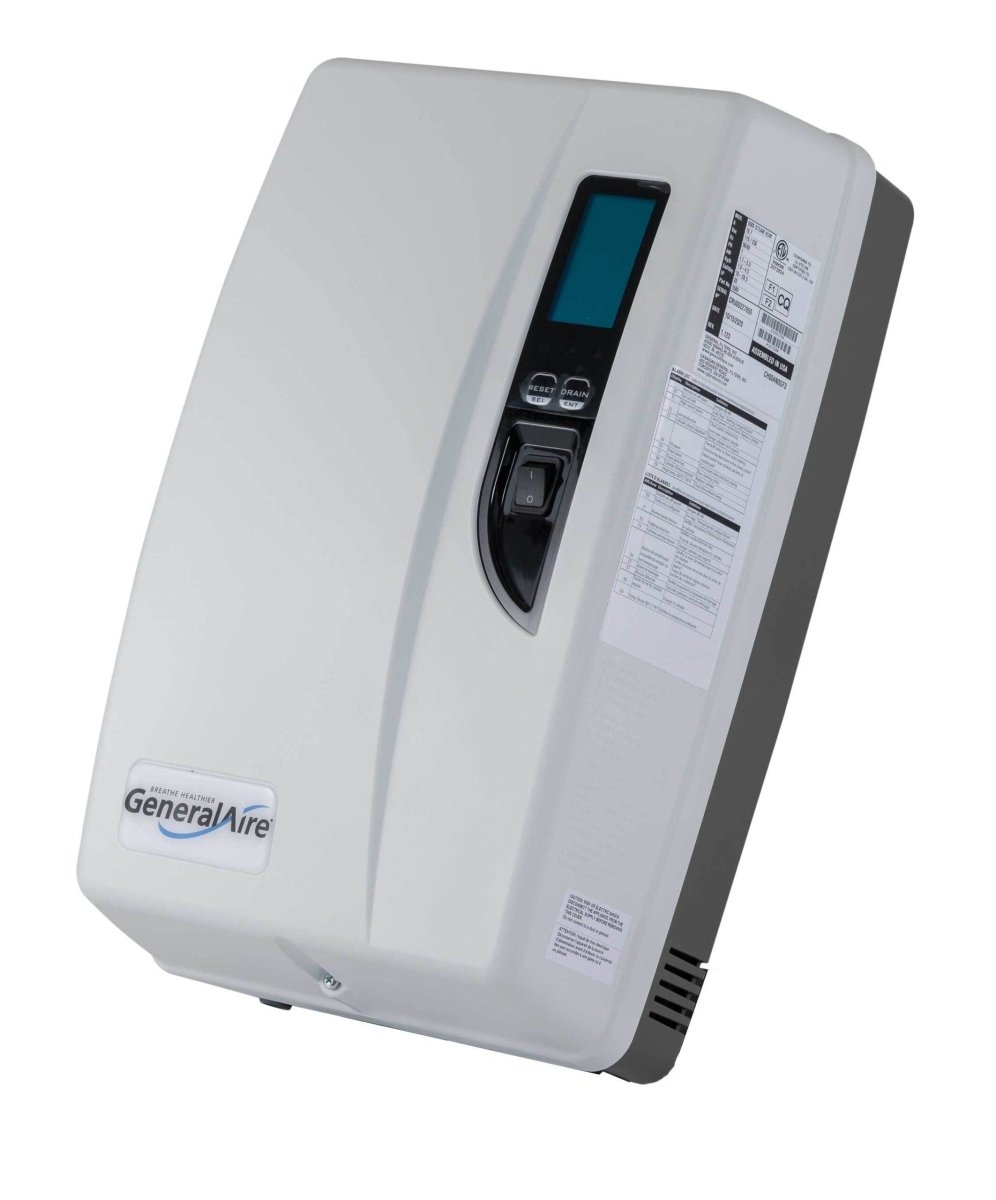

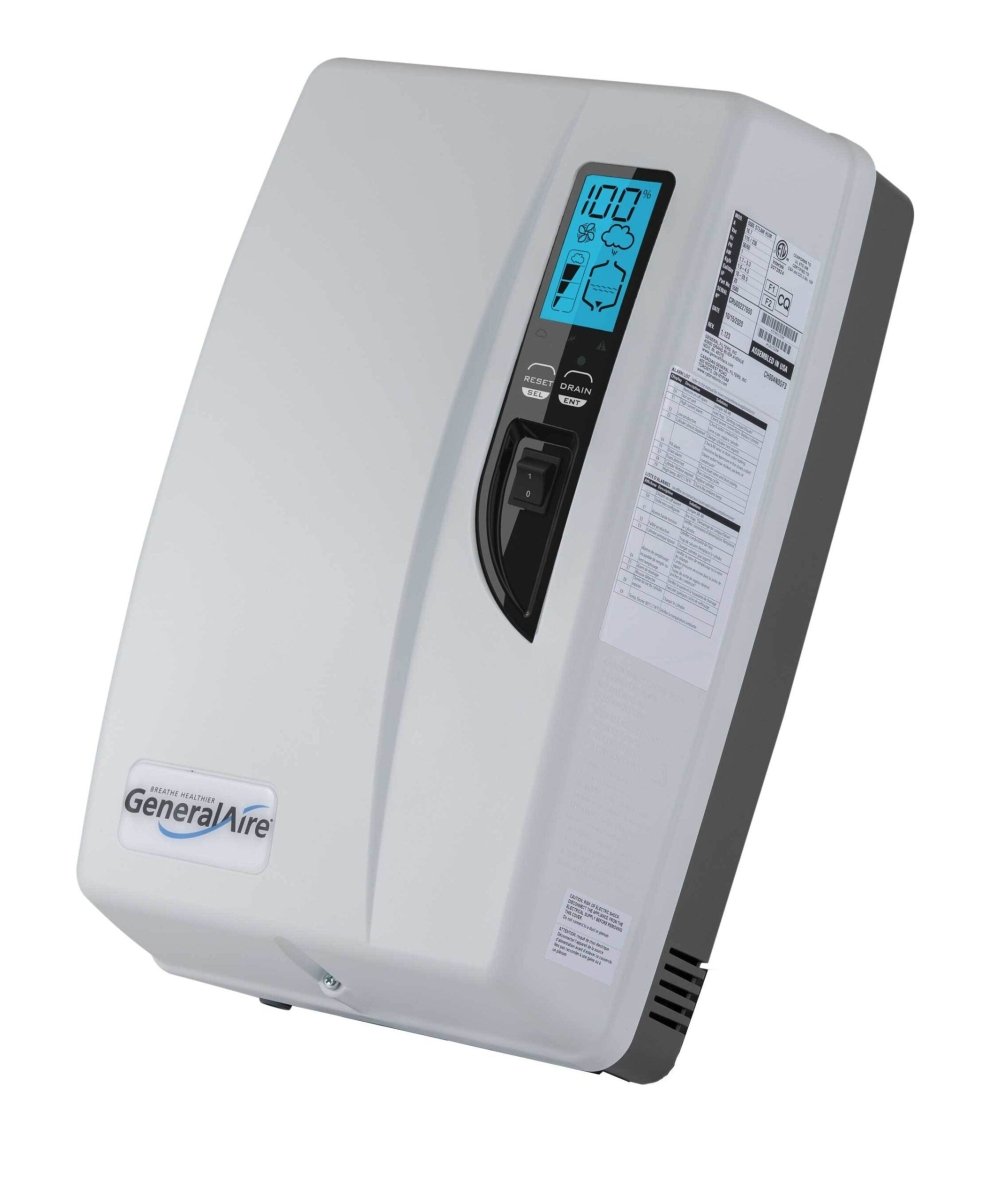

GeneralAire GF-5500 Electrode Steam Humidifier

Features

• One unit for both 115 & 230 V (via internal switch)
• One cylinder for both regular and low conductivity
• Spark plug style wire connectors for easy cylinder replacement
• Enhanced, easy-to-read control module
• One-screw cover release for easy access
• Screw permanently affixed to cover to prevent dropping, losing
• Water tempering for safety
• Includes installation kit and heavy duty, pre-drilled metal mounting straps that allow for installation to wall studs (16″)
• Includes our NEW GFX4 (same as GFX3 but also allows for control of furnace blower motor)
• 5 Year Warranty Coverage on Control Board, Drain Pump & Fill Temp Valve

Specs

• Type:  electrode steam
• Gallons Per Day:  115V = 15;  230V = 28.5
• Power:  115 /  230V (internal switch selector)
• Dimensions (Inches):  21 H x 14 W x 8.25 D
• Weight (pounds):  16
• For home sizes up to 5500 square feet
• Replacement Cylinder:  Model 55 (GFI #7746) for both regular & low conductivity
• Pallet quantity:  16
• Ground connection:  screw
• Conductivity range:  125 to 1250 µs/cm
• Water fill connection:  1/4″ O.D. Compression adapter to 3/4″ FPS
• Input water type:  potable water (no demineralized or softened water)
• Drain water temperature: <140°F / <60°C

Maintenance

Replace the Generalaire GF-55 cylinder a minimum of once per year at the start of the heating season.
