Specifications

• Manufacturer: CFG Products Ltd.
• Brand Name:   Generalaire

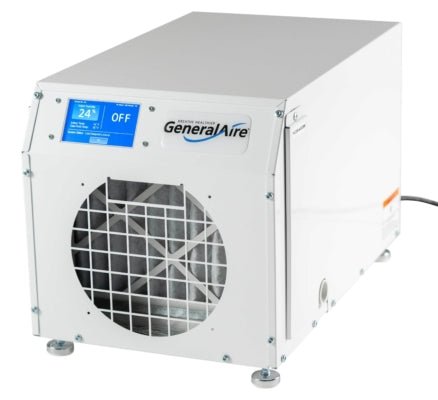

• Model:   DH100
• Rated Capacity (unducted):  100 PPD @ 220 CFM
• Refrigerant Type: R-410A
• Supply Voltage Required: 120 VAC
• Inlet / Outlet Duct Collar Diameter :  10″
• Manufacturers’ Order Number:  GFI # 5334
• Onboard Control Included: Yes
• Unit Weight: 65 lbs. / 30 kg.
• Warranty: 5 Year Whole Unit Replacement.
• Country of Origin: U.S.A.
• Floor Drain Required: YES
• Round Duct Collar Size:  Inlet= 10″ Outlet= 10″
• Energy Star Qualified: YES
• Energy Usage: 7.8 amps
• Coil is e-coated: YES
• Maintenance Schedule (minimum) : Yearly
• Built-in Filter Efficiency Level: MERV 11
• Consumables – Replacement Filter Part Number:   GFI # 7144
• De-Humidifier Nominal Size: W= 12.6″  H=  15.75″  D= 21″

Downloads

• DH75 AND DH100 INSTALLATION MANUAL pdf new
• DH75 and DH100 Dehumidifiers CANADA
• DH75 and DH100 Spec Sheet
• Dehumidification Mechanical Business pg 26 Mar Apr 2017 edition
• GENERAL Aire DH75 DH100 Energy Efficiency De Humidifier vs Air Conditioning
• DC1 DC4 P TR3 Installation Owners Manual pdf
• Wi Fi Connectivity Concerns
