GeneralAire GF-1042 Humidifier  Specification

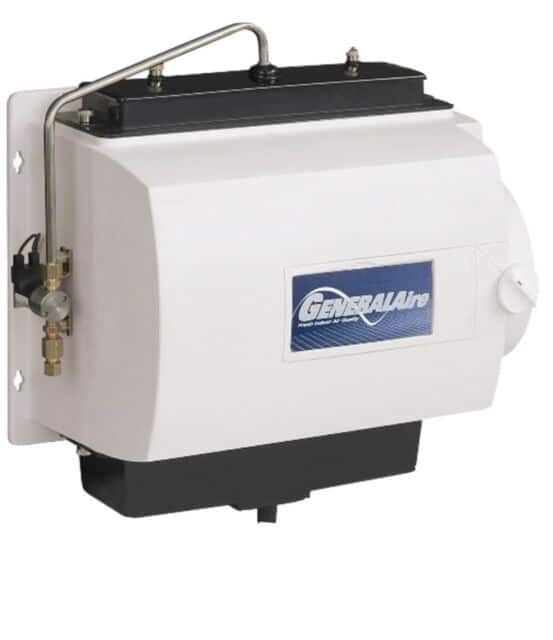

GeneralAire Model# GF-1042 Humidifier:

Legacy Series Humidifier Residential Whole-House GF-1042DMM Type Flow-Through Humidifier GPD (Based on 120° Plenum Temperature) 17 Dimensions (Inches) 14 H x 15.125 W x 9 D Weight (Pounds) 13 Replacement Vapor Pad® (Replace Once Each Season) GF-990-13 Home Size (Sq. Ft.) To 2,800 Installation Warm Air / Return Air Plenum / Right of Left Side Plenum Opening (Inches) 13.625 W X 9.5 H Bypass Opening (Inches) 6 Cabinet Construction UV-Stable Automotive Grade Plastic Humidistat GF-MHX3 (Included with GF-1042DMM) Voltage (Volts) 24 Warranty (Years) 5 Typical Installation For newer homes up to 2,800 square feet and homes with a forced-air heating system In The Box Humidifier, humidistat, Installation Instructions, Vapor Pad®, Parts Kit, Drain Hose, Transformer, Metal Distributor Tube, Damper, 15’-5/8” Drain Hose, Drain Pan, Solenoid Valve, Quick Connect Tee valve w/Shut Off 15.125” W 9” D 14” H GF-1042DMM GeneralAire® Models GF-1042DMM/DMD Flow Through Humidifier ®TM GF-990-53 Solenoid Valve Accessories GeneralAire GF-1042 Humidifier Description: GeneralAire 1042DMM Legacy Flow Through Humidifier with MHX3 Select-Control Manual Humidistat. A highly efficient flow-through unit that delivers 19.2 GPD. For home sizes up to 2,800 sq ft Humidifiers add moisture to the air in your home. As air from the furnace passes through a water-soaked pad, it absorbs moisture and then returns for distribution throughout your home. Water is metered into the KineticFlo® Trough and dispersed uniformly across the pad. Un-evaporated water drains from the bottom of the unit to eliminate mineral build-up Includes all components normally required for a complete installation:

• 24V Stainless Steel Solenoid Valve
• Narrow Plenum Adapter Plate GP-1040AD
• Self-Tapping Saddle Valve
• Cold Water Supply Kit GP-81-60
• Flexible Bypass With Damper GP-81-57
• Drain Hose With Clamp
• Low Voltage Wire GP-81-24
• Mounting Hardware

Humidifier Product Docs:

• Generalaire Humidifier GF1042DMM - GF1042DMD - Spec - Sheet
