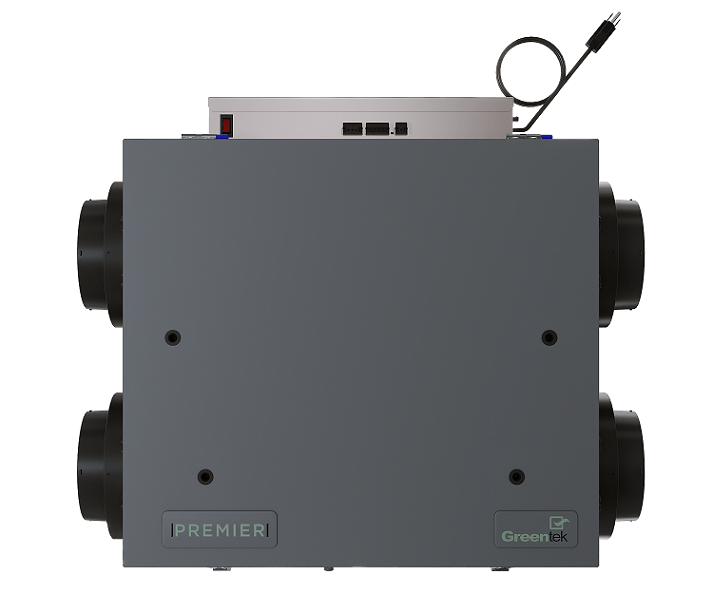

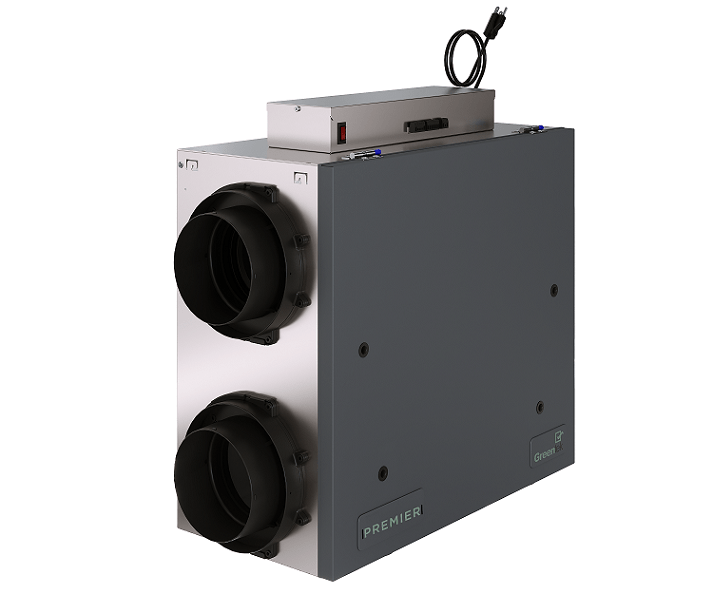

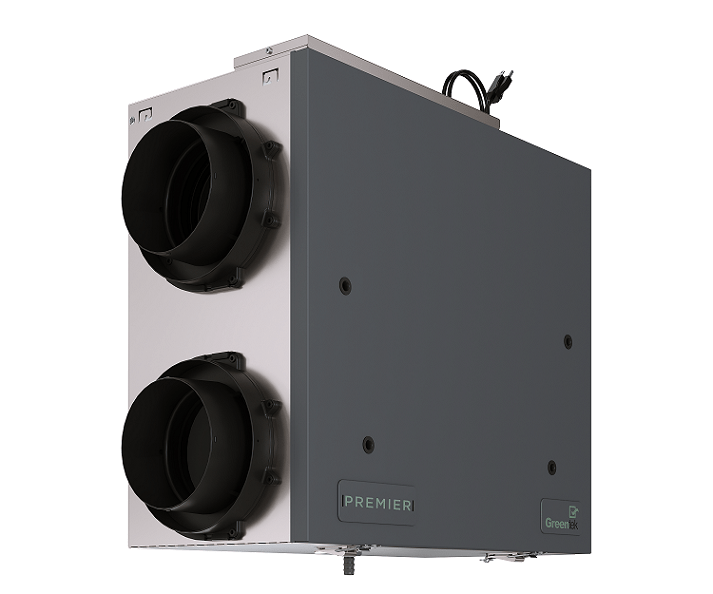

Greentek Premier Series 3.0E-EC ERV

Product # 473333

Powered by EC motors, the ENERGY STAR® and HVI certified PREMIER 3.0E-EC Energy Recovery Ventilator (ERV) uses a water vapor transport, durable, polymer membrane that transfers heat and moisture to the incoming air. This process helps to temper the incoming air and to maintain comfortable humidity levels. PREMIER is designed for high static pressure applications that demand high efficiency. The product is equipped with an automatic defrost mechanism that is activated when outdoor air temperature drops to 23°F (-5°C) or lower. During the defrost cycle, the supply air fan shuts down while the exhaust air fan switches into high speed to maximize the effectiveness.

Features:

• Fans with backward curved blade impellers
• Electronically commutated (EC) motors
• Electrostatic filters (washable)

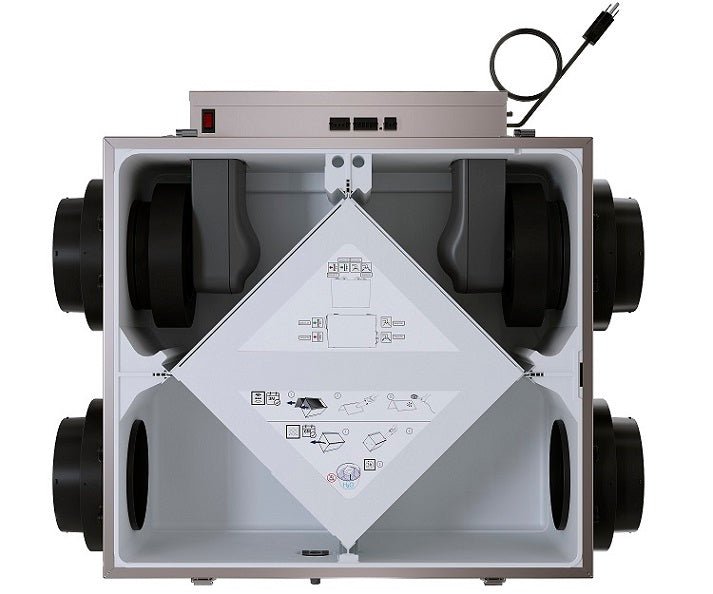

• ERV core transfers both heat and humidity
• Removable screw terminal for easy connection with external access
• Multiple speed operation

Specifications:

• Average airflow – 301 CFM (142 L/s) @ 0.4 in. wg. (100 Pa)
• Duct size – 6 in. (152 mm.)
• HVI and ENERGY STAR® certified*
• Compatible with all Greentek controls
• Voltage/Phase – 120/1
• Power rated – 235 W
• Amp – 6.4 A
• Weight – 60 lbs (27 Kg)
• fantech Equivalent Model: ATMO 300E-EC  466333
• Warranty: 7 years on motor, 5 years on electrical components and core.

Downloads:

PREMIER 3.0E-EC Spec Sheet

PREMIER Installation and Operation Manual
