Greentek Profile Series 0.8E Energy Recovery Ventilator (ERV)

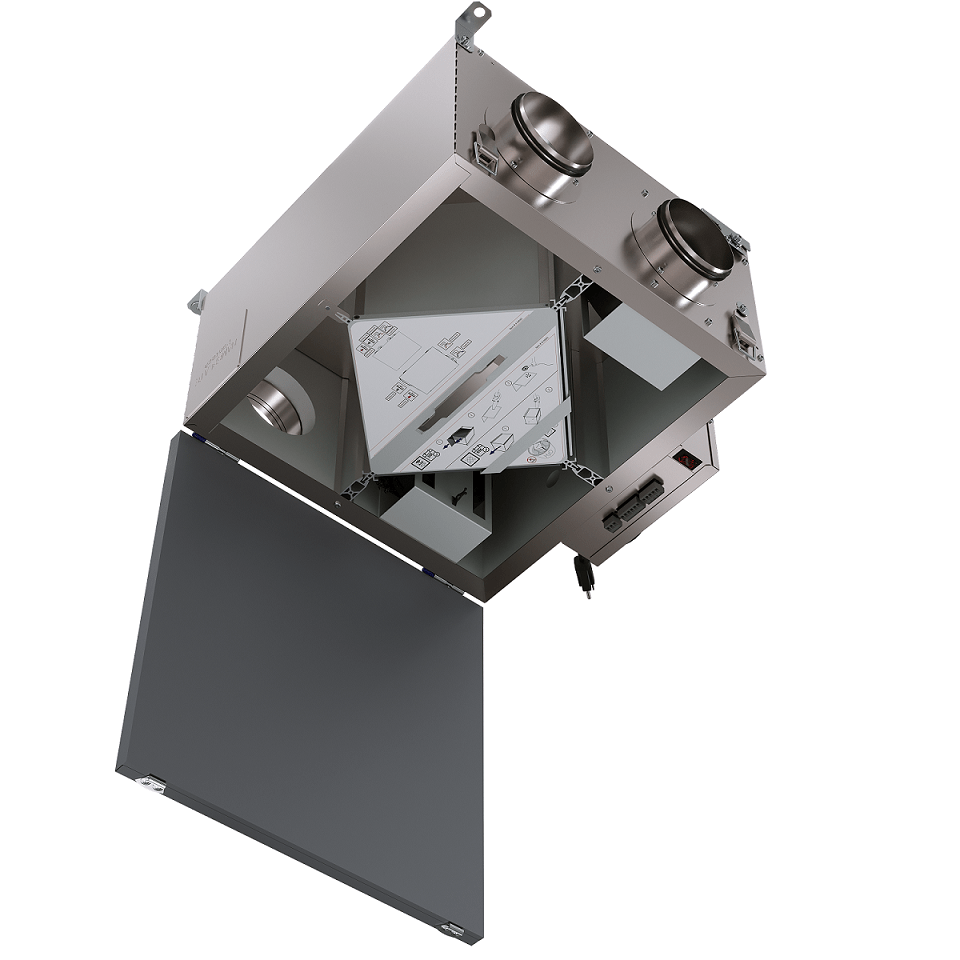

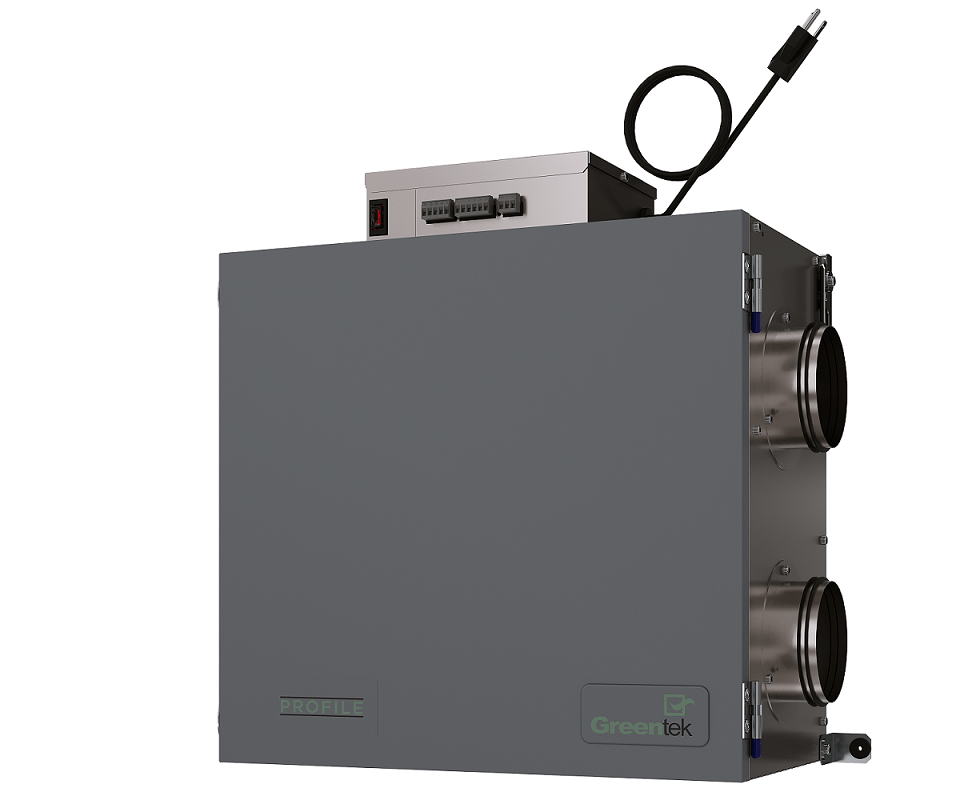

The PROFILE 0.8E offers unique features tailored for multi-family applications. The door swings or slides open, creating flexibility for building personnel to perform quick and easy maintenance. The external electrical box simplifies commissioning for contractors. With balanced ventilation performance and compact dimensions (20 5/8 in. x 21 5/8 in. x 9 1/4 in.), this ERV fits seamlessly into tight spaces.

Features

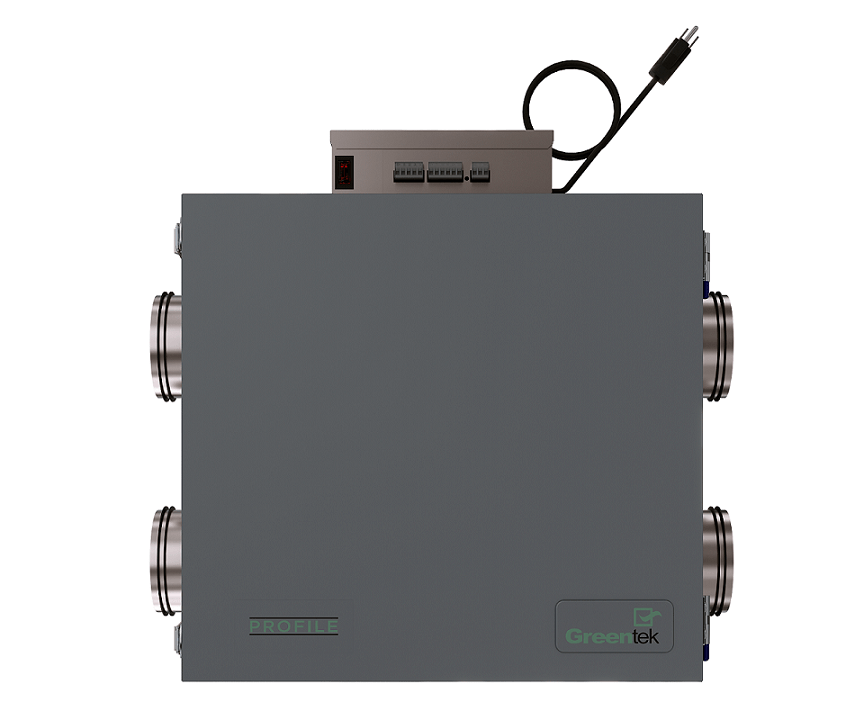

• Warm supply and return air on the right-hand side
• Compact design
• No drain required
• Easy to install on ceiling or wall with mounting bracket included
• Energy recovery core
• Electrostatic filters (washable)

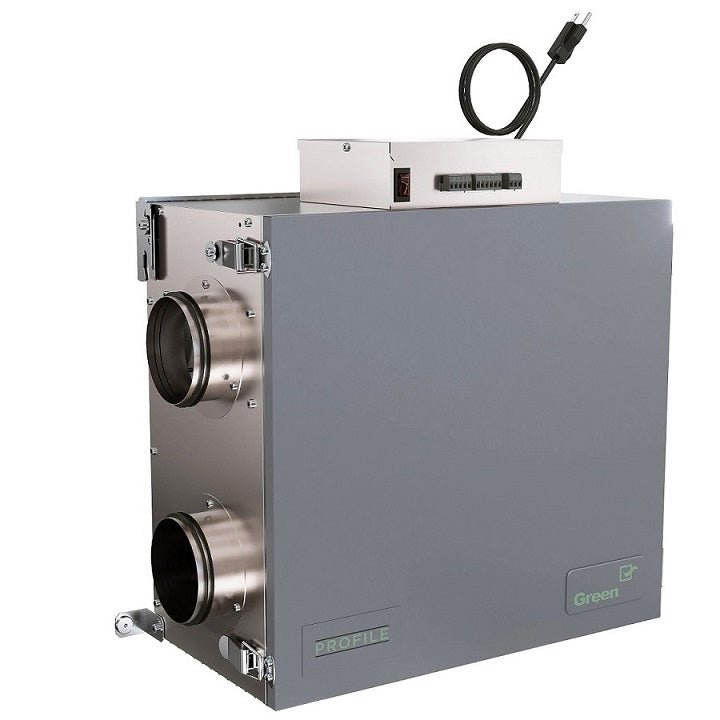

• Removable screw terminal for easy connection with external access
• Multiple speed operation
• Lightweight

Optional Controls

• STS 2.0 (461580) – Programmable touch screen wall control
• EHC 2.5 (415518) – Electronic multi-function dehumidistat
• EHC 2.0 (415520) – Multi-function controller
• T4 (415519) – Wired digital timer 20/40/60 minutes
• T5 (463915) – Pushbutton timer 20/40/60 minutes
• RD-1 (463020) – Dehumidistat

Fans

Two (2) factory-balanced fans with backward curved blades. Motors come with permanently lubricated, sealed ball-bearings to guarantee long life and maintenance-free operation.

Energy Recovery Core

Energy recovery core made from water vapor transport durable polymer membrane that is highly permeable to humidity. The ERV core is freeze tolerant, water washable, and is resistant to mold and bacteria. Core dimensions are 10 in. x 10 in. (255 x 255 mm.) with a 8 1/8 in. (207 mm.) depth.

Frost Prevention

A preset frost prevention sequence is activated at an outdoor air temperature of 14°F (-10°C) and lower. During the frost prevention sequence, the supply blower shuts down and the exhaust blower switches into high speed to maximize the effectiveness of the frost prevention strategy. The appliance then returns to normal operation, and continues the cycle.

Serviceability

4 in. (100 mm.) round metal duct connections with rubberized seal.

Duct Connections

4" (100mm) round metal duct connections with rubberized seal.

Case

22 gauge G90 galvanized corrosion resistant steel case (pre-painted door).

Insulation

Insulated with 3/4 in. (20 mm.) high density expanded polystyrene.

Filters

Two (2), UL900 certified, washable electrostatic panel type air filters 8.5" (216mm) x 8" (205mm) x 0.125" (3mm).

Installation

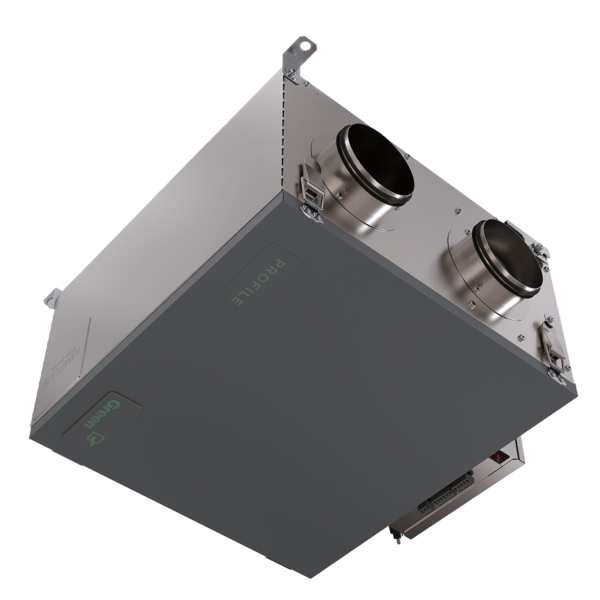

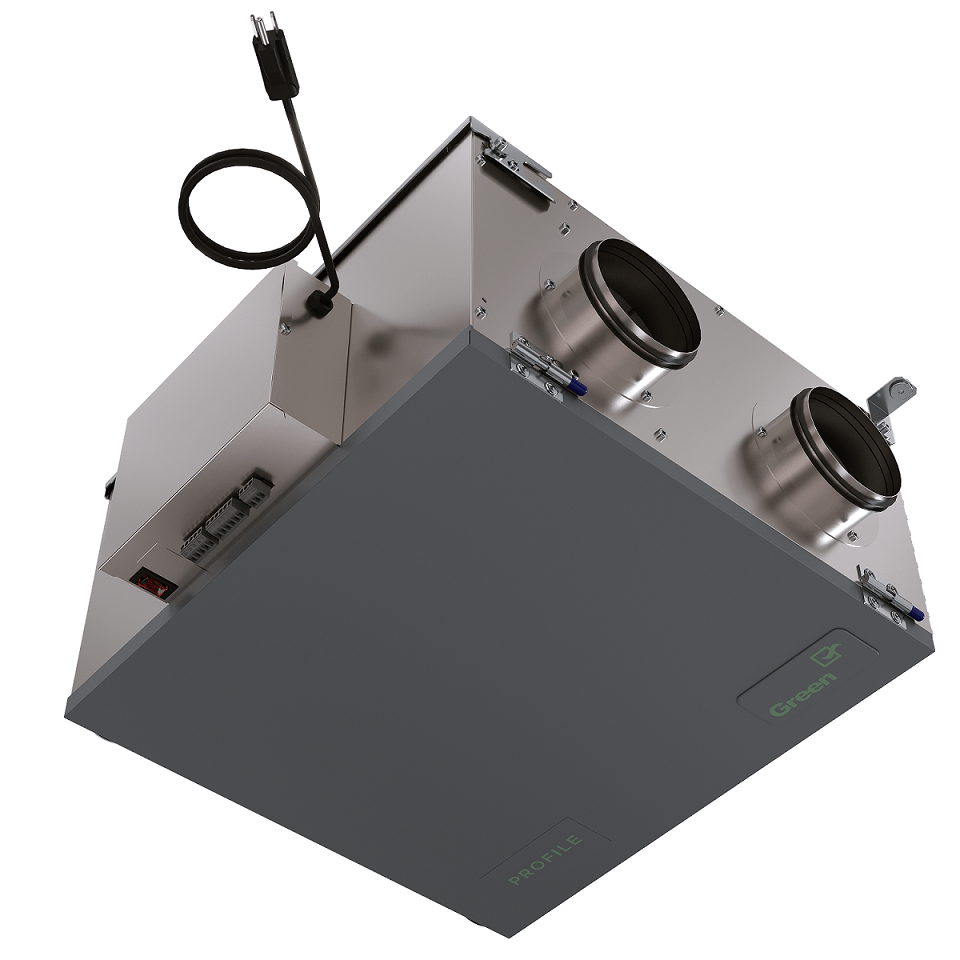

Appliance is typically installed on ceiling or wall with included mounting bracket.

Limited Warranty

7 years on the Motor, 5 years on the electrical components and the core
