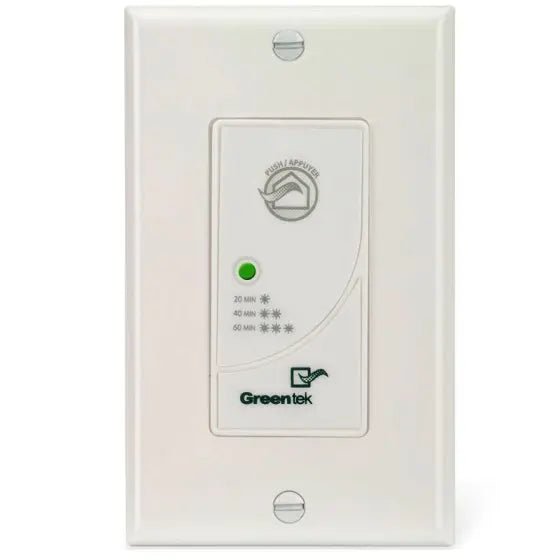

GREENTEK T-3 PUSH-BUTTON TIMER 20-40-60 MINUTES

• Manufacturer: Imperial Air
• Description: Greentek T-3 Push-button Timer 20/40/60 min. (3-wire)
• Compatibility: Please see Documents folder.
• Manufacturers’ Old Part Number: 100098
• Manufacturer's New Part Number: 463018
• Timer Compatible with all Legacy Honeywell TrueFRESH Air Exchangers
• Timer Compatible with the Greentek PH, PE, XPH, XDH, C3.14, SS3.80, and LCH Series.

• Simple user interface
• LED provides instant system feedback
• Lexan Graphic Touch Pad
• 20/40/60 minute cycle times

Features

• Press the button once the LED comes on then release, this activates the ventilation system to high speed for 20 minutes. • Press the button until the LED blinks 2 times then release, this activates the ventilation system to high speed for 40 minutes. • Press the button until the LED blinks 3 times then release, this activates the ventilation system to high speed for 60 minutes. • To turn off press button once, this will deactivate T-3 push button timer and your ventilation system will return to previous settings.
