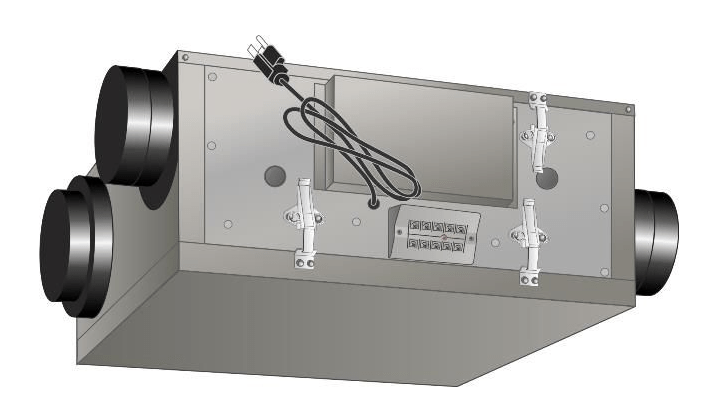

Lennox Healthy Climate ERV5-130 (ERV) - 130 CFM
Lennox Healthy Climate ERV5-130 (ERV) - 130 CFM
No reviews
Regular price
$1,498.00 CAD
Regular price
Sale price
$1,498.00 CAD
Unit price
/
per
Shipping calculated at checkout.
The Lennox Healthy Climate ERV5-130 is a 130 CFM energy recovery ventilator that exchanges stale indoor air with fresh outdoor air while recovering heat and moisture. It features 71% sensible recovery efficiency at 0°C, automatic recirculating defrost, and 5-inch oval duct connections. No drain connection is required. Lennox S40 and E30 Smart Thermostats can control HRV and ERV units without the need for a separate controller. Optional MERV 13 filters offer upgraded filtration.
Lennox ERV5-130 Specifications
- Brand: Healthy Climate
- Catalog Number: 17Y54
- Model/Part Number: ERV5-130
- Material Description: Energy Recovery Ventilator
- CFM: 130 CFM
- SRE: 71% Sensible Recovery Efficiency @ 32°F
- Duct Size: 5 Inch Oval
- Motor: PSC Two forward curved centrifugal impellers with integral motors.
- Recirculating Damper Defrost: A motorized damper temporarily stops fresh-air ventilation and recirculates exhaust air through the core to defrost it, then restores fresh airflow, repeating as needed until the temperature rises above 27°F.
- Drain Connection: Not Required
- ERV5-130 models requires an optional field installed butterfly damper for system balancing
- Door port balancing is included.
- Product Voltage: 120 VAC 1 Ph 60 Hz
- Number of Cores: Single
- Product Height: 19-3/8 Inch
- Product Width: 25-3/4 Inch
- Product Depth: 9-3/4 Inch
- Gross Weight: 45 Lbs.
- Optional MERV13 Filters part number: 20A90 (4-PACK)
Warranty: 5 years (limited warranty)
Compatible controlls and timers:
- Controls Basic 2 Speed Control Y8249
- Digital 5 Speed/4 Mode Control 27C77
- Wired 20/40/60 Minute Fan Timer Y2169
- Wireless 20/40/60 Minute Fan Timer Y8251
- Wireless Repeater Y8252
