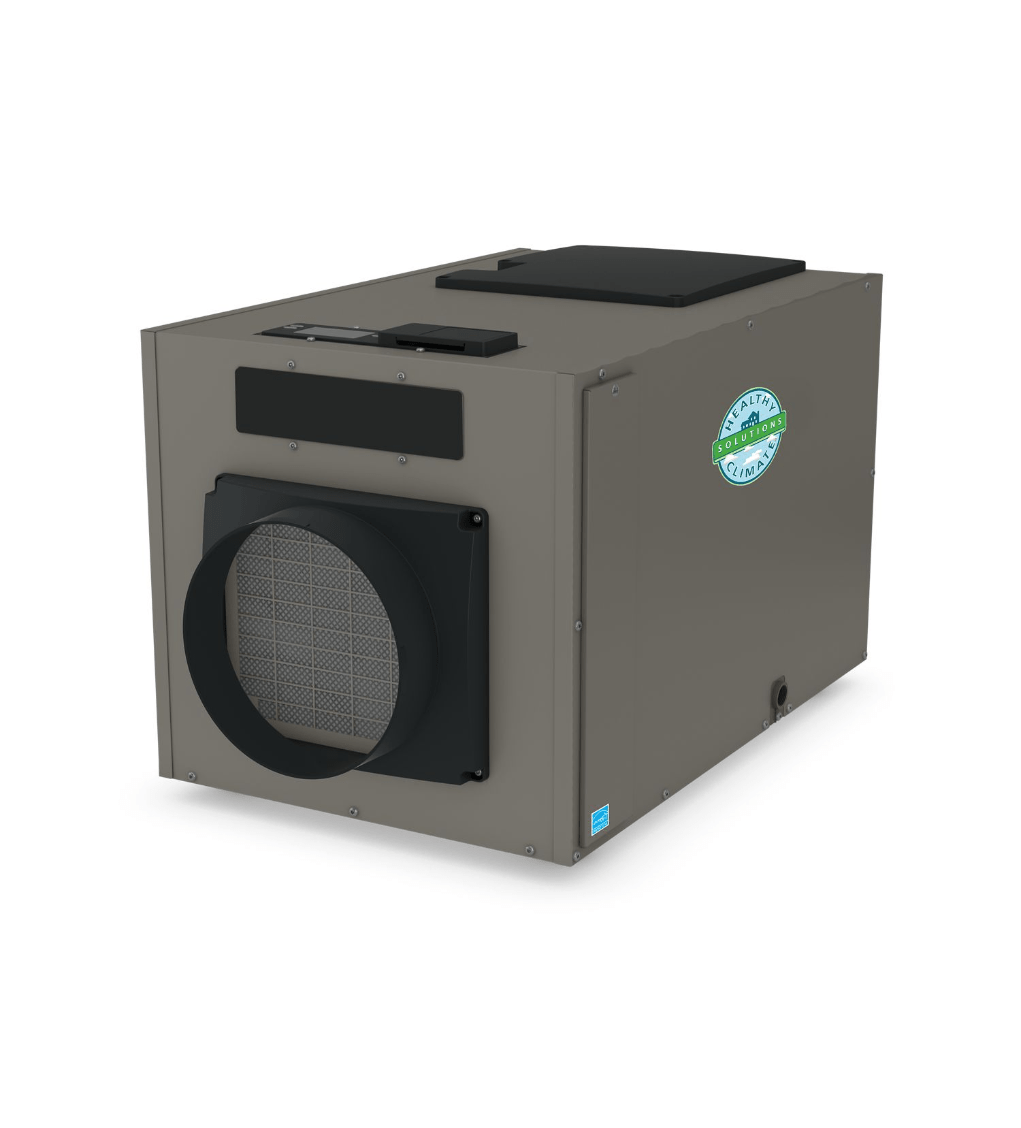

Lennox Low GWP Healthy Climate HCWHD5-130 Whole Home Dehumidifier (130-Pint) (120V)

• Lennox Healthy Climate HCWHD5-130 Whole Home Dehumidifier is designed to control humidity throughout the home or in specific locations such as an attic, crawlspace or basement
• Also used for zoned dehumidification and ventilation control
• Humidity sensor automatically and continually measures the relative humidity
• Based on sensor measurement, the unit will operate to control the humidity based on the set point
• Zoning option dehumidifies a “Primary” zone space (example: living space) or a “Secondary” zone space (example: basement) to control humidity levels in different areas as needed
• Patented, built-in ventilation feature allows fresh air to be brought into the home from the outside
• Manufacturer: Research Products Corp.
• Brand Series:   LENNOX High-Capacity Dehumidifiers
• Lennox Model:  LENNOX HCWHD5-130  (free-Standing or ducted)
• Lennox Part Number / Order Number: 28B21
• Equivalent Aprilaire Model: E130
• Airflow Capacity:  310 CFM (un-ducted)
• Voltage / Current Draw: 120 Volts / 7.3 Amps
• Refrigerant Type: R32
• Noise: 55 dBA (ducted)
• Inlet / Outlet Duct Collar Diameter : 10 inches
• 3/4″ I.D. Clear Vinyl Drain Tubing = Not Included
• Unit Weight: 115 lbs.
• Warranty: 5 Year Repair Warranty

NOTE - If the dehumidifier is installed in an attic or location requiring leak protection, the unit should be placed in a secondary condensate drain pan with a normally closed condensate overflow safety switch (float switch).
