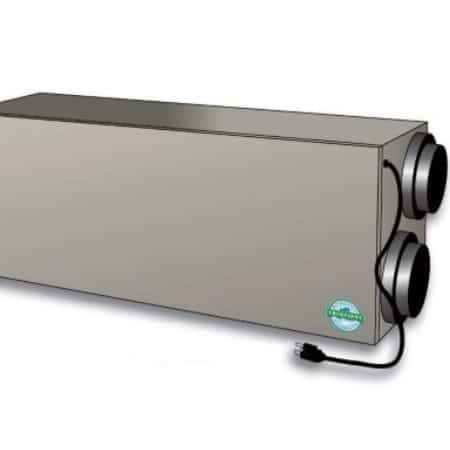

Lennox Healthy Climate HRV3-195 (HRV) - 195 CFM

Lennox Healthy Climate HRV3-195 (HRV) - 195 CFM

$2,498.00 CAD
$2,498.00 CAD
Sale Request a Quote
Shipping calculated at checkout.

The Healthy Climate HRV supplies fresh outdoor air while removing stale air, odors and contaminants in homes up to 4,000 sq. ft., recovering up to 80% of heat energy, helping reduce winter condensation and using an energy-saving Power Saver™ motor without producing ozone. Compatible with Lennox S40, E40 Smart Wi-Fi Thermostat. Optional MERV13 filter upgrade is available for better filtration.

Lennox HRV3-195 Specifications
  • Brand: Healthy Climate
  • Catalog Number:  17Y65
  • Model/Part Number: HRV3-195
  • Material Description: Heat Recovery Ventilator
  • Number of Cores: Dual
  • CFM: 195 CFM
  • SRE: 80% Sensible Recovery Efficiency @ 32°F
  • Duct Size: (2) 6 outside, (2) 7 inside, (1) 6 defrost (round)
  • Motor: PSC Dual centrifugal style blowers with single dual shaft motor
  • Damper defrost: During defrost a motor driven damper door mechanism closes off the supply air from outside allowing the fifth port to open, enabling warm room air to be drawn in from around the unit. During defrost cycle stale air exhaust is still occurring. After the defrost period, the damper operates in the opposite direction to reopen the fresh air port. Defrost cycle repeats until the temperature rises above 27°F. The defrost port can also be ducted to another location.
  • HRV3-195 HRV requires an optional field installed butterfly damper for system balancin
  • Product Voltage: 120 VAC 1 Ph 60 Hz
  • Product Height: 19 Inch
  • Product Width: 49 Inch
  • Product Depth: 14-3/4 Inch
  • Gross Weight: 96 Lbs.
  • Optional MERV13 Filters part number: 20A91 (4-PACK)
Warranty: 5 years (limited warranty)

Compatible controlls and timers:
  • Controls Basic 2 Speed Control Y8249
  • Digital 5 Speed/4 Mode Control 27C77
  • Wired 20/40/60 Minute Fan Timer Y2169
  • Wireless 20/40/60 Minute Fan Timer Y8251
  • Wireless Repeater Y8252
