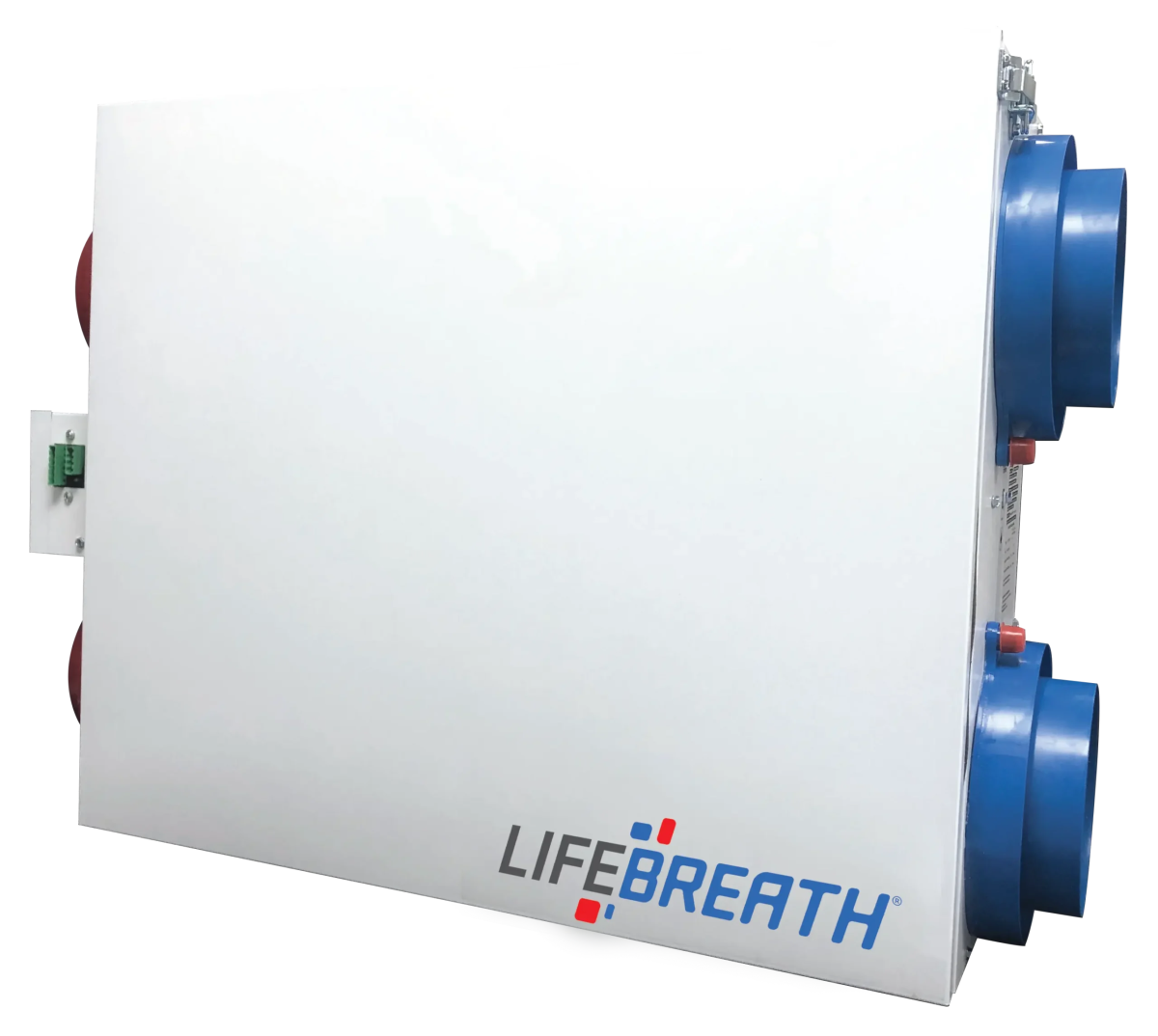

Lifebreath MAX-XTR Energy Recovery Ventilator (ERV) 184 CFM

Lifebreath MAX-XTR ERV is the Next Generation of Compact Design & Efficiency Designed for high-rise condos, apartments, and townhomes with limited mechanical space

• 184 CFM @ .3″ w.g / 84% (SRE) at 64 CFM and 0°C (32°F)
• 6" (152 mm) Collars
• AUTO BALANCING
• Fan defrost cycle, no drains required

• Square ERV core
• Ideal for condo/apartments
• Ceiling or wall mounted
• High Efficiency ECM motors
• Hardwired, Mirrored, and Fault Indicator Display configurations available
• Title 24 Compliant. A FID enabled ERV is capable of displaying error codes for certain types of faults which impact operation of the system. FID Version Only


Features

• AUTO BALANCE DXPL03 - control allows airflow to be selected for both supply and exhaust air streams. Live air pressure measurements enable automatic and continuous adjustment of fan speeds to ensure constant user-selected airflow.
• TOTAL RECOVERY CORE - Cross-flow energy recovery core transfers heat and water vapor between two airstreams. Easily removed for cleaning or service.
• MOTORS AND BLOWERS - Each airstream has an independent EC motorized impeller with multiple fan speed operations.
• MERV 6 FILTERS - Washable air filters in exhaust and supply airstreams.
• MOUNTING - Mounting brackets supplied for ceiling or wall installation
• FROST PREVENTION - Temperature sensor activated, periodically shuts down supply motor. Drains are not required.
• CASE - 20 gauge prepainted galvanized steel for superior corrosion resistance, insulated to prevent exterior condensation.

Warranty

Units carry a 5-year warranty on the ERV core and a 5-year replacement
