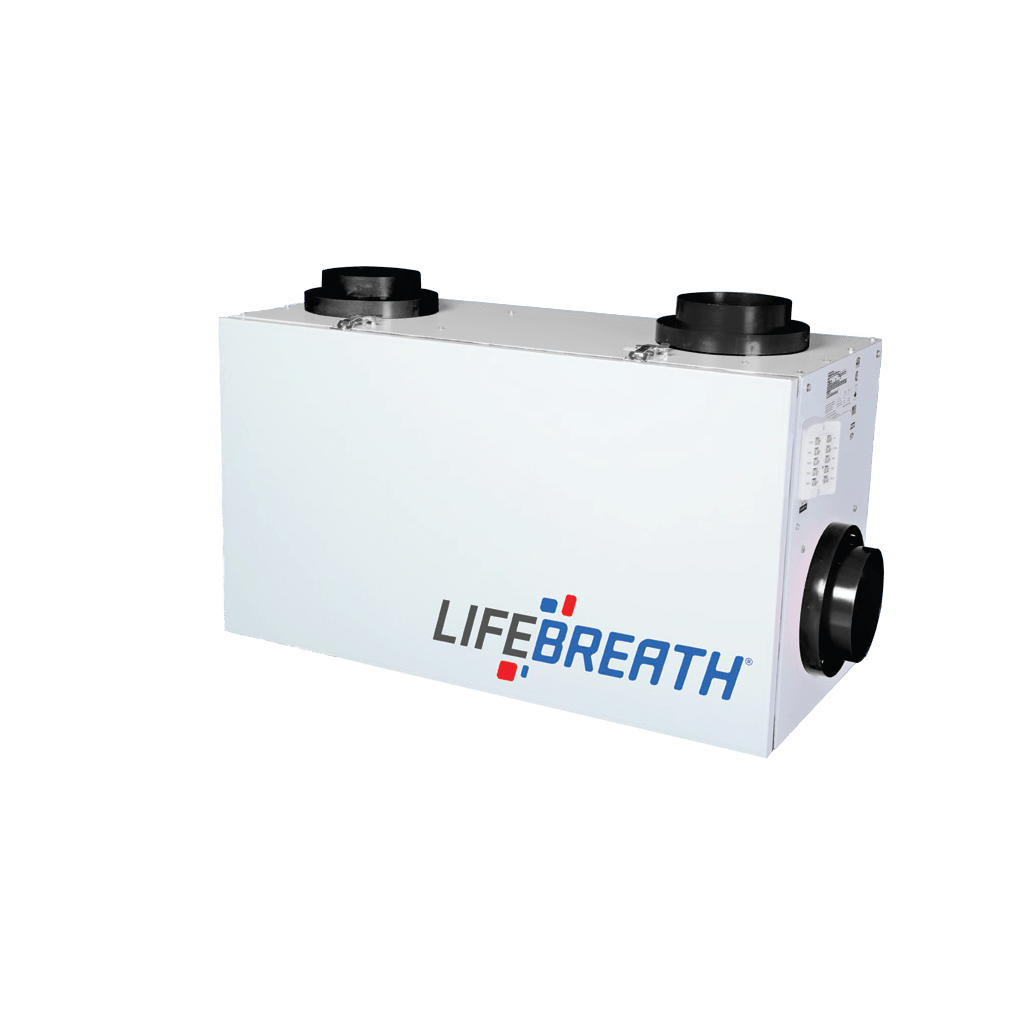

Lifebreath RNC 200 (HRV) - 203 CFM
Lifebreath RNC 200 (HRV) - 203 CFM
The Lifebreath RNC 200 is a high-performance heat recovery ventilator designed for residential applications. Delivering 203 CFM with exceptional cold weather performance, this unit features a patented thermally conductive aluminum core that efficiently transfers heat between supply and exhaust airstreams. The cross-flow design is easily removable for maintenance. Equipped with dual centrifugal blowers, washable filters (MERV-13 upgrade available), and a recirculating damper defrost system, the RNC 200 maintains optimal indoor air quality year-round. Six-inch collars, adjustable door port balancing, and installer-selectable speed settings provide flexible installation and operation. Galvanized steel construction with superior corrosion resistance ensures durability in demanding Canadian climates.
- 203 CFM @ .3″ w.g / 65% (SRE) at 61 CFM and 0°C (32°F)
- 6" (152 mm) Round Collars
- Cross Flow Core
- Door Port Balancing & Adjustable Dampers
- Outstanding Cold Weather Performance
- THERMALLY CONDUCTIVE, PATENTED ALUMINUM CORE The cross-flow heat recovery core transfers heat between the two airstreams. It is easily removed for cleaning or service.
- MOTORS AND BLOWERS Each airstream has one centrifugal blower driven by a common PSC motor, with multiple fan speed operations.
- FILTERS Washable air filters in exhaust and supply airstreams.Upgrade to MERV-13 option available.
- MOUNTING Four threaded inserts at corners of the cabinet designed to accept the “S” hooks and hanging straps supplied with the unit.
- DEFROST Recirculating damper defrost system. CASE Twenty gauge prepainted galvanized steel for superior corrosion resistance. Insulated to prevent exterior condensation. Drain connections 2 - 1/2 in. (12 mm) OD. Balancing ports are located on door.
- INSTALLER SELECTABLE HIGH SPEED SETTINGS Adjustable DIP switches are located on the circuit board, Hi3 is the factory setting. Refer to the installation manual for the adjustment instructions.
- ELECTRONICS The optional control can be wall mounted in a central location of the home. 3 wire 20 gauge (min.) 100 ft length (max.).
