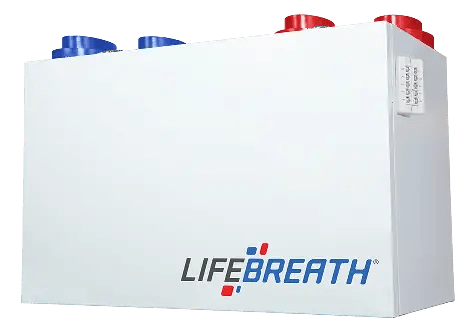

Lifebreath RNC 205 Heat Recovery Ventilator (HRV)

• 182 CFM @ .3″ w.g / 76% (SRE) at 64 CFM and 0°C (32°F)
• 6" (152 mm) Collars
• High Efficiency Hex Core
• Door Port Balancing & Adjustable Dampers
• Top Ported
• Outstanding Cold Weather Performance

THERMALLY CONDUCTIVE, PATENTED ALUMINUM CORE

The counter-flow heat recovery core transfers heat between two airstreams. It is easily removed for cleaning or service.

MOTORS AND BLOWERS

Each airstream has one centrifugal blower driven by a common PSC motor, with multiple fan speed operations.

FILTERS

Washable air filters in exhaust and supply airstreams.

MOUNTING

Four threaded inserts at corners of the cabinet designed to accept the “S” hooks and hanging straps supplied with the unit.

DEFROST

Recirculating damper defrost system. CASE 20 gauge prepainted galvanized steel for superior corrosion resistance. Insulated to prevent exterior condensation. Drain connections 2 - 1/2 in. (12 mm) OD. Balancing ports are located on door.

INSTALLER SELECTABLE HIGH SPEED SETTINGS

Adjustable DIP switches are located on the circuit board, Hi3 is the factory setting. Refer to the Installation manual for the adjustment instructions.

ELECTRONICS

The optional control can be wall mounted in a central location of the home. 3 wire 20 gauge (min.) 100 ft length (max.).
