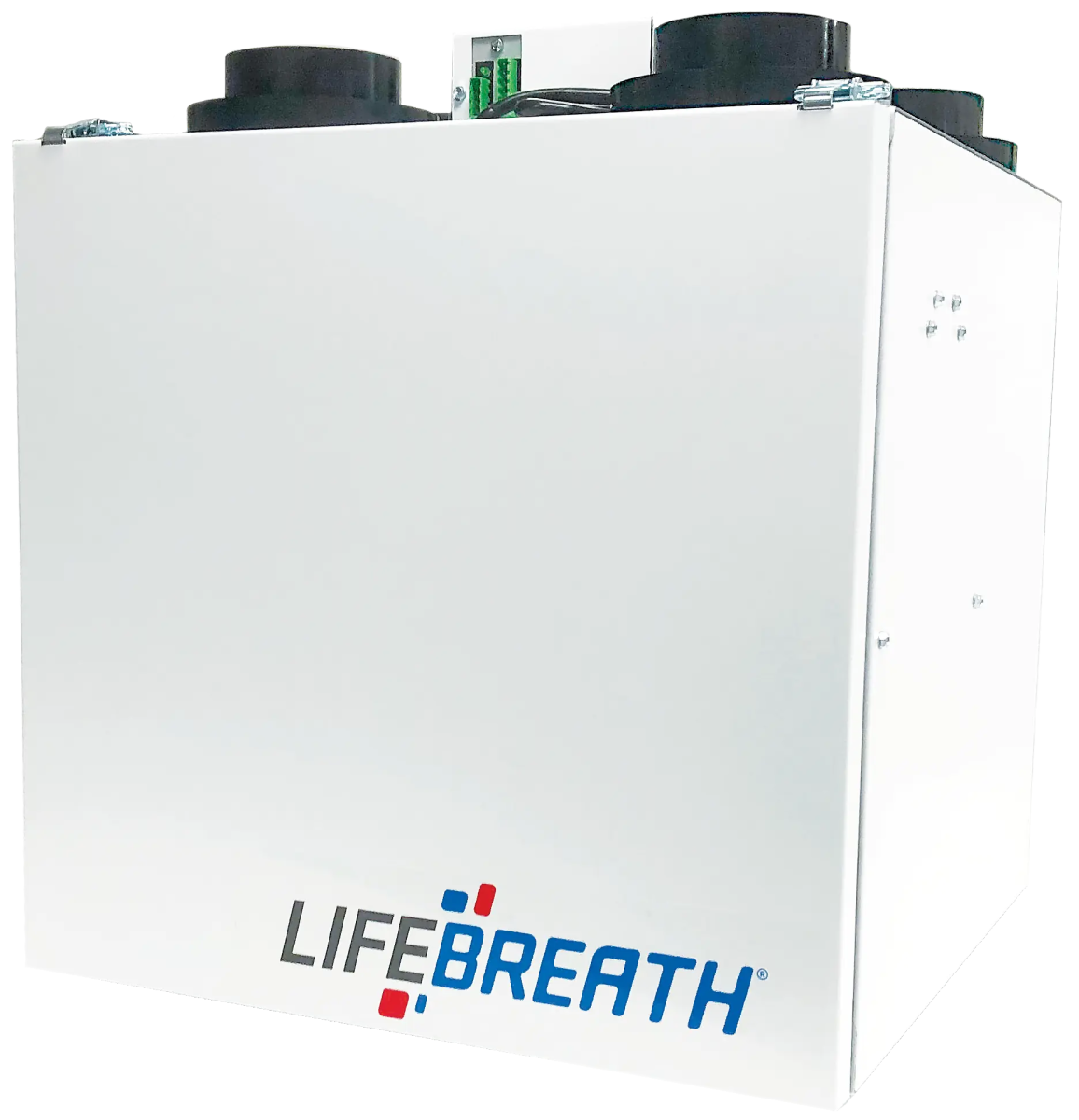

Lifebreath RNC Series RNC 88 Compact HRV

Features

• 91 cfm @ .3 w.g / 60% (SRE) at 64 CFM and 0°C (32°F)
• Cross Flow Core
• Top Port Duct Connections
• Super Compact Design
• -25°C HVI Cold Weather Certified

THERMALLY CONDUCTIVE, PATENTED ALUMINUM CORE

The cross-flow heat recovery core transfers heat between the two airstreams. It is easily removed for cleaning or service.

MOTORS AND BLOWERS

Each airstream has an independent motorized impeller with multiple fan speed operations.

FILTERS

Washable MERV-6 air filters in exhaust and supply airstreams.

MOUNTING

Four threaded inserts at corners of the cabinet designed to accept the “S” hooks and hanging straps supplied with the unit.

DEFROST MODE

Fan defrost mode is temperature sensor activated, and periodically shuts down supply air motor.

CASE

Twenty gauge prepainted galvanized steel for superior corrosion resistance. Insulated to prevent exterior condensation. Two drain connections, both are 1/2 in. (12 mm) OD. Balancing ports are located on unit.

INSTALLER SELECTABLE HIGH SPEED SETTINGS

Adjustable DIP switches are located on the circuit board, Hi3 is the factory setting. Refer to the installation manual for the adjustment instructions.

ELECTRONICS

An optional control can be wall mounted in a central location of the home. 3-wire 20 gauge (min.), 100 ft length (max.).

Warranty

Units carry a lifetime warranty on the HRV core and a 5-year replacement parts warranty.
