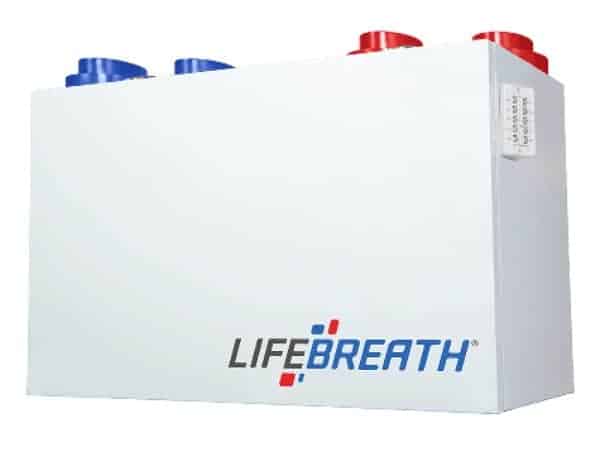

Lifebreath RNC6-HEX-TPD Heat Recovery Ventilator (HRV)

• 95 CFM @ .3″ w.g / 75% (SRE) at 64 CFM and 0°C (32°F)
• Counter Flow Core
• Door Port Balancing & Adjustable Dampers
• Top Ported
• Energy Star: This product earned the ENERGY STAR® by meeting strict energy efficiency guidelines set by Natural Resources Canada and the US EPA. It meets ENERGY STAR® requirements only when used in Canada
• THERMALLY CONDUCTIVE, PATENTED ALUMINUM CORE The cross-flow heat recovery core transfers heat between the two airstreams. It is easily removed for cleaning or service.
• MOTORS AND BLOWERS Each airstream has one motorized impeller with multiple fan speed operations.
• FILTERS Washable air filters in exhaust and supply air streams.
• MOUNTING Four threaded inserts at corners of the cabinet designed to accept the “S” hooks and hanging straps supplied with the unit.
• DEFROST Recirculating damper defrost system.
• CASE Twenty gauge prepainted galvanized steel for superior corrosion resistance. Insulated to prevent exterior condensation. Drain connections 2 - 1/2 in. (12 mm) OD. Balancing ports are located on door.
• INSTALLER SELECTABLE HIGH SPEED SETTINGS Adjustable DIP switches are located on the circuit board, Hi3 is the factory setting. Refer to the Installation manual for the adjustment instructions.
• ELECTRONICS The optional control can be wall mounted in a central location of the home. 3 wire 20 gauge (min.) 100 ft length (max.).
