• Manufacturer: Nu-Air Ventilation Systems Inc.
• Model Series: Ceiling Mount Series
• Model Description: ES115E ERV
• Ventilation Performance: 109 cfm @0.4 in. wg
• Manufacturers’ Part Number: ES115E  ERV
• Wall Controller Included: none
• Core Type: Energy Recovery Ventilator (ERV)
• Defrost Type: Fan defrost
• Heat Recovery Rate: 72%
• Moisture Transfer rate: 78%

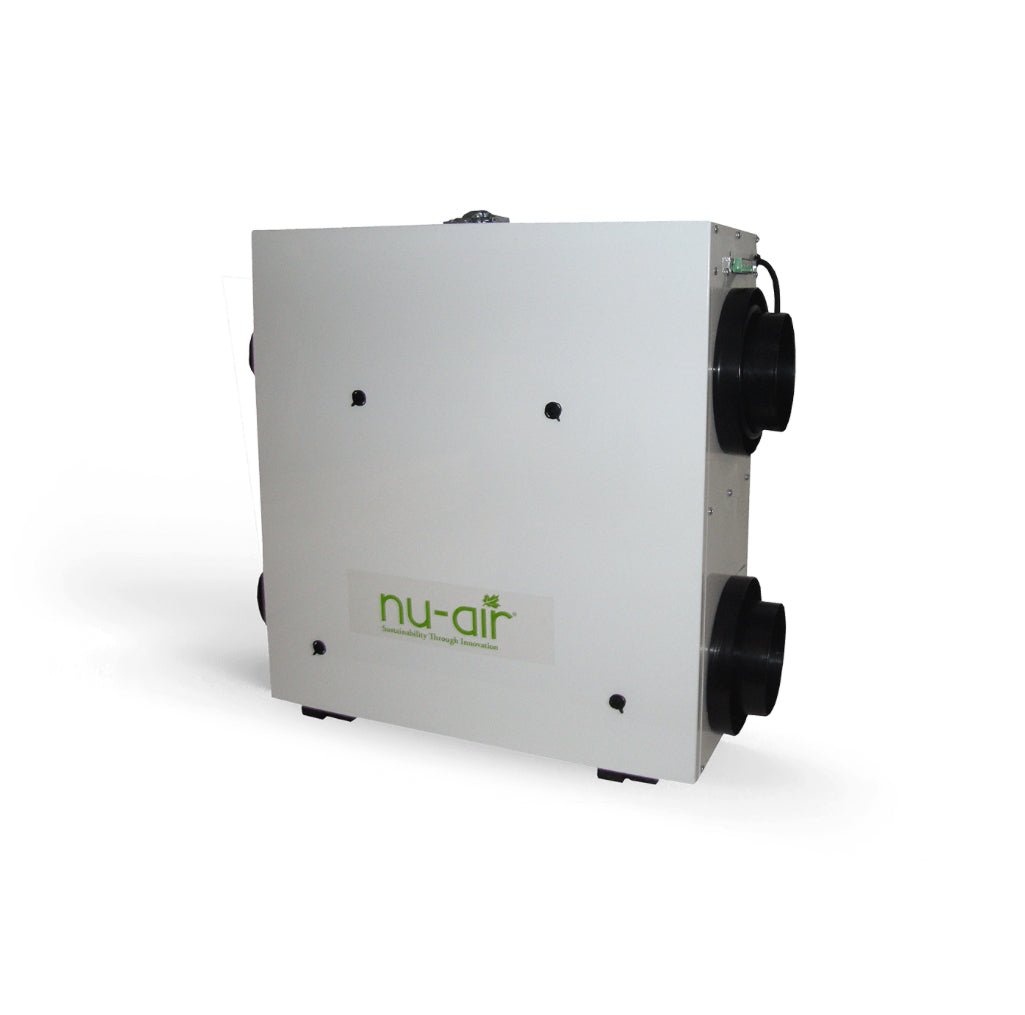

The compact solution for installation in concealed and tight spaces.

• Install in any orientation.
• Lightweight aluminum construction–only 22 lbs

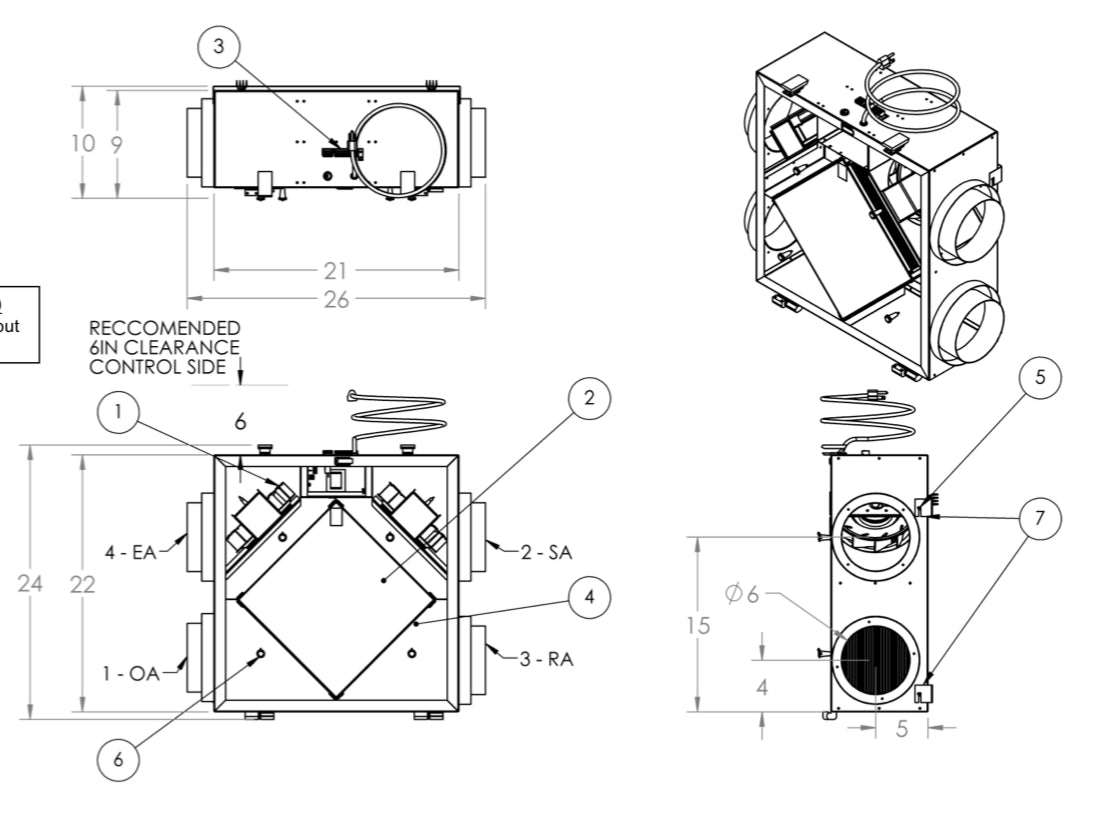

• Cabinet LxHxW: 21 x 9 x 22 inches
• Duct Connections: 6-inch round, side
• High efficiency crossflow ERV core with latent and sensible energy recovery
• Adjustable straps AND metal brackets included for your choice of easy mounting
• Removable wire blocks for safe wiring at floor level
• Pressure ports for easy and accurate air flow measurement and balancing
• BLOWERS: Two backward curve impellers using PSC motors and permanently sealed bearings.
• 5 year parts warranty, 5 year ERV core warranty

• Electrical: 115-120/1/60

Downloads:

ES115E Manual

ES115E Specifications
