• Manufacturer: Nu-Air Ventilation Systems Inc.
• Model Series: Residential Series

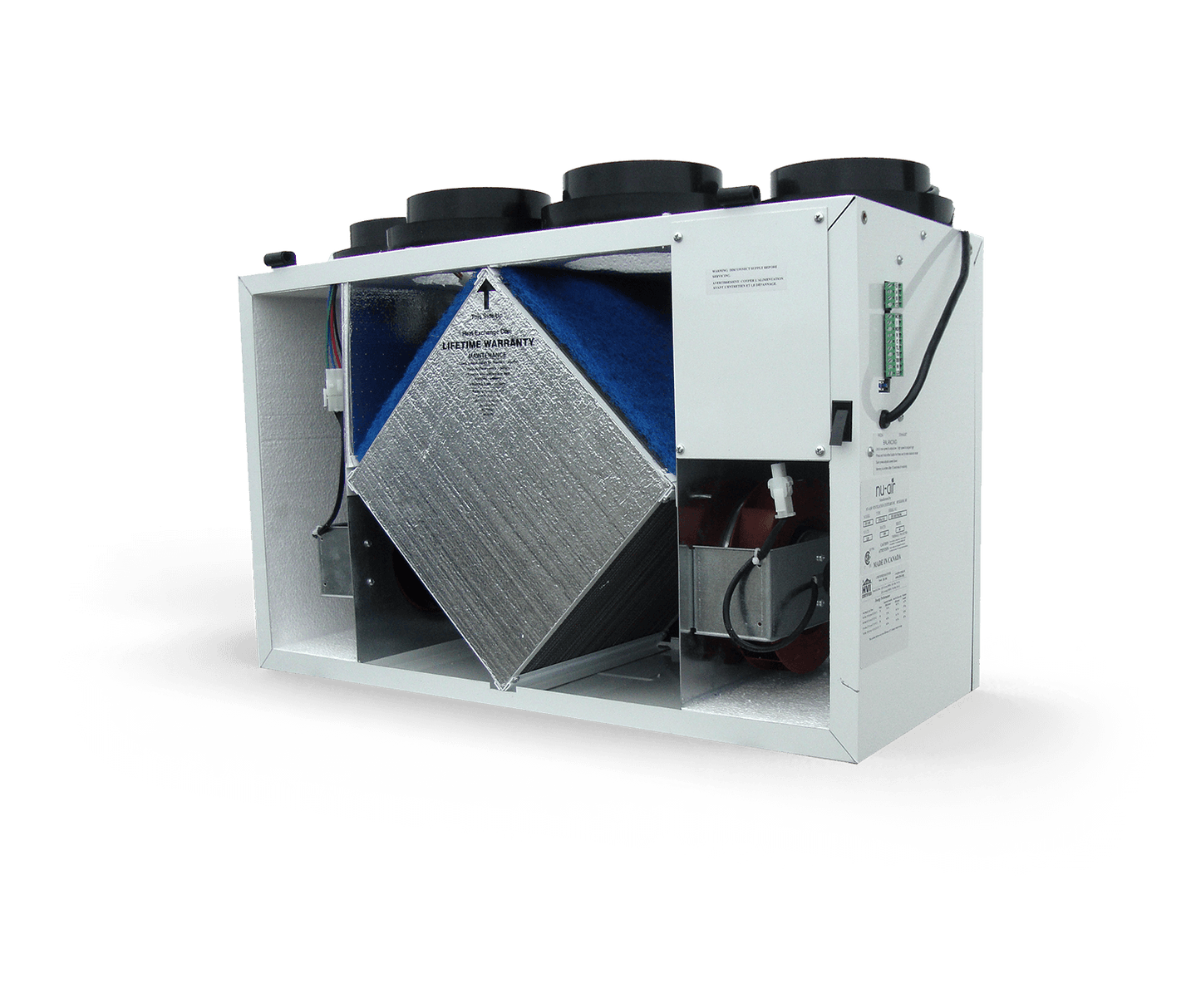

• Model Description: SE182 ERV
• Ventilation Performance: 180 cfm @0.4 in. wg
• Manufacturers’ Part Number: SE182 ERV
• Wall Controller Included: none
• Core Type: Energy Recovery Ventilator (ERV)
• Defrost Type: Fan defrost
• Heat Recovery Rate: 75%
• Moisture Transfer rate: 80%

A highly efficient unit, performance-certified to the industry’s most extreme low-temperature test requirements.  The flexible SE182E design suits a variety of field requirements and meets Ontario A1, A2, A4, A5, A6 Compliance Packages.

• High efficiency crossflow ERV core with latent and sensible energy recovery
• Unique adaptive frost management system for cold-climate installations
• Lightweight aluminum construction–only 38 lbs
• No drain required
• Duct Connections: 6-inch round, side and top
• Defrost Type: Fan defrost
• 2-door construction for easy field-reversal
• Cabinet LxHxW (including duct connections): 29 x 22 x 17 inches
• Adjustable straps for easy one-person mounting
• Removable wire blocks for safe wiring at floor level
• Pressure ports for easy and accurate air flow measurement and balancing
• 5 year parts warranty, 5 year ERV core warranty
• Electrical: 115-120/1/60

Downloads:

SE182 Manual

SE182 Specifications
