Regency F5200 Wood Stove Main Assembly Parts

Multiple main assembly replacement parts for Regency F5200 Wood Stove.

Includes the following:

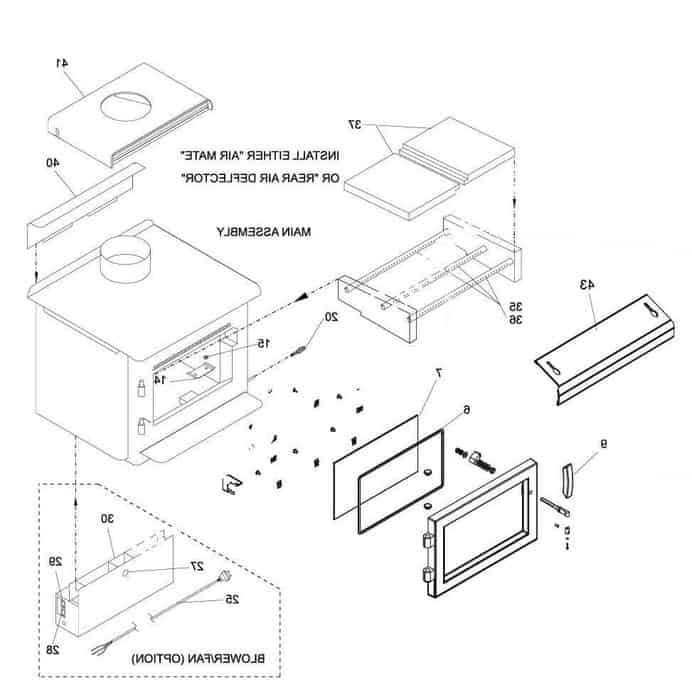

Main assembly parts:

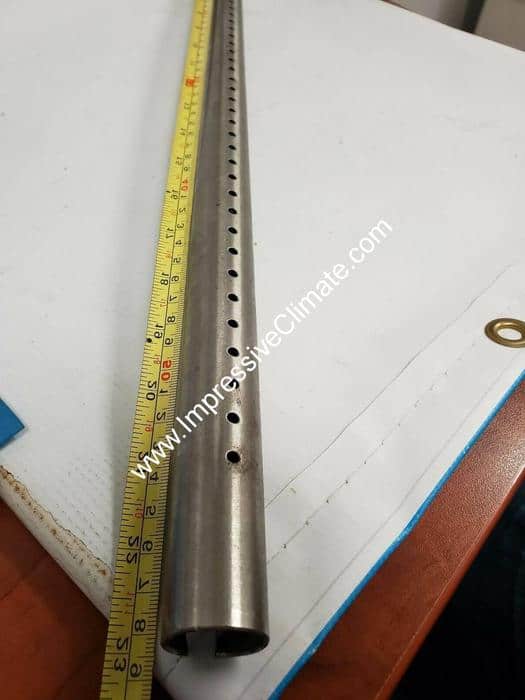

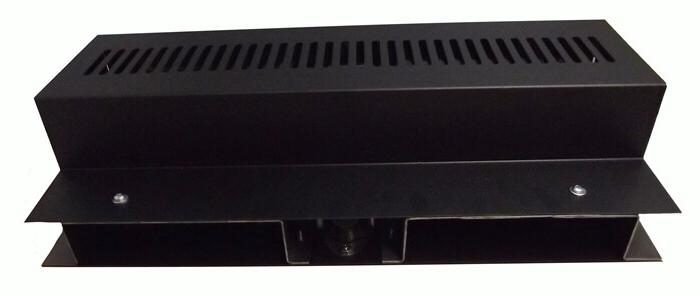

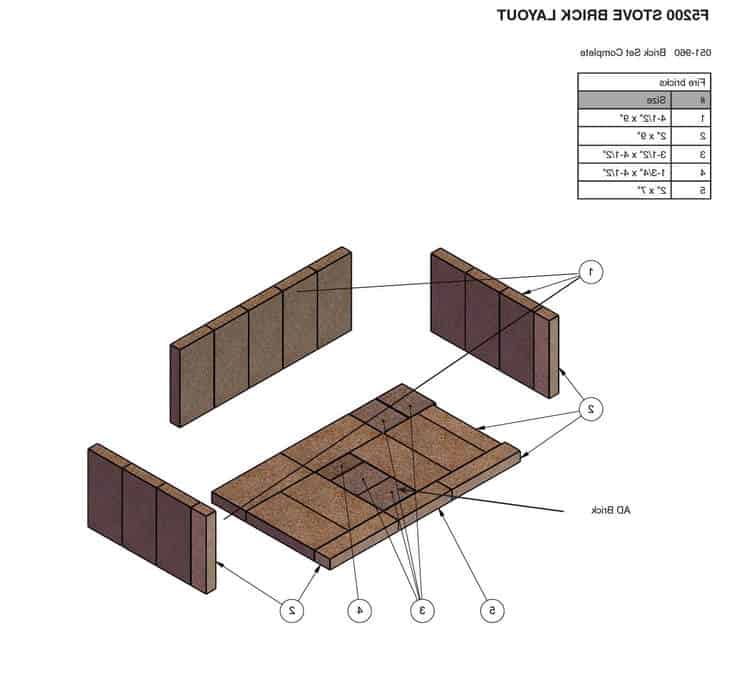

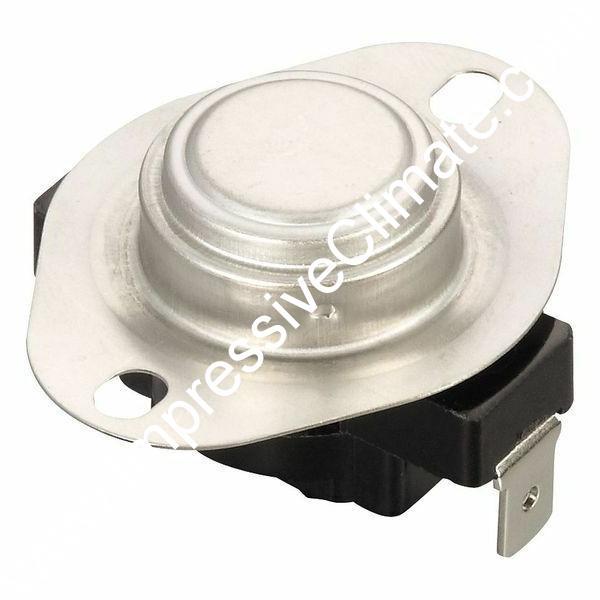

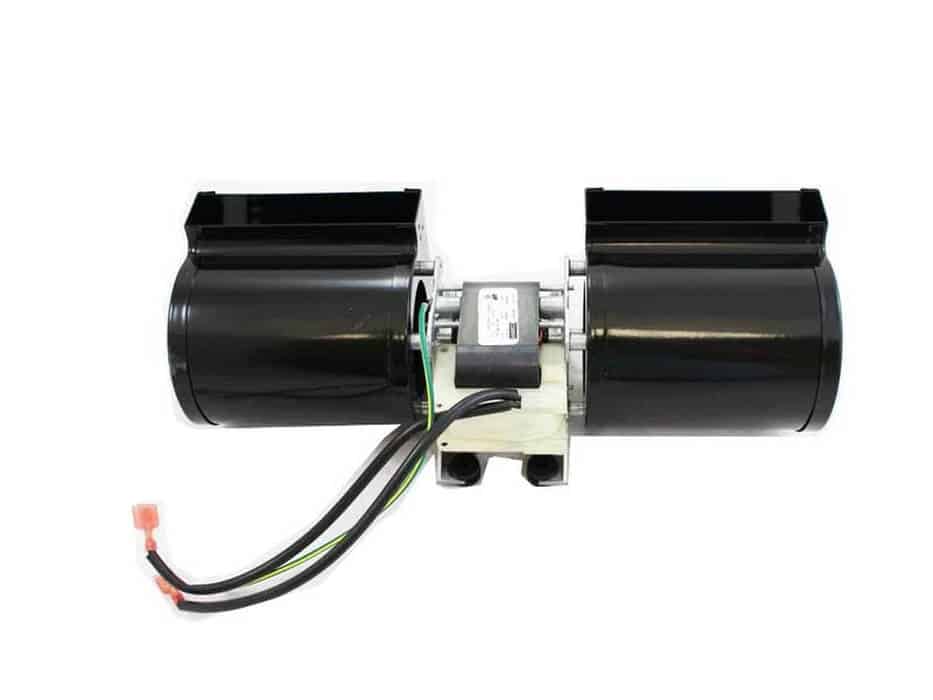

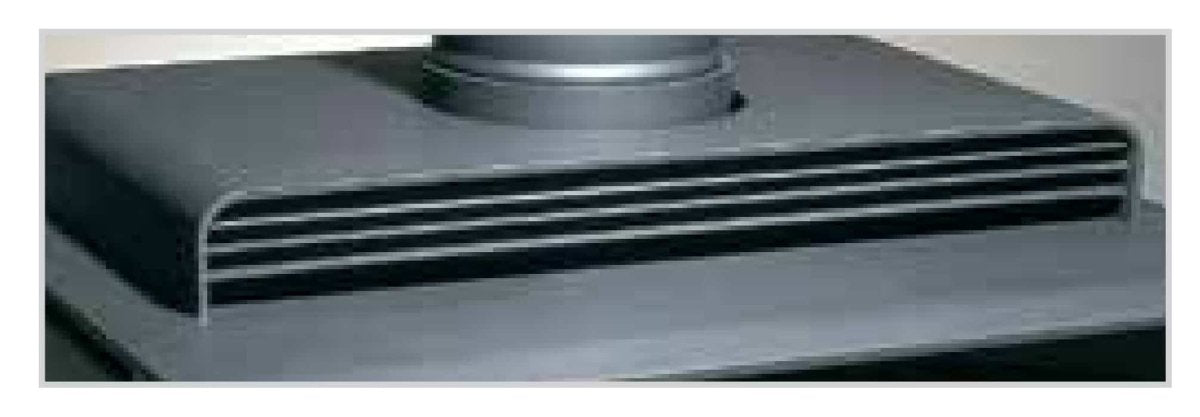

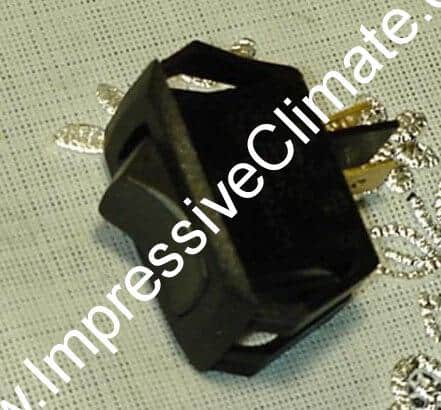

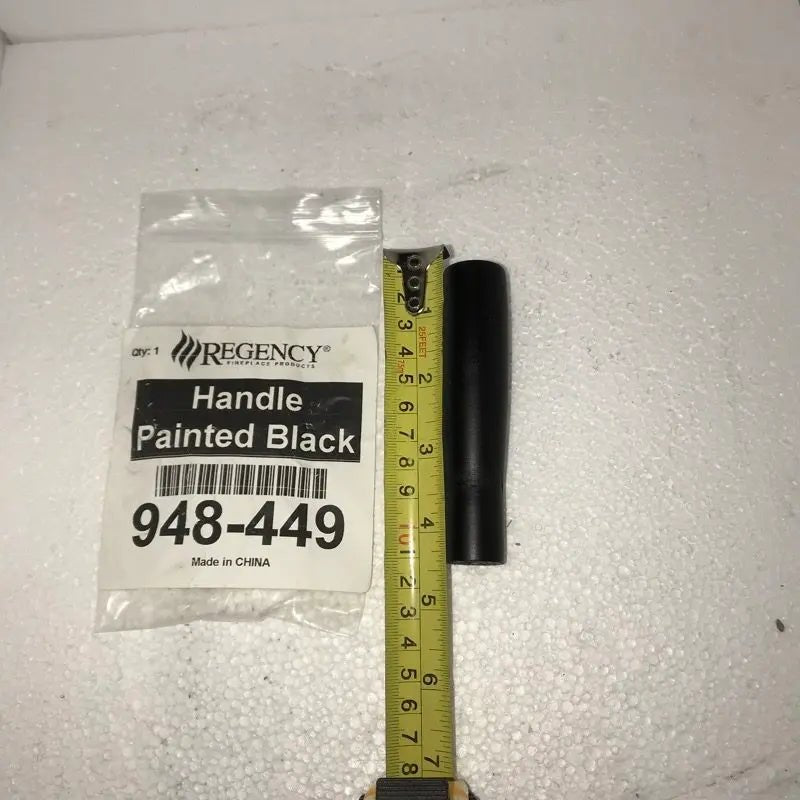

Cast door assembly 051-539 Side heat shield RH 051-004 Side heat shield LH 051-005 Pedestal assembly 051-513 Rear heat shield assembly Airmate 8" 051-912 Complete Fan assembly 846-515 Replacement motor only 910-157/P Auto/manual switch 910-138 Hi/Off/Low switch 910-140 Fan Thermodisc 910-142 Removable arm assembly 051-538 wooden handle 948-449 Removable cast handle 156-241 Handle holder 051-018 Thermometer 051-067 Cast bypass door (not shown) 051-211 bypass gasket/ft (not shown) 936-074 Catalytic combustor assembly (not shown) 051-530 Air tube 1" x 23" (not shown) 063-954 Stainless steel smoke deflector 051-003 Door hinge assembly 051-509 Door catch assembly 106-561 Removable cast handle 156-241 Brick Kit Complete



Applicable Models: F5200. Please check part number, as it may work in other Regency appliances as well.
