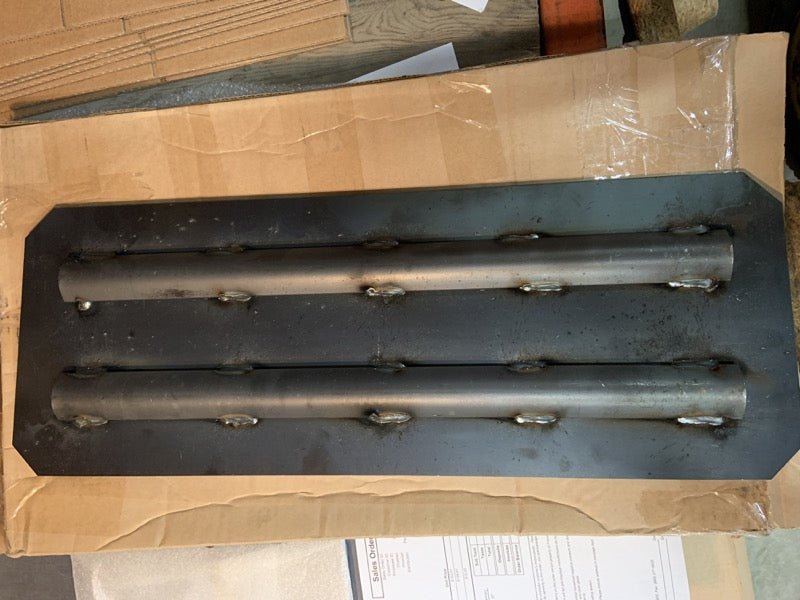

Regency Top Baffle 060-951

Top Baffle Part# 060-951 is the replacement baffle for official Regency Radiant series of wood inserts (old).

Fits in followings:

Wood inserts-Regency:
Regency R6 Radiant Wood Insert

Products Description:

This is a genuine official Regency replacement baffle for their Radiant series of wood inserts (old).  This top baffle measures 1/4″ x 24.5″ x 9″. This is a baffle for older R6 Regency wood burning inserts.  It measures 1/4″ x 24.5″ x 9″.  This baffle will fit Regency R6 wood inserts manufactured from January 1986 to July 1988. Purpose: Baffles in wood burning appliances are designed to keep the heat inside the firebox to ensure a clean burn.  They also protect the top of the appliance from over heating.  If they are damaged, cracked or deteriorating in any way, they should be replaced. Installation tips: Often to there is a trick in replacing top baffles. It will take some time and patience. Great installation tips from one of our customers:

• Put gloves on..unless you like swearing
• remove all the ashes
• remove the bottom and side bricks (you can leave the back ones in)
• pull the baffle to the front so that it drops down in front of the door
• it is now standing on edge – push the bottom of the baffle towards the back so that it is laying upside down on the bottom.
• raise one side of the baffle so that it is sitting diagonally from top to bottom
• pull the higher side towards you while you push the lower side towards the back
• with a little wiggling, it will come out
• wash your mouth out with soap and replace bricks.

Other Notes: This baffle has 4 notches in it.
