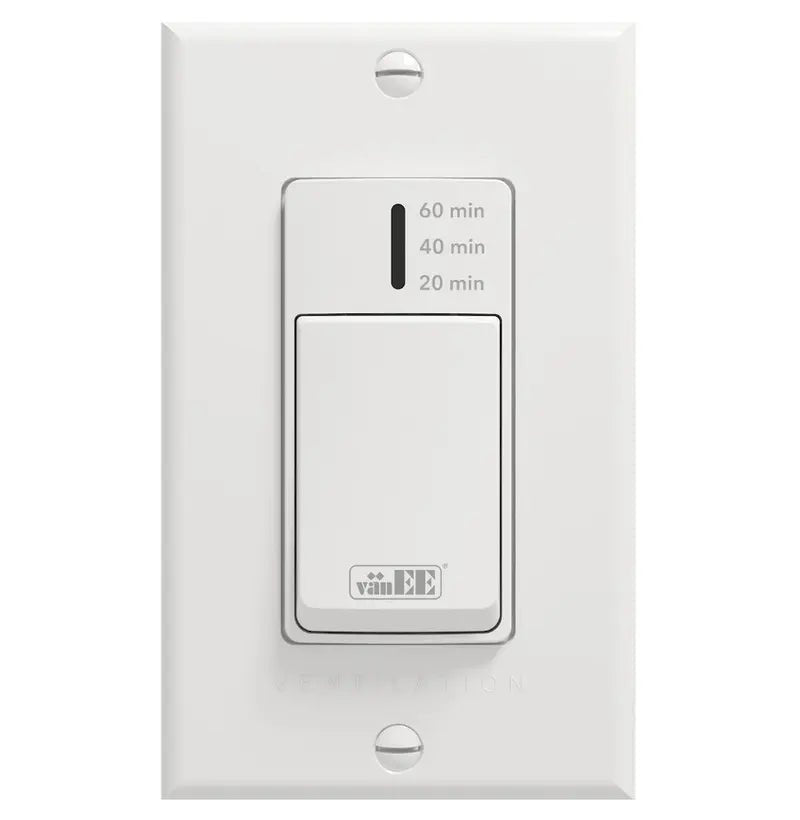

vanEE 20-40-60 Push Button Timer 41300 *DISCONTINUED*

vanEE 20-40-60 Push Button Timer 41300 *DISCONTINUED*

$44.00 CAD
$48.00 CAD $44.00 CAD
Sale Request a Quote
Shipping calculated at checkout.
  • Manufacturer: Venmar Ventilation ULC
  • Model Series: vanEE AI Series
  • Model Description: 20-40-60 min. Bathroom timer (4-Wire)
  • Manufacturers’ OLD Part Number: 41300
  • Manufacturers’ NEW Part Number: 41100
  • Compatibilty: vanEE AI Series
Note these new 41100 timers are not compatible with the old style 1806110, 03701, 03364 or 12030 (3-WIRES) timers.
  • You cannot mix and match the timers on the same unit.
  • They either all must be the old style, or all must be 41100
NOTE If you have the older Venmar terminal block,  wiring is as follows:
  • B >>> GND
  • OL >>> OVR
  • OC >>> 12V

The new timers can be hooked up with 3 or 4 wires. The lighting will work differently if using only 3 wires. On the terminal block of the air exchanger, remove the wire plugged into 'I' and move it to 'B'. If there is already something plugged into 'B', you will have to splice that wire with the wire you just removed from 'I'. Once that is done, you will plug in as follow: B= GRND, OL= OVR, OC = 12V.

Brand Compatible Model
vanEE V110H65RT/RS , V130H65RT/RS , V130E65RT/RS , V150H75NT/NS, V150E75NT/NS, V160H65RT/RS, V160E65RT/RS, V160H75RT/RS, V160E75RT/RS ,  V180H75RT, V180E75RT, V210E75RT, V210E75RS, V230H75RT, V230H75RS 40E, 40H+,  50H, 60H-V+, 90H-V+, 90H-V ECM ERV, 90H-V ECM HRV, 200H 65H HRV, 65E ERV, 70E ECM, 70E ECM-R, 70Ed ECM, 70Ed ECM-R, 70E+ & 70EN+ ERV 90H-V ECM, HRV 90H-V ECM, 60H Novo+, 90H Novo+, 190H Novo+ Vigör ERV, Vigör HRV Plus, 1000 HE, 2000 HE & 3000 HE, 1001 HRV & 2001 HRV, 1001 ERV & 2001 ERV HRV 60H, ERV 60H (Serial No. starts from Bx101702xxxxx) 60H+ ERV, 60H+ HRV (Serial No. starts from Lx341702xxxxx) 70E ERV, 70E ERV-R (Serial No. starts from TA3115xxxxxxx)
