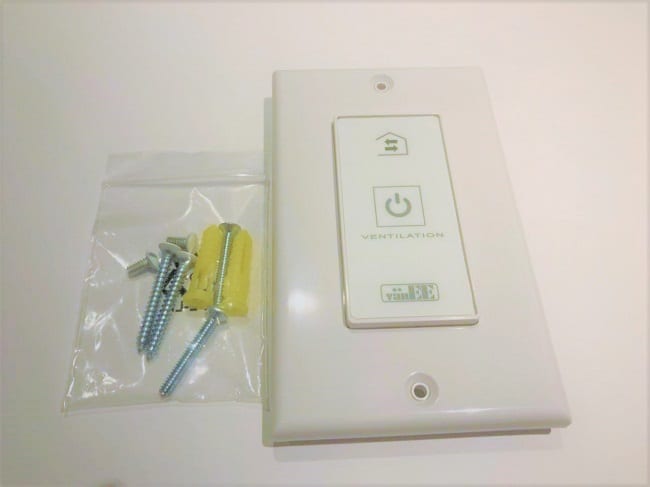

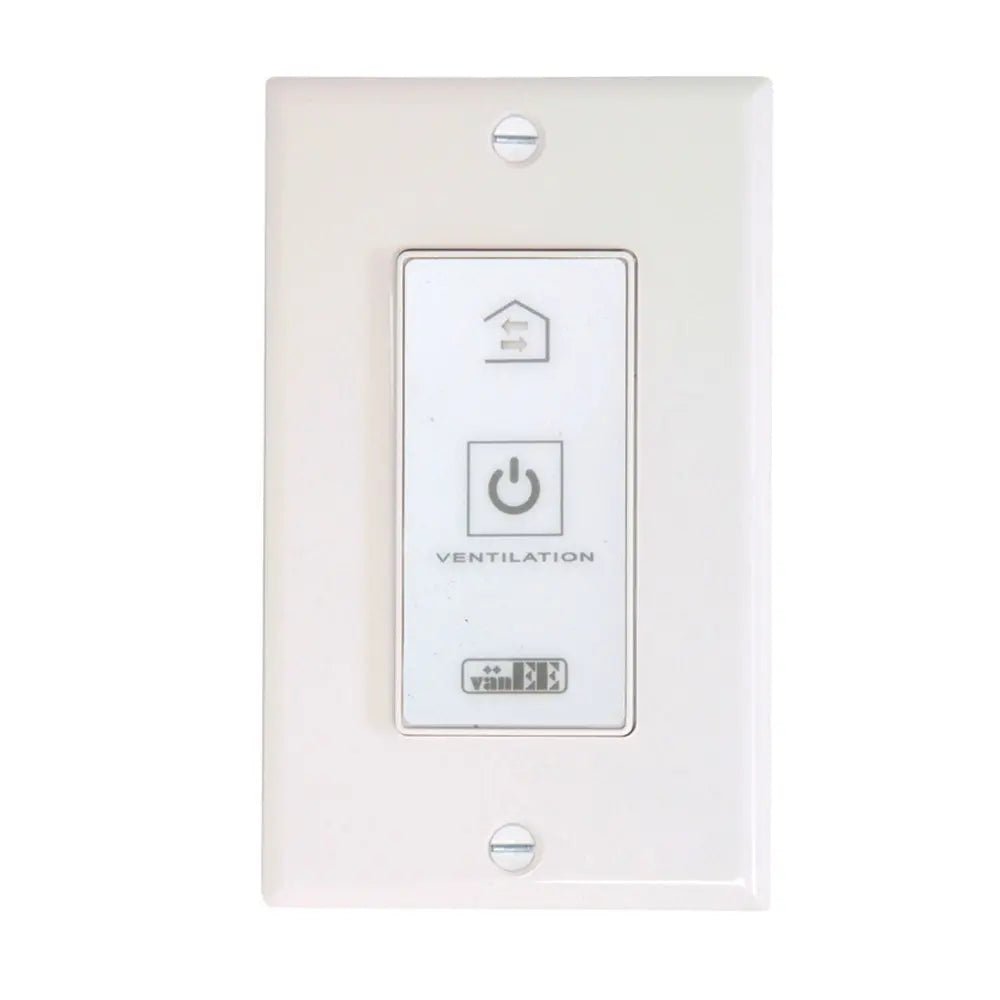

The vanEE 20 minute lighted push button is an auxiliary control which allows the unit to provide 20 minutes of high speed ventilation at the push of a button. This way your vanEE ventilation system expels the indoor stale air when activated. You can install up to five of them in your house. (e.g.: in bathroom, kitchen, laundry room, etc.)

vanEE 20 Minute Lighted Push Button Compatibility

Specifications

• Manufacturer: Venmar
• Description: 20-minute lighted push button  (3-wire)
• Model Compatibility: Please see Documents folder.
• Manufacturers’ Part Number: 1806110
• Manufacturers’ NEW Part Number: 41100

Note these new 41100 timers are not compatible with the old style 1806110 and 03701 timers.

You cannot mix and match the timers on the same unit.

They either all must be the old style, or all must be 41100

NOTE If you have the older terminal block, wiring is as follows:

B >>> GND

OL >>> OVR

OC >>> 12V

The new timers can be hooked up with 3 or 4 wires. The lighting will work differently if using only 3 wires. On the terminal block of the air exchanger, remove the wire plugged into 'I' and move it to 'B'. If there is already something plugged into 'B', you will have to splice that wire with the wire you just removed from 'I'. Once that is done, you will plug in as follow: B= GRND, OL= OVR, OC = 12V.
