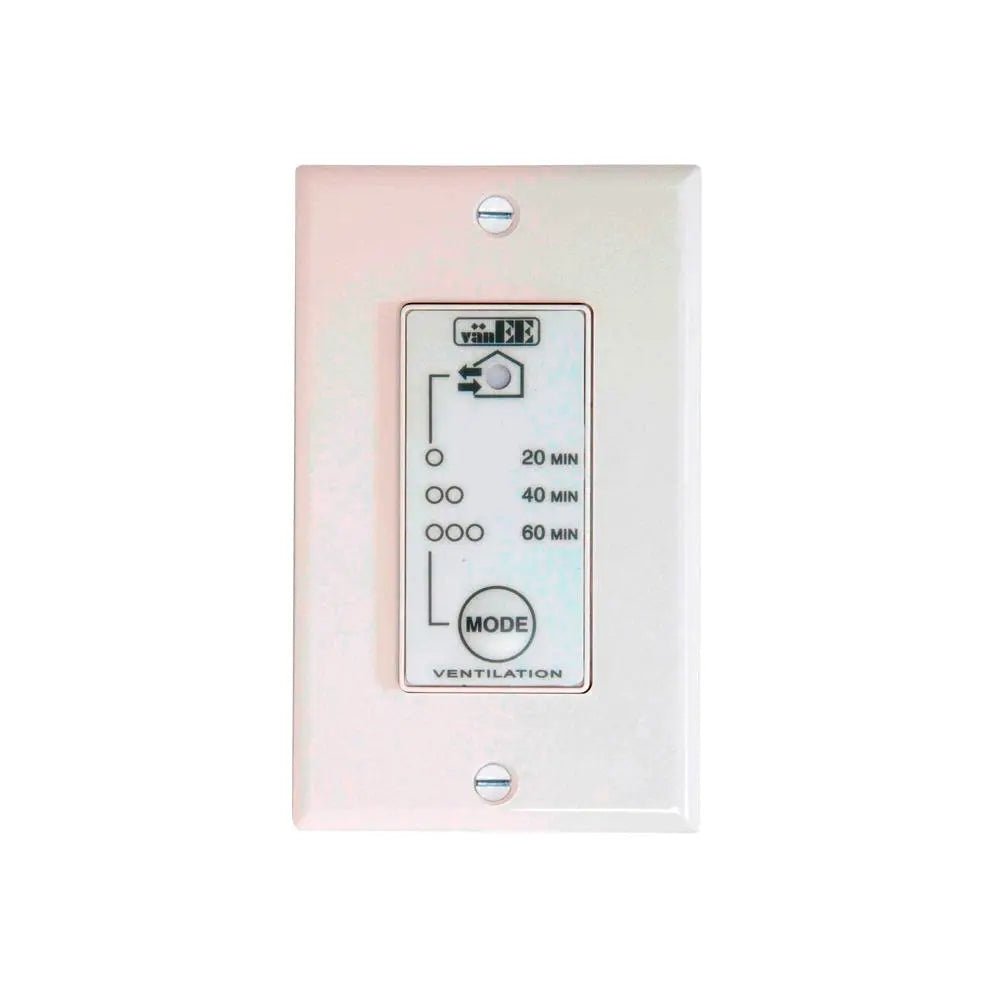

vanEE 20/40/60 Minute Push Button Part No. 03701
The vanEE 20/40/60 Minute Push Button Part No. 03701 allows the unit to turn on high speed during 20, 40 or 60 minutes to expel rapidly indoor stale air. Specially designed to meet the venilation needs of consumers, this digital and modern wall control is compatible with most vänEE air exchangers and offers exceptional value for money. It is easy to use with only 3 buttons and allows the user to select both manual modes or the automatic (dehumidistat) mode for his convenience. Within 2 seconds, press once for 20 minutes, twice for 40 minutes, or three times for 60-minute activation. Pressing another time to deactivate.
- Manufacturer: Venmar
- Description: vanEE 20/40/60 -Minute Lighted Push Button ( 3-wire)
- Venmar AVS equivalent: 20/40/60 -Minute Push Button Part No. 03364
-
New Part Number: Broan 41100 20/40/60 -Minute Push Button (4-wire)
- Manufacturers’ Part Number: 03701
- You cannot mix and match the timers on the same unit.
- They either all must be the old style, or all must be 41100
NOTE If you have the older Venmar terminal block, wiring is as follows:
- B >>> GND
- OL >>> OVR
- OC >>> 12V
The new timers can be hooked up with 3 or 4 wires. The lighting will work differently if using only 3 wires. On the terminal block of the air exchanger, remove the wire plugged into 'I' and move it to 'B'. If there is already something plugged into 'B', you will have to splice that wire with the wire you just removed from 'I'. Once that is done, you will plug in as follow: B= GRND, OL= OVR, OC = 12V.
