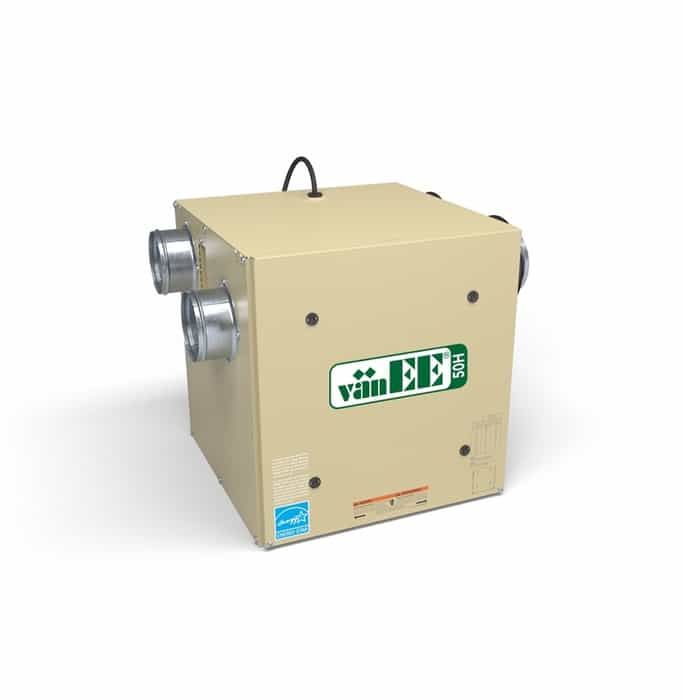

vanEE 50H 44602 (HRV)

Product NO. : 44602 (Side ports) , vanEE 50H

Residential Bronze Series

The vanEE 50H  HRV is offering more airflow than the 40H+ , it’s smaller brother, thanks to a higher performance motor. This makes it suitable for larger applications, while remaining easy to install because of it’s compact size and port configuration options. With its compact size and 4-inch vertical or horizontal ports, it can be installed in small spaces such as a closet or mechanical room above a hot water tank. The 50H has just one blower (patent pending) and is therefore quieter than any other similar HRV on the market.

vanEE 50H HRV Features

• At just 30 lb. (13.6 kg), it can be installed without opening the unit
• Features pressure taps, balancing dampers, integrated hooks and port straps to simplify installation
• Removable terminal block for quicker wall control connections
• ENERGY STAR® qualified

vanEE 50H Repairs and Maintenance

All parts of the 50H that could need maintenance can be removed in less than five minutes, allowing direct access for easy repairs. The PSC motor is permanently lubricated.

vanEE 50H Control

• This unit is very simple to operate. Once it is installed, press on its push button, located on the unit top left side, to select high speed, low speed or to stop it (the blower is off but will turn on in response to a wall control signal). The LED (located under the push button) will then show which mode the unit is in.
• For more convenience, this unit can also be controlled by an optional main control. For a complete list of optional main and auxiliary controls available, refer to the Wall Control Compatibility Chart on last pages of wall controls specification sheet, available at www.vanee.ca. For more details about controls, refer to their specification sheet and to the Main and auxiliary wall control user guide at www.vanee.ca.

Parts

• Round Metal Port 4" - SV18854
• Collar For Port 4" - SV19212
• Port 4" & Plastic Collar with Damper - SV18855
• Hardware kit HRV ERV - SV19213
• Filter - SV18883
• Core HRV - SV19199

vanEE 50H Warranty

The 50H is protected by a 5-year manufacturer's warranty on parts only. The heat recovery core is covered by a limited lifetime warranty, with the original proof of purchase. Model: 50H Part number side ports: 44602 Product Specification Sheet
