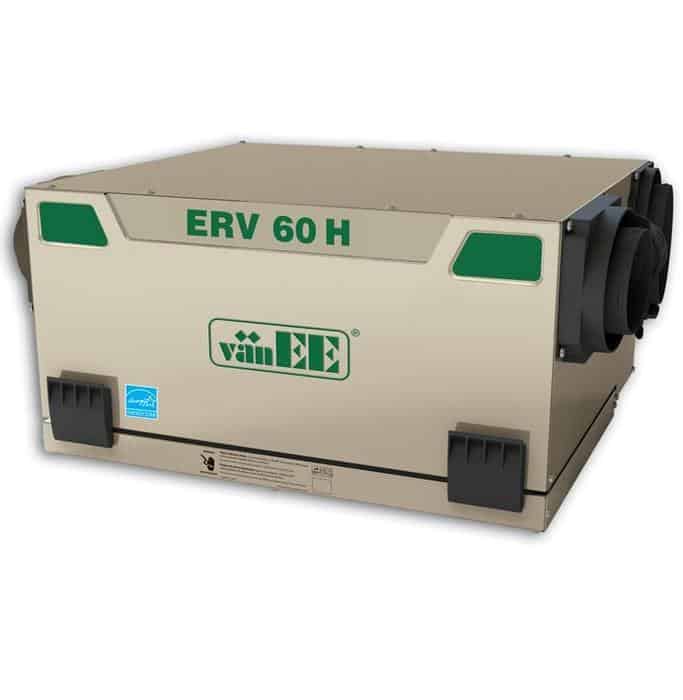

vanEE 60H ERV

Residential Bronze Series

Configured with factory built vertical or horizontal ports, the vänEE ERV 60H is the most versatile 100-cfm unit available on the market today. Among its exclusive features, this unit is equipped with integrated balancing and backdraft dampers in its exhaust to outside and fresh air supply ports. Its operation can be interlocked with an existing furnace without adding an extra relay. Also, for more convenience, its latches can be relocated on its front (as shown on unit picture). This compact, lightweight, and powerful unit is the ideal choice for small single-family homes, high rise residential building and other limited space applications.

vanEE 60H ERV Features

• Versatile horizontal or vertical port configuration
• Removable terminal block to ease auxiliary wall control connections
• Integrated pressure taps, if balancing required by building code
• Twin high-pressure blowers
• ENERGY STAR® qualified

vanEE 60H ERV Repairs and Maintenance

All parts of the vänEE ERV 60H that could need maintenance can be removed in less than 5 minutes, allowing direct access for easy repairs. The PSC motors are permanently lubricated. Finally, the removable electrical drawer with pull-out PCB assembly allows easy access for maintenance of major sub-components.

vanEE 60H ERV Warranty

The vänEE ERV 60H is protected by a 2-year warranty on parts only. The energy recovery core is covered by a 5-year warranty, with the original proof of purchase.   Specify on order which product you would like Model: ERV 60H Part number top ports: 41606 Part number side ports: 41604 Product Specification Sheet
