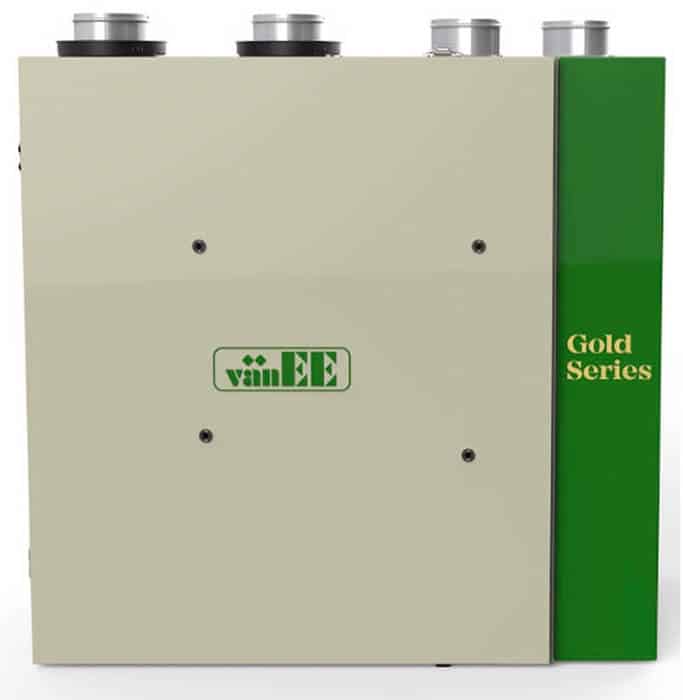

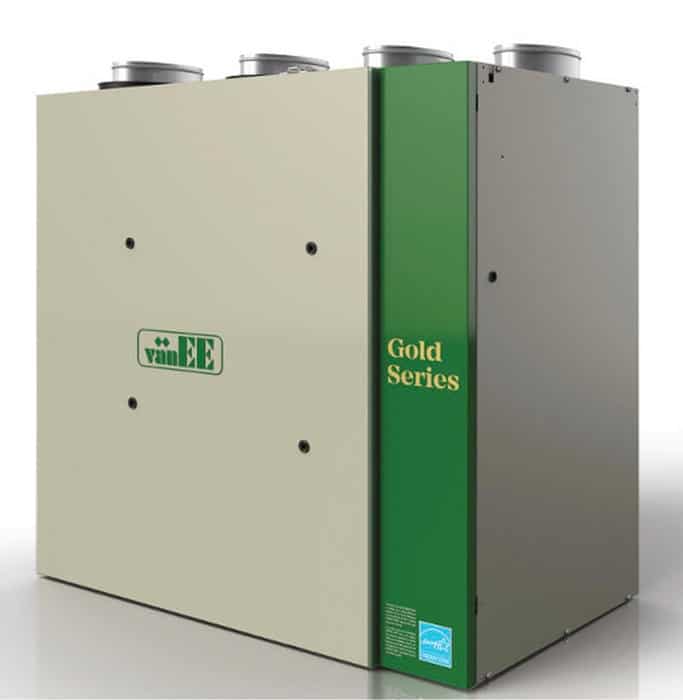

vanEE Gold Series G2400EE ERV (Top Ports) - 227 CFM

The whole home ventilation system is a centerpiece of today’s energy- efficient homes. vänEE introduces its new Gold Series that combines the best performance with the best energy efficiency to provide fresher, purer air in your home at a lower overall operating cost. That’s Pure Efficiency. The G2400E ECM is the perfect solution for mid to large size homes in need for the most energy-efficient ventilation solution.

• Up to 210 CFM at 0.4 in. w.g.
• High efficiency energy recovery core with a sensible recovery efficiency of 84% at 0°C (32°F) and 65% at -25°C (-13°F)
• German-made ECM* motors
• Minimal power consumption of 22W and 2.9 CFM/Watt at 64 CFM
• Merv 6 grade filters and optional HEPA filtration
• Electronic balancing and no balancing dampers
• Included wall mounting bracket *Electronically Commutated Motor.

Repairs and Maintenance

The G2400E ECM high output ECM motors are permanently lubricated. The electronic circuit board eliminates electromechanical parts, reducing repair time to a minimum.

 Control

The exclusive Gold-Touch wall control is the only compatible wall control with the new Gold Series. At installation, balance the unit with the help of the Gold-Touch main control to perform electronic balancing, without balancing dampers! For more details about the control, refer to the User Guide - Main and auxiliary wall controls available at www.vanee.ca.

Warranty

The G2400E ECM is protected by a 5-year warranty on parts only, except for the energy recovery core, which is covered by a 10-year warranty, with the original proof of purchase.
