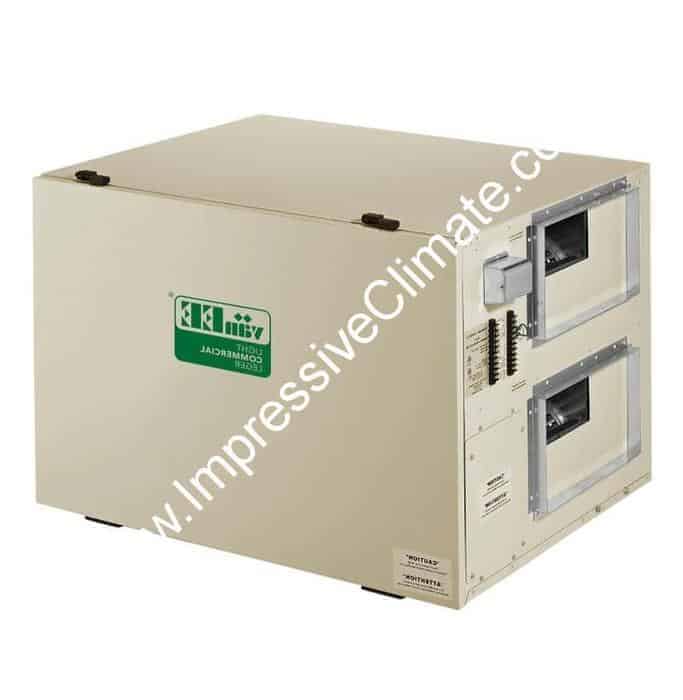

vanEE V12LC Commercial ERV - LC Series

Part# V12LC, vanEE Commercial ERV.

FOR LIGHT COMMERCIAL APPLICATIONS
High CFM ventilation for small business owners concerned about
indoor air quality (excess moisture, smoke, odors and cleanliness).
Suitable for installation above a suspended ceiling, mechanical room
or suspended from a ceiling, this model delivers year-round comfort
and sensible heat recovery with virtually no cross leakage. On this unit,
the heat exchange efficiency can reach up to 60%.
• Only 24.5” high for false ceiling installation
• Defrost system
• Two-speed control
• Low voltage remote switch
REPAIRS AND MAINTENANCE
All parts of the 12LC and V12LC, such as the large access door and the
entire motor sub-assembly, can be removed for ease of maintenance.
Furthermore, the electronic circuit board reduces electro-mechanical
parts, minimizing repair time to a minimum.

FOR LIGHT COMMERCIAL APPLICATIONS

High CFM ventilation for small business owners concerned about indoor air quality (excess moisture, smoke, odors and cleanliness).

Suitable for installation above a suspended ceiling, mechanical room or suspended from a ceiling, this model delivers year-round comfort and sensible heat recovery with virtually no cross leakage. On this unit, the heat exchange efficiency can reach up to 60%.

Recovery type	ERV
Exchange rate (CFM)	890-1170
Position of ports	Sides
Port diameter	20
Comptability of Wall Controls	Basic

Filter	Polymerised paper
Warranty on parts (years)	2
Warranty on core or thermal wheel (years)	5
ENERGY STAR © qualified	No
ARI Certified	Yes

Downloads

• Installation Manual
• User Guide
• Product line-up
• Brochure
• Specification Sheet
