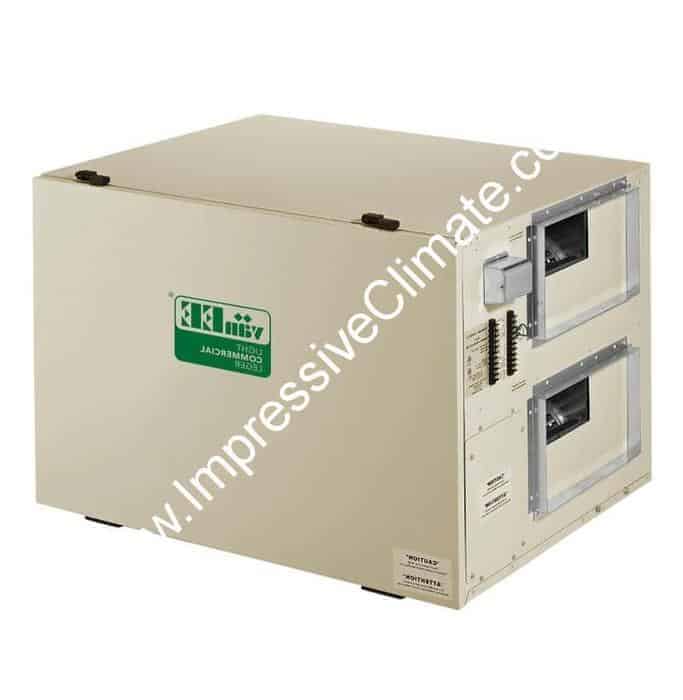

vanEE V6LC Commercial ERV - LC Series

Part# V6LC, vanEE Commercial ERV.

FOR LIGHT COMMERCIAL APPLICATIONS
High CFM ventilation for small business owners concerned about
indoor air quality (excess moisture, smoke, odors and cleanliness).
Suitable for installation above a suspended ceiling, mechanical room
or suspended from a ceiling, this model delivers year-round comfort
and sensible heat recovery with virtually no cross leakage. On this unit,
the heat exchange efficiency can reach up to 66%.

• Only 24.5” high for false ceiling installation
•  Defrost system
• Two-speed control
• Low voltage remote switch

REPAIRS AND MAINTENANCE
All parts of the 6LC and V6LC, such as the large access door and the
entire motor sub-assembly, can be removed for ease of maintenance.
Furthermore,the electronic circuit board reduces electro-mechanical
parts, minimizing repair time.

FOR LIGHT COMMERCIAL APPLICATIONS OR VERY LARGE HOUSES

High CFM ventilation for small business owners concerned about indoor air quality (excess moisture, smoke, odors and cleanliness).

Suitable for installation above a suspended ceiling, mechanical room or suspended from a ceiling, this model delivers year-round comfort and sensible heat recovery with virtually no cross leakage. On this unit, the heat exchange efficiency can reach up to 66%.

Recovery type	ERV
Exchange rate (CFM)	560-690
Position of ports	Sides
Port diameter	8
Comptability of Wall Controls	Basic

Filter	Polymerised paper
Warranty on parts (years)	2
Warranty on core or thermal wheel (years)	5
ENERGY STAR © qualified	No
ARI Certified	Yes
