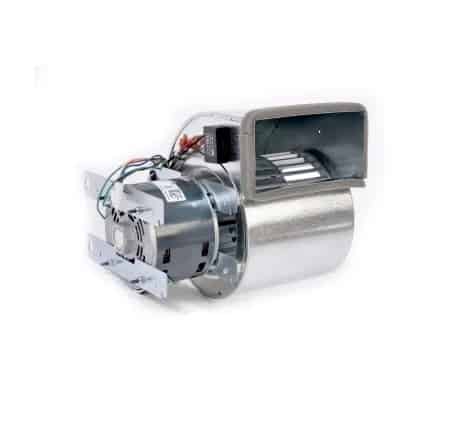

Venmar 1808144 Blower Assembly for 6LC Air Exchangers

Product NO. : 1808144 Venmar Blower Assembly Fits the following Models: 6LC, V6LC-12LC, V12LC

• • Manufacturer: Venmar
• • Model: 1808144
• • All duct connections: 8” x 14”
• • Housing: 20 ga. pre-painted steel
• • Mounting: Reinforced rubber straps
• • Drains: 3⁄4” fittings
• • Filters: 4 reticulated washable foam filters (20 ppi) and 2 disposable MERV 8 filters (optional) part no. 63342.
• • Insulation: 3⁄4” foil faced and 1” acoustic fiberglass wool
• • Supply & Exhaust Blower motors:
• - Motor type: PSC motors with sealed sleeved bearings, 3 speeds (2 available to customer)
• - R.P.M.: 1625 - H.P.: 1/4
• - Fan type: Direct drive centrifugal blower 71⁄8” x 6”
• - Housing: Galvanised steel
• • Fan Speed control:
• - Low, medium & high speed
• - 2 speeds available to user
• - Low or medium speed is selected at the time of installation.
• • Unit electrical characteristics:
