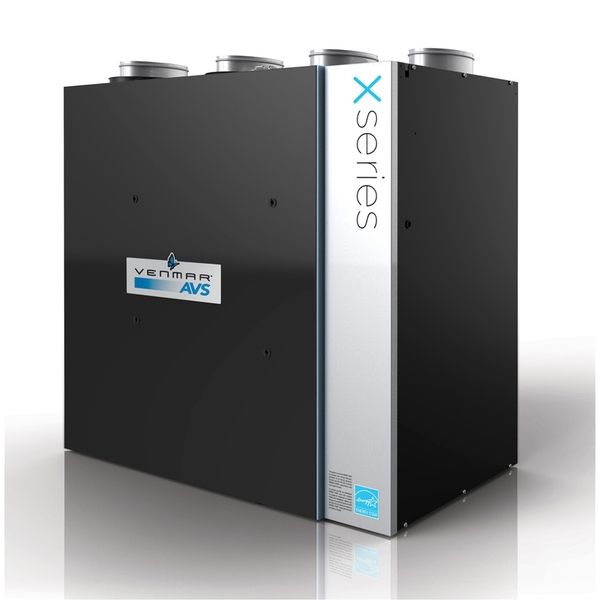

VENMAR AVS – X SERIES X30HRV ECM - NEW

Product NO. : X30HRV ECM THE FUTURE OF FRESH AIR The whole home ventilation system is a centerpiece of today's energy-efficient homes. Venmar AVS introduces its new X Series that combines the best performance with the best energy efficiency to provide fresher, purer air in your home at a lower overall operating cost. That's Pure Efficiency.

• Up to 252 CFM at 0.4 in. w.g.
• High efficiency heat recovery core with a sensible recovery efficiency of 75% at 0°C and 66% at -25°C.
• Equipped with 2 ECM motors.
• Minimal power consumption of 18W and CFM/Watt of 3.6 at 64 CFM.
• MERV 6 filtration and optional HEPA filtration.
• Electronic balancing and no balancing dampers
• Can comply with highest requirements of efficient home programs such as ENERGY STAR®* and Novoclimat 2.0
• The X30HRV ECM is protected by a 5-year warranty on parts only, except for the heat recovery core, which is covered by a limited lifetime warranty, with the original proof of purchase.


This product earned the ENERGY STAR® by meeting strict energy efficiency guidelines set by Natural Resources Canada and the US EPA. It meets ENERGY STAR® requirements only when used in Canada.

What is an Air Exchanger?

An Air Exchanger otherwise known as an HRV (Heat Recovery Ventilator) or an ERV (Energy Recovery Ventilator), is a whole-house mechanical ventilation system. It is typically connected to your existing furnace return duct and contains two high-efficiency motors. The supply motor draws fresh air in from the outside while the exhaust motor pushes stale indoor contaminated air outside. The two airstreams never mix when passing through the HRV or ERV cores.

Benefits of Air Exchangers:

• Bring a continuous supply of fresh outside air into your
• Exhaust environmental contaminants for improved indoor air quality.
• Save energy in the winter by recovering heat from exhaust air.
• Save energy in the summer by recovering cool indoor air from exhaust air.
• Help prevent mould and mildew.
• Help minimize odors and cooking residue.
• Can reduce harmful Radon Gas levels where active soil depressurization is unlikely to be successful.
