Venmar

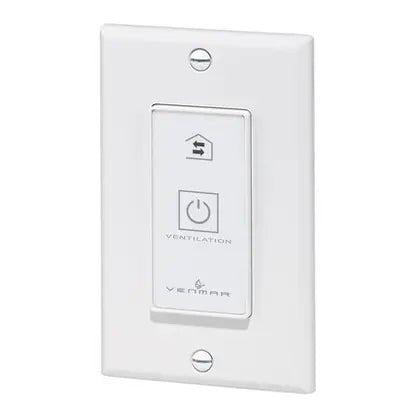

Venmar Lighted Push Button 12030 (3-PACK)
Venmar Lighted Push Button 12030 (3-PACK)
Regular price
$228.00 CAD
Regular price
Sale price
$228.00 CAD
Unit price
/
per
Shipping calculated at checkout.
*DISCONTINUED*
- Manufacturer: Venmar
- Description: Venmar 20-Minute Lighted Push Button 3-wire (3-Pack)
- VanEE equivalent: 20-Minute Push Button Part No. 1806110
- Compatibility: Please see Documents folder.
- Manufacturers’ Part Number: 12030
- Manufacturers’ NEW Part Number: 41100
Note these new 41100 timers are not compatible with the old style 1806110, 03701 or 12030 (3-WIRES) timers.
NOTE If you have the older Venmar terminal block, wiring is as follows:
- You cannot mix and match the timers on the same unit.
- They either all must be the old style, or all must be 41100
NOTE If you have the older Venmar terminal block, wiring is as follows:
- B >>> GND
- OL >>> OVR
- OC >>> 12V
The new timers can be hooked up with 3 or 4 wires. The lighting will work differently if using only 3 wires. On the terminal block of the air exchanger, remove the wire plugged into 'I' and move it to 'B'. If there is already something plugged into 'B', you will have to splice that wire with the wire you just removed from 'I'. Once that is done, you will plug in as follow: B= GRND, OL= OVR, OC = 12V.
