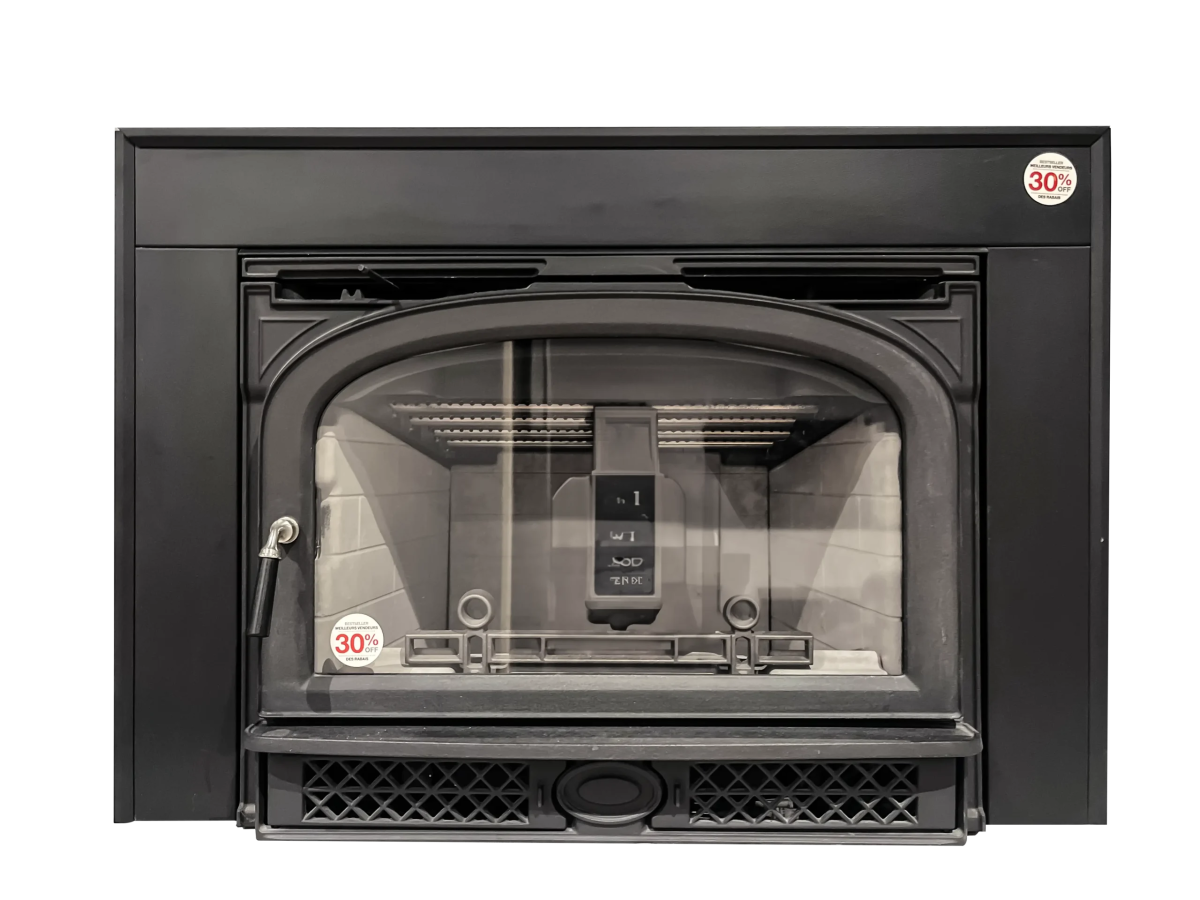

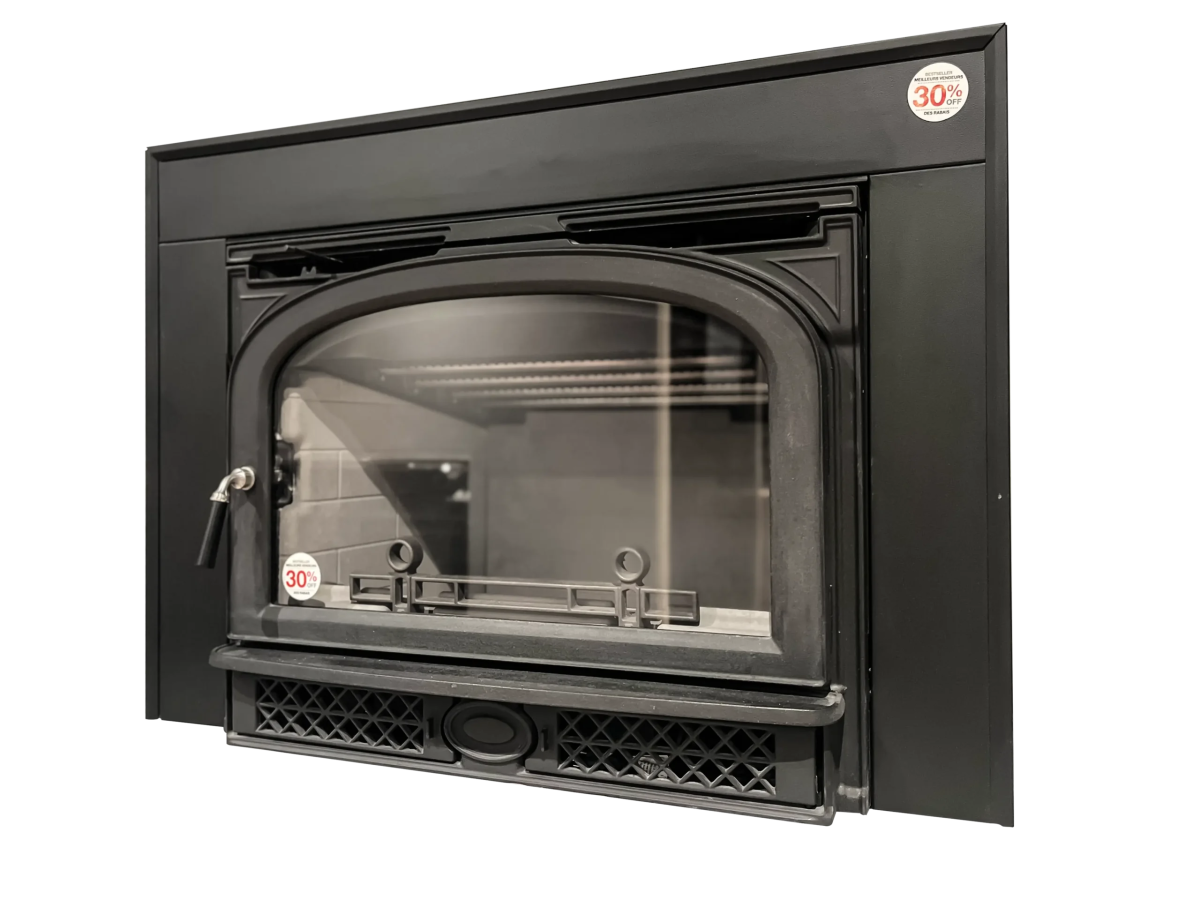

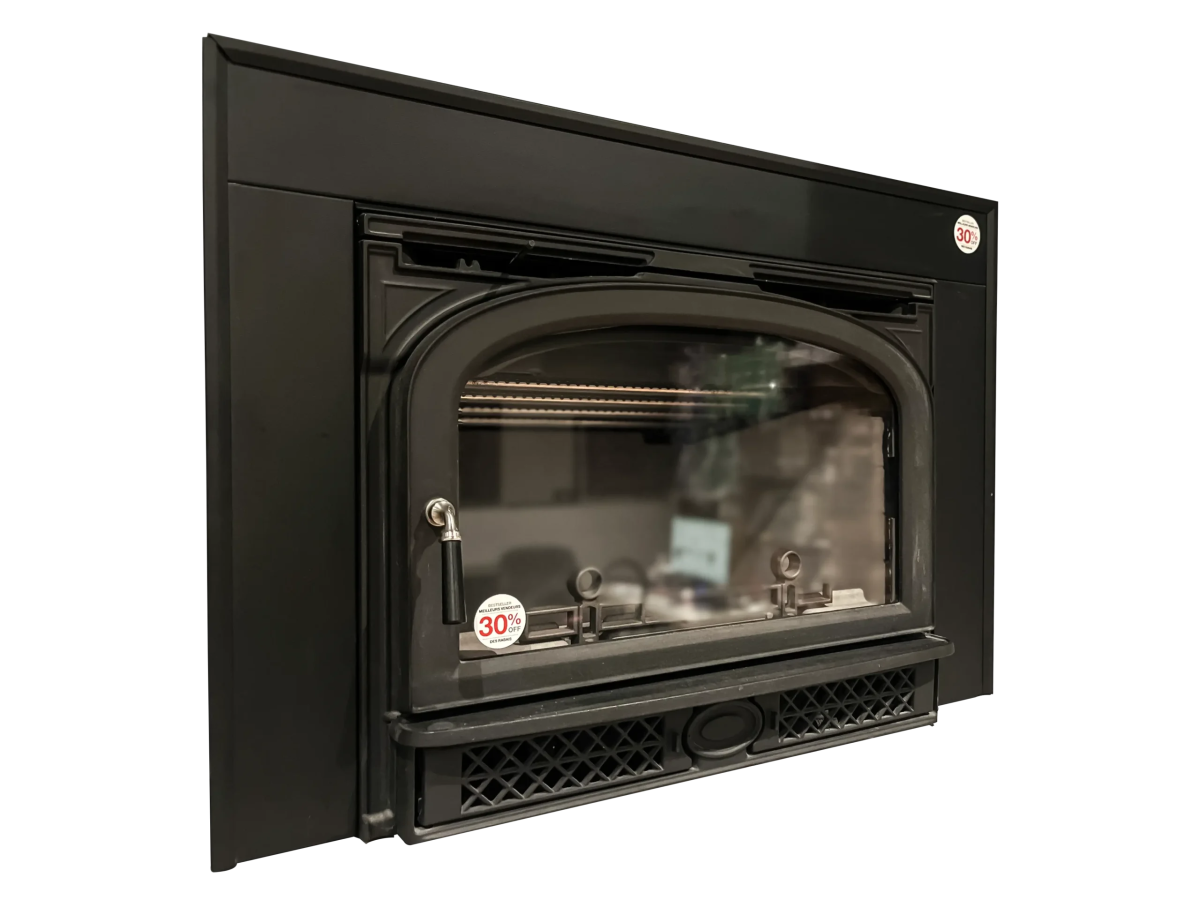

Montpelier Vermont Casting (Wood Burning Fireplace Insert)

The most durable, efficient wood inserts available

• The best material for a wood heating appliance is quality cast iron from our Vermont foundry. Unlike the mild steel used in cheaper competitive products, cast iron doesn’t expand and contract each time your insert is fired up or cooled down. Consequently, your Merrimack or Montpelier insert remains durable and beautiful, providing reliable, efficient heat for your family for generations to come.
• Gasketed construction ensures a long-lasting, universal seal, preventing leaks, extending the life of the unit, and improving heating efficiency.
• The quiet, high volume, heat-activated, variable-speed circulation fan is included with your wood-burning insert. The fan improves room air circulation and can be easily accessed from the front of the insert for cleaning. The power cord can be directed to either side for a flexible installation.
• A full refractory lining provides more even heat and extends the life of the firebox, compared to the inferior firebrick found on competitive models.
• No power? No problem! Stay warm even during power outages. Merrimack Features
• 350 sq. in of viewing area
• Burn time up to 10 hours
• Log length 20"
• Two optional surrounds in Classic Black — the Northfield cast iron for a more traditional hearth look, and the steel Exeter for a clean, contemporary finish Merrimack is shown with Exeter steel surround in Classic Black.
• Installation Made Easy — Rear wheels allow the unit to slide into place easily.
• The 6” flue collar is detachable, secured from the outside or inside the firebox, and is adjustable for vertical or 30-degree offset installations.

Specification

Manufacturer	Vermont Castings Stoves
Model Name	VERMONT CASTINGS Montpelier
Fuel Type	Wood
Type	N/A
BTUs	40,000
Burn Time (Hours)	10hrs
Room Size	1,000 - 2,000 sq. ft.
Unit Dimensions	30-1/2" (W) x 22-1/4" (H) x 17-1/4" (D)
Glass Size (Sq. In.)	@22" x 14"
Hopper Size	N/A
Firebox Size (Cu. Ft.)	N/A
Log Size	18-22"
Features	VERMONT CASTINGS WOOD BURNING MONTPELIER INSERT

Documents

montpeliermanual_17 vc_montpelier_wood_insert_spec_sheet montpelier-brochure
